M3
CONDENSING WATER BOILER
41
34-1115 12/15

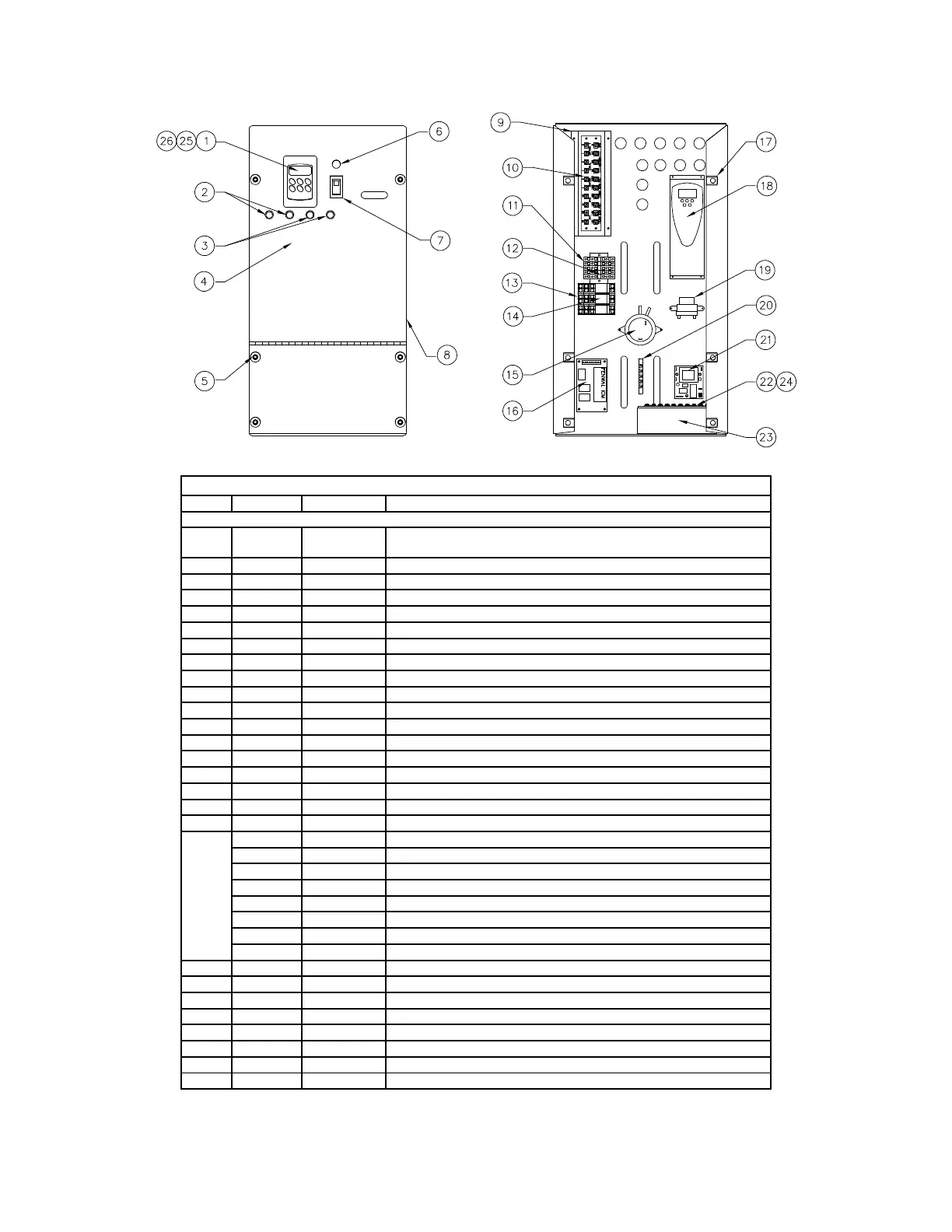

15.2 Control Panel Enclosure Component Layout and Replacement PN’s
LIST OF MATERIALS
ITEM QTY PART NO. DESCRIPTION
CONTROL PANEL COMPONENTS
1 1
see next
page
TempTrac Control
2 2 70573 Reset / Test Switch N.C. Momentary
3 2 122342 Indicating Light
4 1 124016 Main Decal
5 4 121323 Thumb Screw 1/4-20
6 1 5613 Fuse Holder
1 76267 Fuse
7 1 70565 On / Off Switch
8 1 121250 Metal Face Plate
9 1 121705 Board Mount
10 1 122346 Terminal Board
11 6 122319 Terminal Block
12 4 122320 Terminal Block Jumper
13 2 122317 Relay Socket
14 2 124344 Relay DPDT
15 1 121444 Air Proving Switch
16 1 121945 Flame Control (HSI)
17 1 121433 Clip Nut 1/4-20
18
Blower VFD
1 125235 Blower VFD for 399 MBtu/H
1 125234 Blower VFD for 500 MBtu/H
1 125233 Blower VFD for 600 MBtu/H
1 125232 Blower VFD for 650 MBtu/H
1 125231 Blower VFD for 700 MBtu/H
1 124531 Blower VFD for 750 MBtu/H
1 125230 Blower VFD for 800 MBtu/H
19 1 122318 120V To 24V Transformer
20 1 122321 Ground Bar
21 1 113915 Electronic Low Water Cutoff
22 1 122595 Terminal Board Field Access
23 1 121749 Terminal Board Mount
24 2 102467 Jumper, Elec-Tron #ESJ-145
25 1 104195 Thermostat Probe Dixell 5”
26 1 102163 Thermostat Probe Dixell 25”
To Next Page
