Robalo 220 - Robalo 300

3-15
13
1 5
6
7
9
8
4
3
12
15 16
14
(C)(A)
(B)
(A)
(A)
(A)
(B)
10
11
2
4
4
1. Aft. Bilge Pump and Float
2. Fwd. Bilge Pump and Float
3. Battery Selector Switch
4. Batteries (3 ea)
5. Livewell/Raw Water Seacock
6. Sea Strainer
7. Livewell Pump Aft.
8. Livewell Pump Fwd.
9. Raw Water Washdown Pump
10. Steering Helm
11. Fuel Tank
12. Sump Pump
13. Water Tank
14. Water Pump & Filter
15. Vacuflush Holding Tank
16. Vacuflush Overboard Discharge
Pump (optional)
Robalo 300
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye

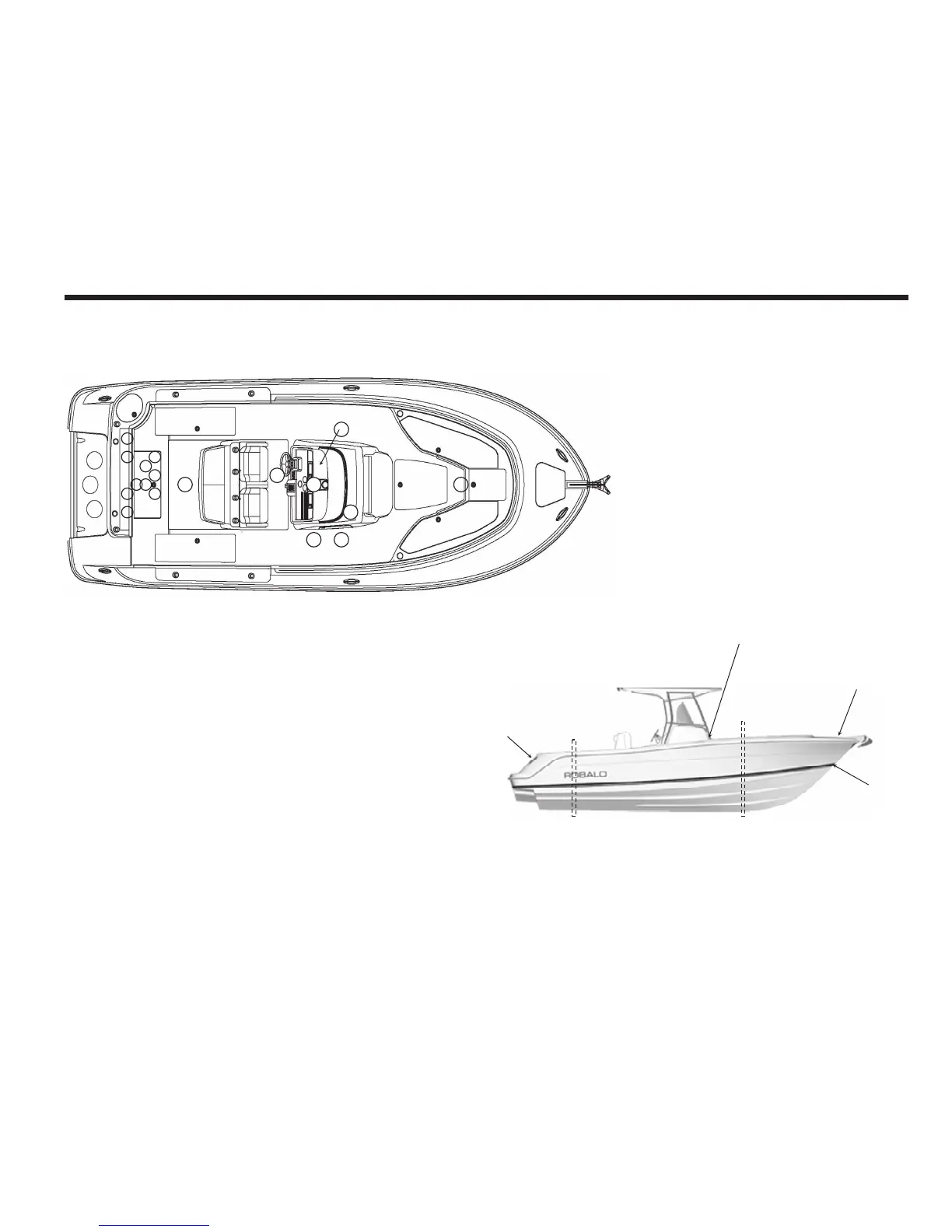

Figure 3.8 Robalo 300
TYPICAL SYSTEMS LAYOUT
