Robalo 220 - Robalo 265

3-17
(C)(A)
(B)
(B)
(A)
(A)
(A)
11
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
1. Aft. Bilge Pump and Float
2. Fwd. Bilge Pump and Float
3. Battery Selector Switch
4. Batteries (2 ea)
5. Livewell/Raw Water Seacock
6. Sea Strainer
7. Livewell Pump
8. Raw Water Washdown Pump
9. Sump Pump
10. Steering Helm
11. Fuel Tank
12. Air Conditioner (optional)
13. Air Conditioner Sea Strainer
(optional)
14. Air Conditioner Seacock
(optional)
15. Air Conditioner Sea Pump
(optional)
16. Head Sink
17. Water Tank
18. Water Pump & Filter
19. Vacuflush Holding Tank
20. Vacuflush Overboard Discharge
Pump (optional)
Robalo 265
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye

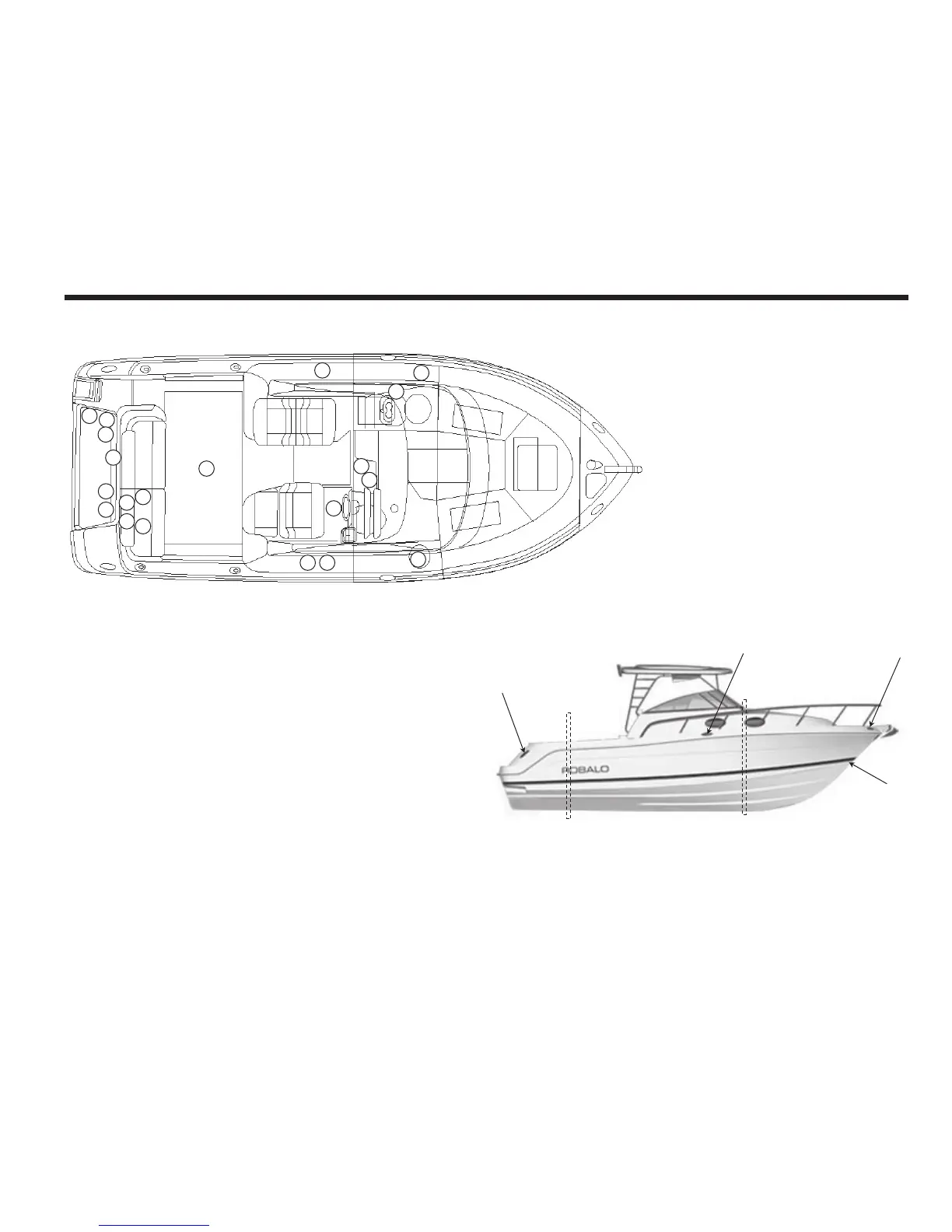

Figure 3.10 Robalo 265
TYPICAL SYSTEMS LAYOUT
