Robalo 220 - Robalo 265 “SF”

3-16
(C)(A)
(B)
(B)
(A)
(A)
(A)
11
1 2
3
4
5
6
7
8
9
10
12
13
14
15
16
1718
1. Aft. Bilge Pump and Float
2. Fwd. Bilge Pump and Float
3. Battery Selector Switch
4. Batteries (2 ea)
5. Livewell/Raw Water Seacock/
Sea Strainer
6. Livewell Pump/Raw Water
Washdown Pump
7. Sump Pump
8. Steering Helm
9. Fuel Tank
10. Air Conditioner (optional)
11. Air conditioner Sea Strainer
(optional)
12. Air Conditioner Seacock
(optional)
13. Air Conditioner Sea Pump
(optional)
14. Head Sink
15. Water Tank
16. Water Pump & Filter
17. Vacuflush Holding Tank
18. Vacuflush Overboard Discharge
Pump (optional)
Robalo 265 “SF”
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye

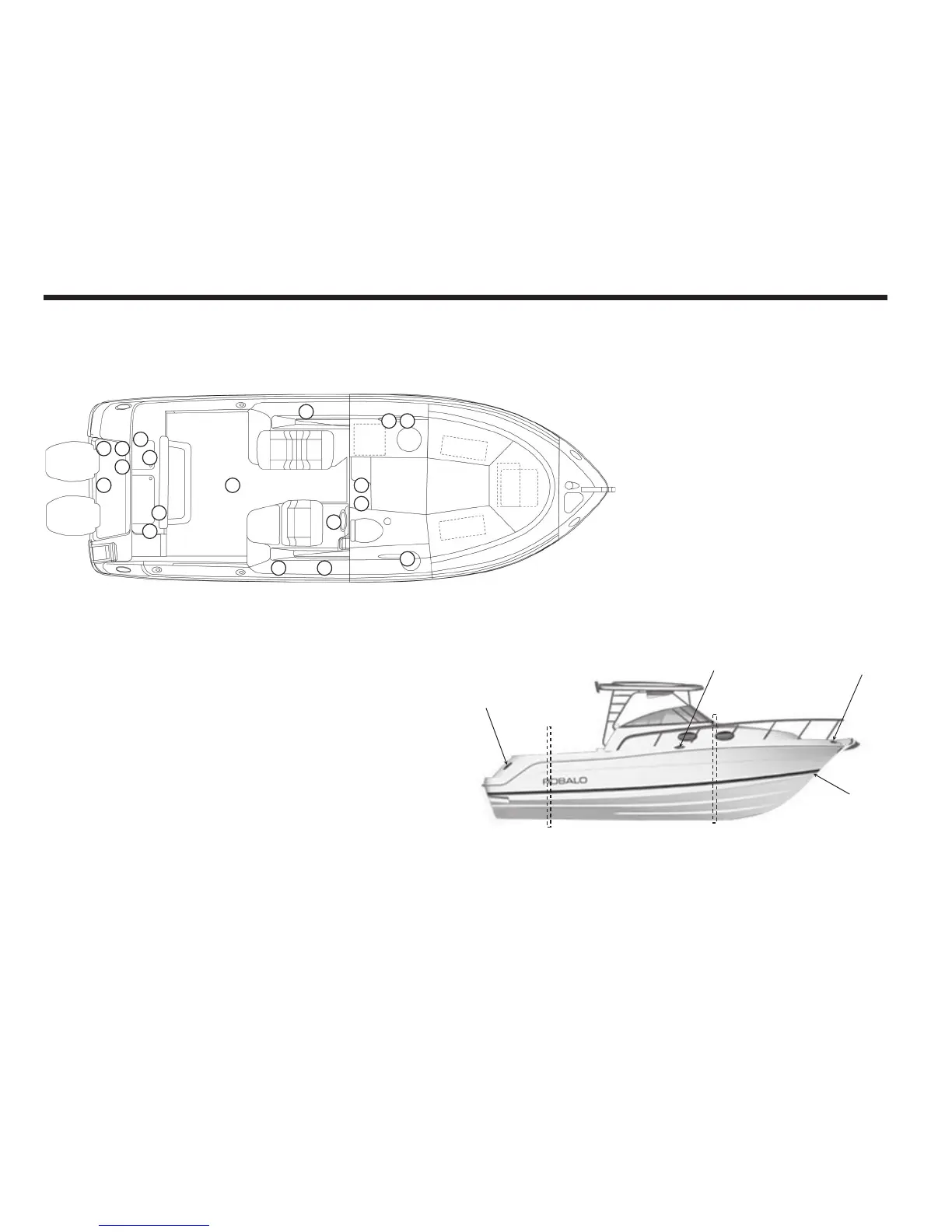

Figure 3.9 Robalo 265 “SF”
TYPICAL SYSTEMS LAYOUT
