Robalo 220 - Robalo 245

3-20
(C)(A)
(B)
(B)
(A)
(A)
(A)
1
2
3
4
5
4
6
7
8
9
10
11
12
13
1. Aft. Bilge Pump and Float
2. Fwd. Bilge Pump and Float
3. Battery Selector Switch
4. Batteries (2 ea)
5. Livewell/Raw Water Seacock
Sea Strainer
6. Livewell Pump
Raw Water Washdown Pump
7. Steering Helm
8. Fuel Tank
9. Water Tank
10. Water Pump & Filter
Livewell Pump, Secondary
System (optional)
11. Vacuflush Holding Tank
12. Vacuflush Overboard Discharge
Pump (optional)
13. Shower Sump
Robalo 245
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye

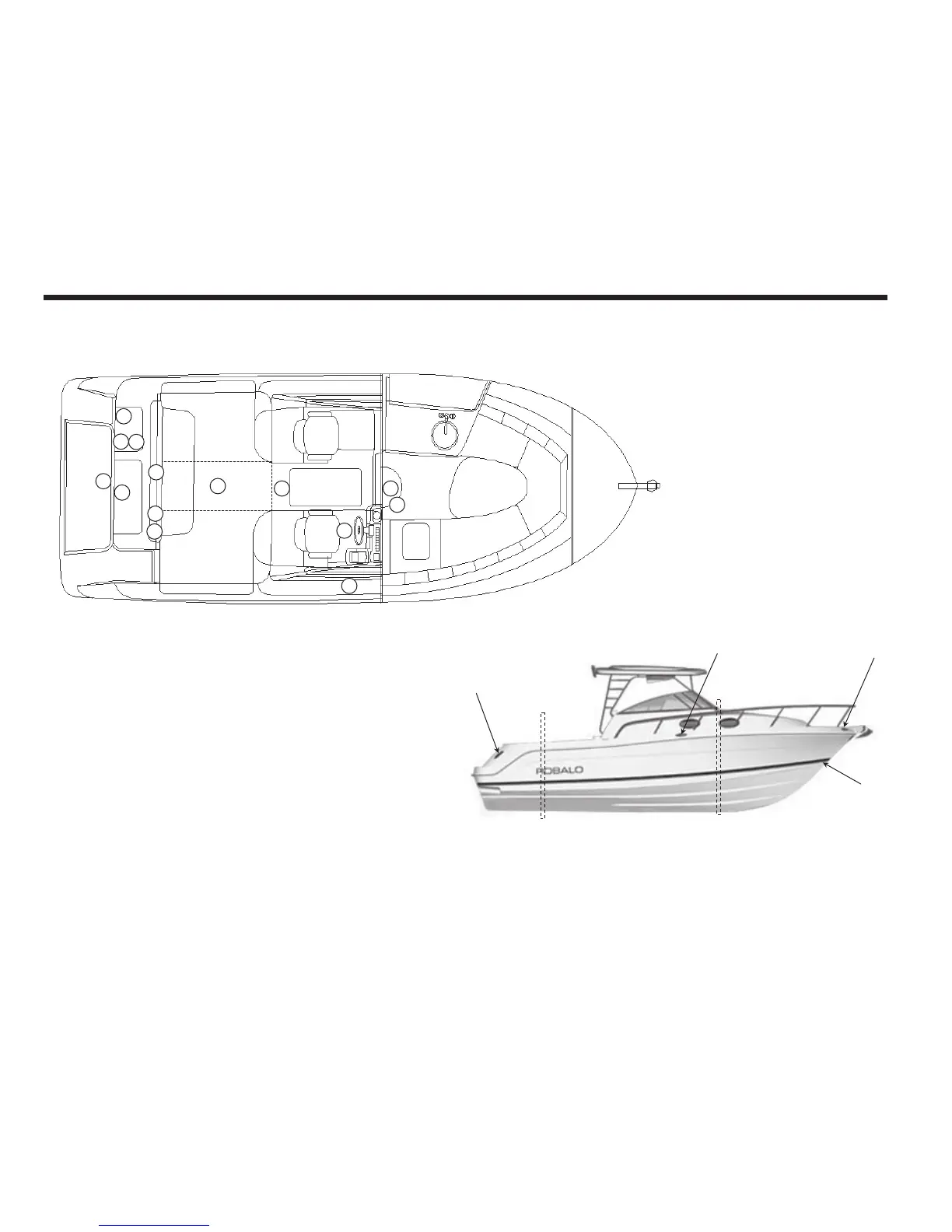

Figure 3.13 Robalo 245
TYPICAL SYSTEMS LAYOUT
