Robalo 220 - Robalo 240

3-21
(A)
(A)
(A)
(B)
(B)
(C)(A)
1 2
3
4
4
5
6
7
89
10
11
12
13
14
4
1. Aft. Bilge Pump and Float
2. Fwd. Bilge Pump and Float
3. Battery Selector Switch
4. Batteries (2 ea)
5. Livewell/Raw Water Seacock
Sea Strainer
6. Livewell Pump
Raw Water Washdown Pump
7. Steering Helm
8. Fuel Tank
9. Water Tank
10. Water Pump & Filter
11. Vacuflush Holding Tank
12. Vacuflush Overboard Discharge
Pump (optional)
13. Shower Sump
14. Fish Box Discharge Pump
Robalo 240
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye

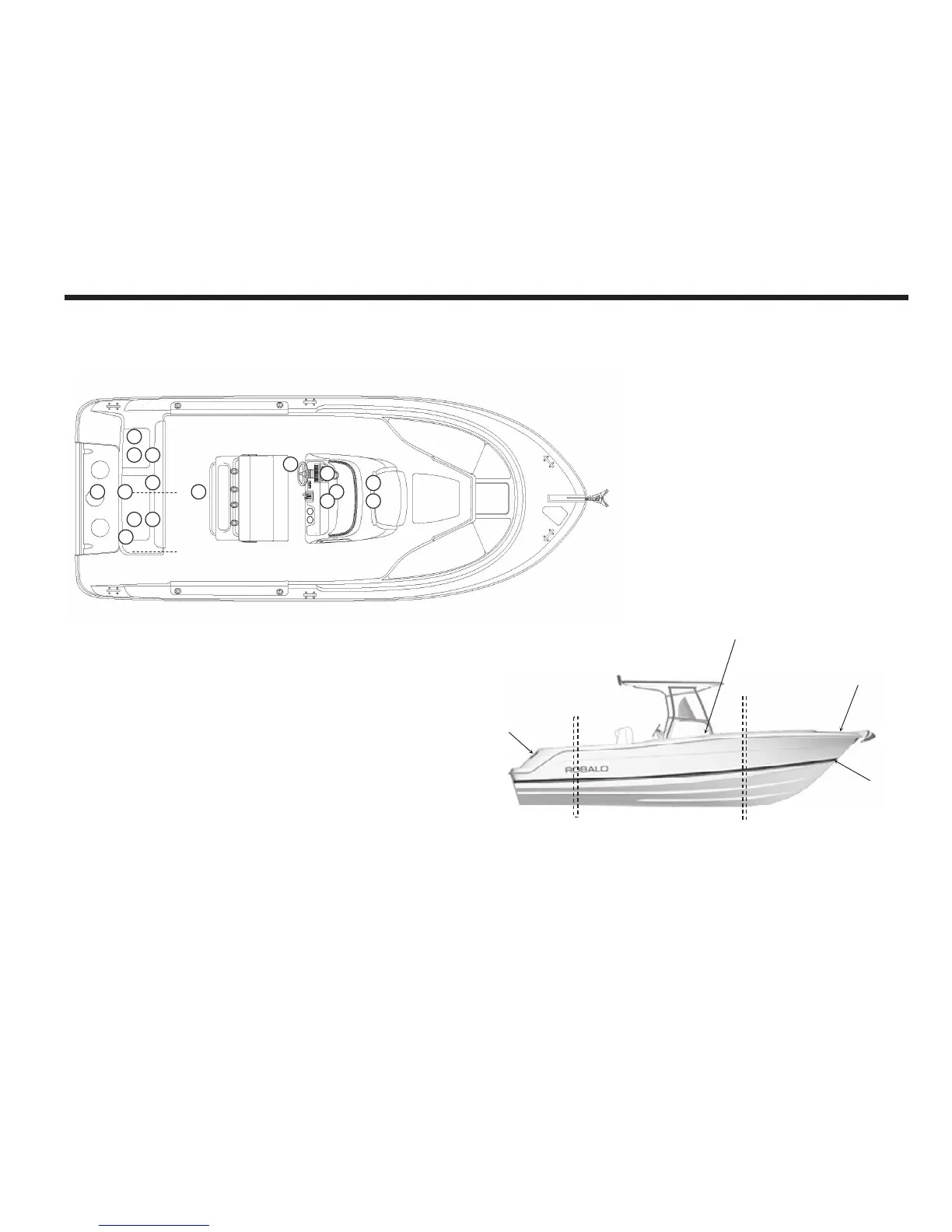

Figure 3.14 Robalo 240
TYPICAL SYSTEMS LAYOUT
