Robalo 220 - Robalo 247

3-19
(C)(A)
(B)
(B)
(A)
(A)
(A)
1
2
3
4
4
5 6
78
9
10
11
12
13
14
15
1. Aft. Bilge Pump and Float
2. Fwd. Bilge Pump and Float
3. Battery Selector Switch
4. Batteries (2 ea)
5. Livewell/Raw Water Seacock
(optional)
6. Sea Strainer (optional)
7. Livewell Pump (optional)
8. Raw Water Washdown Pump
(optional)
9. Steering Helm
10. Fuel Tank
11. Water Tank
12. Water Pump & Filter
13. Vacuflush Holding Tank (optional)
14. Vacuflush Overboard Discharge
Pump (optional)
15. Power Steering Pump (optional)
Robalo 247
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye

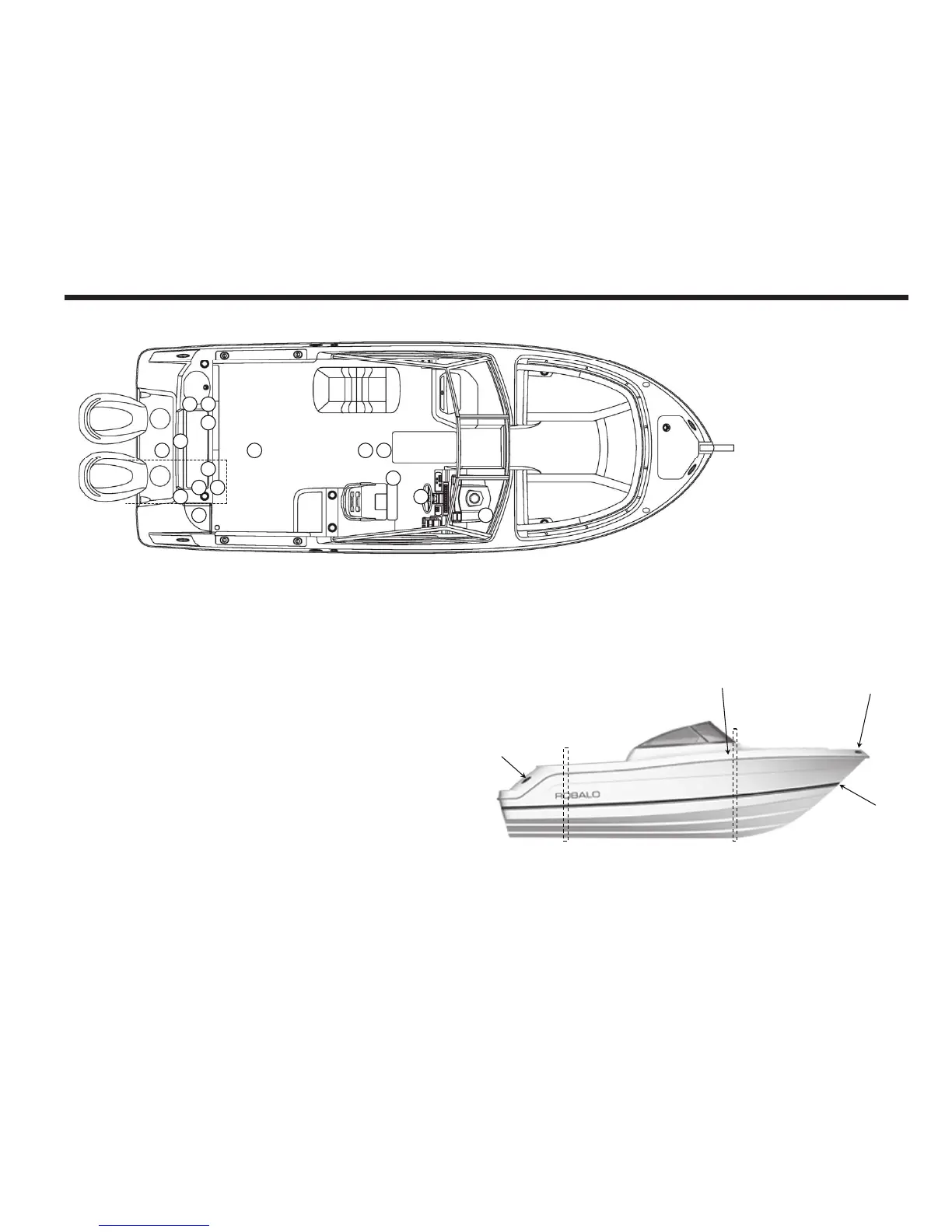

Figure 3.12 Robalo 247
TYPICAL SYSTEMS LAYOUT
