2.1 CONNECTIONS
3. SPECIFICATION
Operating voltage: 11 V ... 15 V DC, (12 V lead-acid battery, or a high-
performance mains PSU; do not use a car battery charger!
Cell count: 1 ... 30 NC / NiMH cells
1 ... 12 Lithium-Polymer cells,
1 ... 6 and 12 Lead-acid cells Charge current:
0.1 ... 10 A (max. 180 Watts)
Discharge current: 0.1 ... 5 A (max. 50 Watts)
Final discharge voltage: 0.1 ... 1.1 V per cell (NC / NiMH batteries)
2.5 ... 3.7 V per cell (LiPo batteries)
1.8 V per cell (Lead-acid batteries)
Trickle charge: 0 ... 500 mA, variable in 50 mA increments for NC / NiMH
batteries, C/20 with BID chip
Charge termination:
NC / NiMH batteries: Automatic, digital Delta-Peak system
Cut-off sensitivity: 5 ... 25 mV per cell, NC batteries
3 ... 15 mV per cell, NiMH batteries or ZERO peakLiPo /
Lead-acid batteries: Automatic, using CC-CV process
Temperature cut-off: 10 ... 65°C, variable in 1°C increments
Capacity monitoring: 10 ... 150%, variable in 10% increments (NC / NiMH batteries)
10 ... 120%, variable in 10% increments (LiPo / Lead-acid batteries)
Output ‘OUT 2’: Charging of 1 - 8 NiCd / NiMH cells (automatic cell count detection)
Charge current: 0.1 - 2.0 A in 0.1 A increments, optionally manual or automatic, with
Delta-Peak cut-of
f
Dimensions:
155 x 143 x 56 mmW
eight:
ca. 580 g
Operating Instructions
POWER PEAK Infinity 3
No.
8429
6

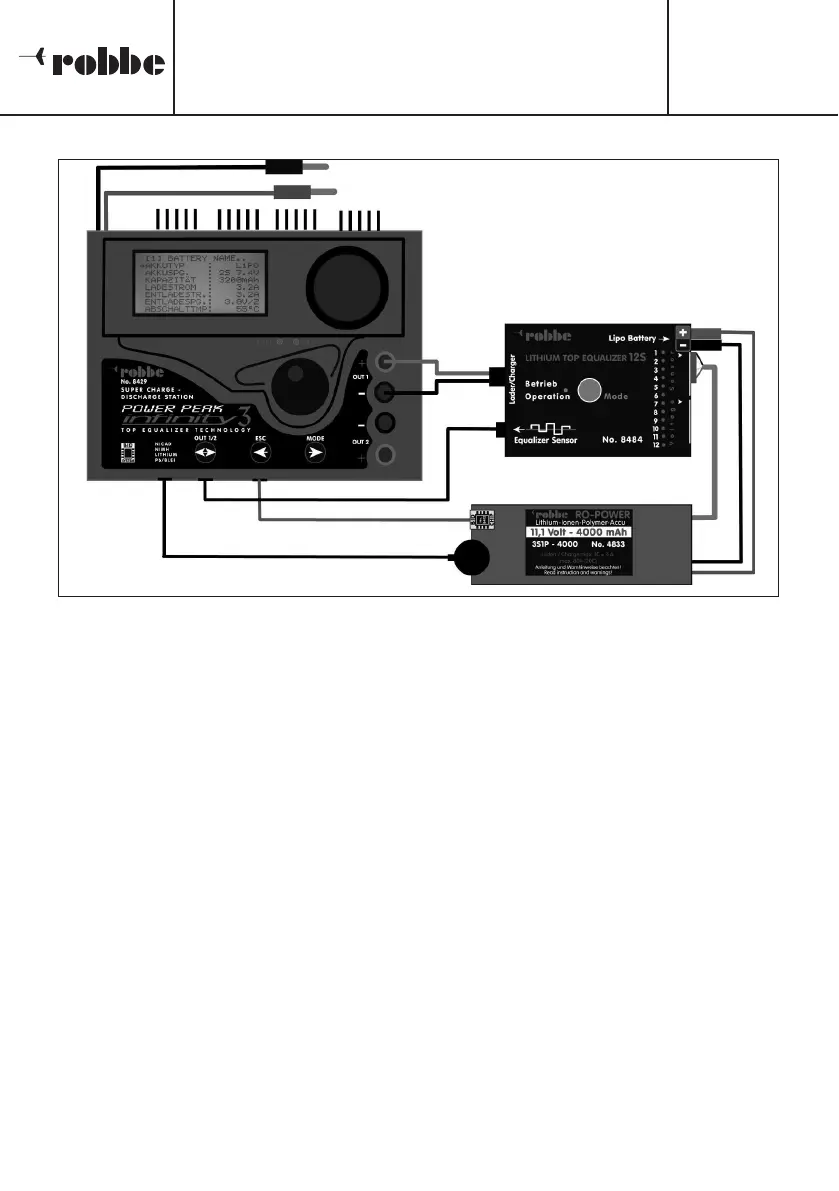

Wiring diagram of a LiPo battery
connected to the Infinity 3, with TOP
Equalizer, BID chip and temperature
sensor.
