%art
to
remove
Muffler
Procedures
Tools
Remarks
~~ ~
(1)
Remove muffler bracket
on
the
top.
12mm
Socket
M8
X
16mm
bolt
and
washer
. .
..
.
.,4
pcs
wrench
(2)
Remove muffler bracket
on
the
bottom.
M8
X
16mm
bolt
and
washer
......
3
pcs
(3)
Remove muffler.
M8
brass
nut
......
2
pcs

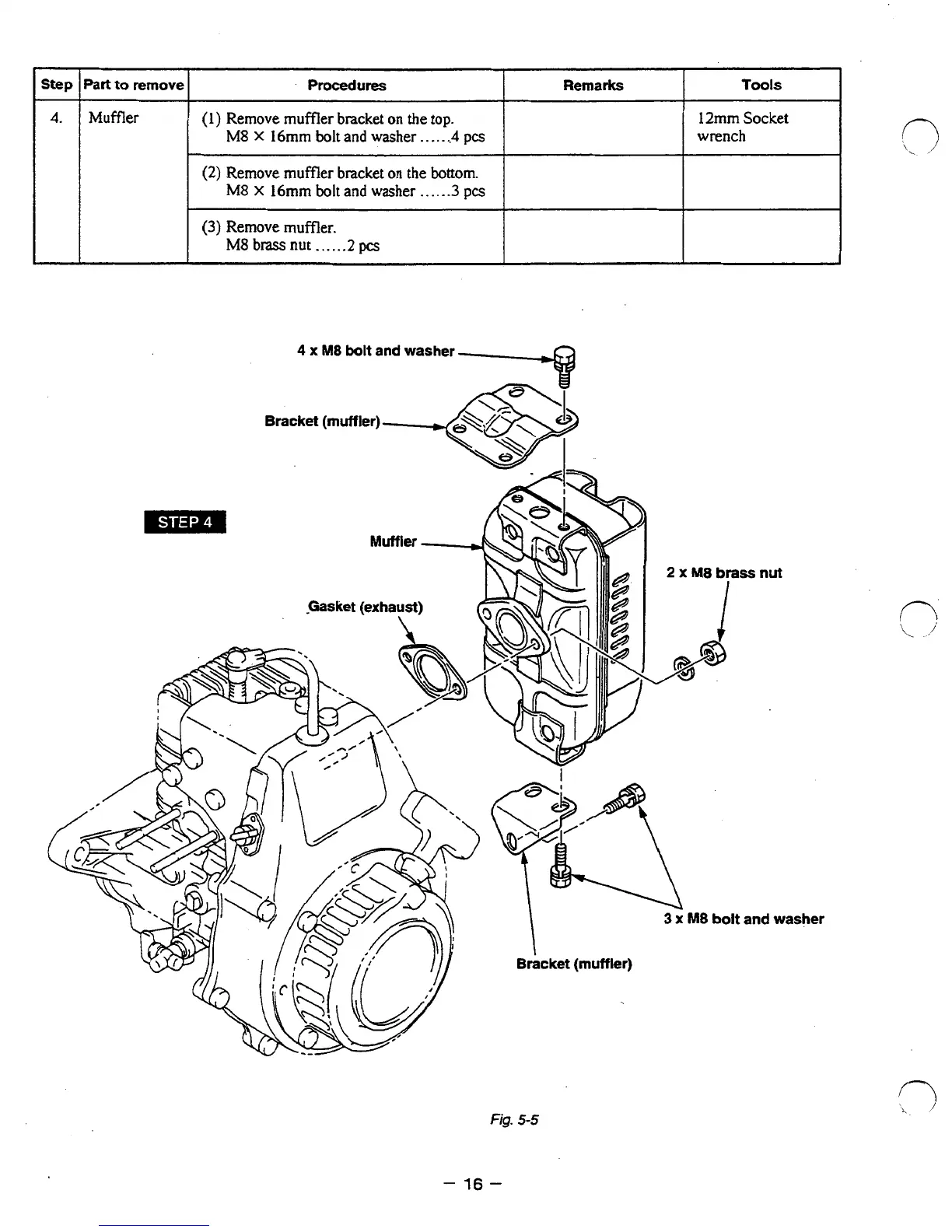

fig.
5-5
-
16-
