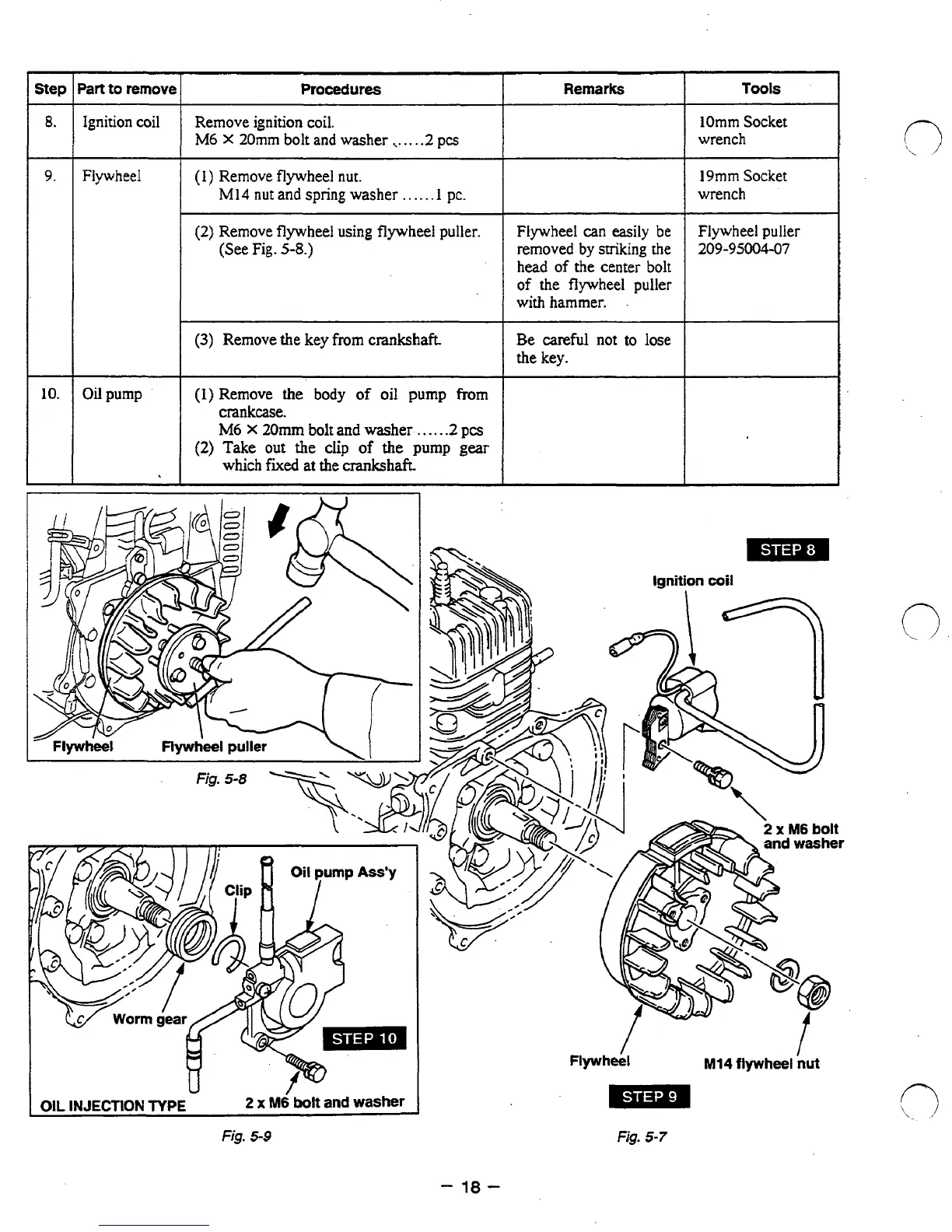

'art to remove Procedures
Remarks Tools
Ignition coil Remove ignition coil.
lOmm Socket
M6 X 20mm bolt and washer ,. . . . .2 pcs wrench
Flywheel
(1) Remove flywheel nut. 19mm Socket
MI4 nut and spring washer . . .... 1 PC. wrench
(2) Remove flywheel using flywheel puller. Flywheel can easily be Flywheel puller
(See Fig.
5-8.) removed by striking the 209-95004-07
head
of the center bolt
of the flywheel puller
with hammer.
(3) Remove the key from crankshaft. Be careful not to lose
the
key.
Oil pump (1) Remove the body of oil pump from
crankcase.
M6 X 20m bolt and washer . . . . . .2 pcs
which fixed at the crankshaft.
(2) Take out the clip of the pump gear
L
OIL INJECTION TYPE
U
2 x M6 bolt and washer
Fig. 5-9
I I
Flywheel M14 flywheel nut
-
Fig. 5-7
-18-
