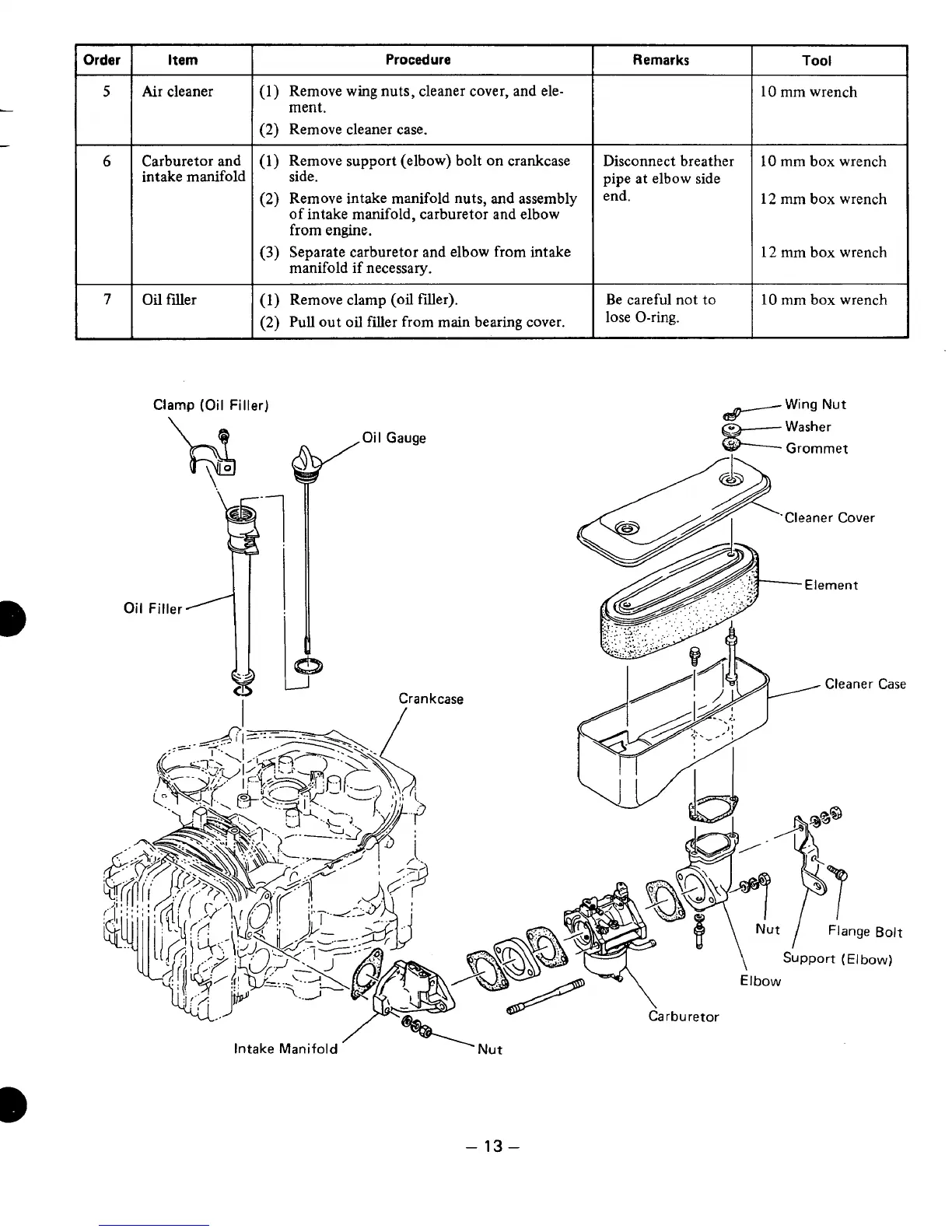

Order
I
L
Item
Procedure
I
Air cleaner
(1) Remove wing nuts, cleaner cover, and ele-
ment.
(2) Remove cleaner case.
Carburetor and
intake manifold
Oil filler
Clamp (Oil Filler)
(1) Remove support (elbow) bolt on crankcase
side.
(2) Remove intake manifold nuts, and assembly
of intake manifold, carburetor and elbow
from engine.
manifold if necessary.
(1) Remove clamp (oil filler).
(2) Pull out oil filler from main bearing cover.
(3) Separate carburetor and elbow from intake
Oil Filler
/Crankcase
Remarks
Disconnect breather
pipe at elbow side
end.
Be careful not to
lose
O-ring.
Tool
10 mm wrench
10 mm box wrench
12 mm box wrench
12 mm box wrench
10 mm box wrench
%=.
.I#"- Wing Nut
Washer
Grommet
-Cleaner Cover
Intake Manifold
- 13 -
