Robin EY45V User Manual

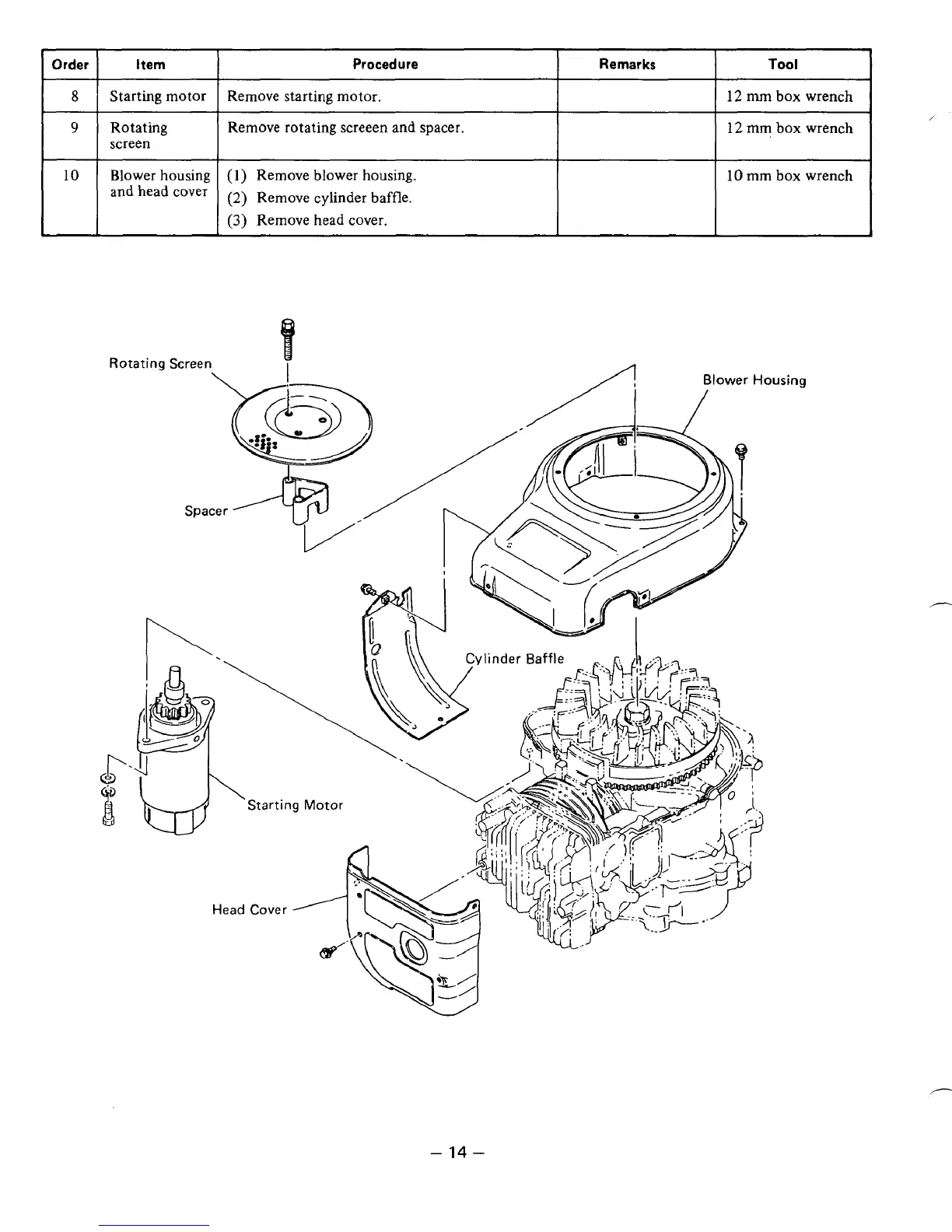

1 Order I Item I Procedure I Remarks
Tool I
I 8 I Starting motor I Remove starting motor.
1 12 mm box wrench I
I 9/
Rotating
screen
Remove rotating screeen and spacer.
12 mm box wrench
I
/
I lo I
Blower housing
and head cover
(1 j Remove blower housing.
(2 j Remove cylinder baffle.
10 mm box wrench
I
I
(3 j Remove head cover.
1 1
- 14 -
