Robin EY45V - Page 19

Order
11
12
Item
Igntion coil
Flywheel and
lighting
coil
Procedure Remarks Tool
I I
Remove ignition coil from crankcase.
(1) Remove nut from tip of crankshaft.
(2) Remove flywheel using flywheel puller.
(See Fig.
16.)
Be sure to remove
ignition coil fist.
(Ring gear is located
inward
of ignition
coil, so, if flywheel
is pulled out first,
case may become
broken.)
10 mm box wrench
24 mm box wrench

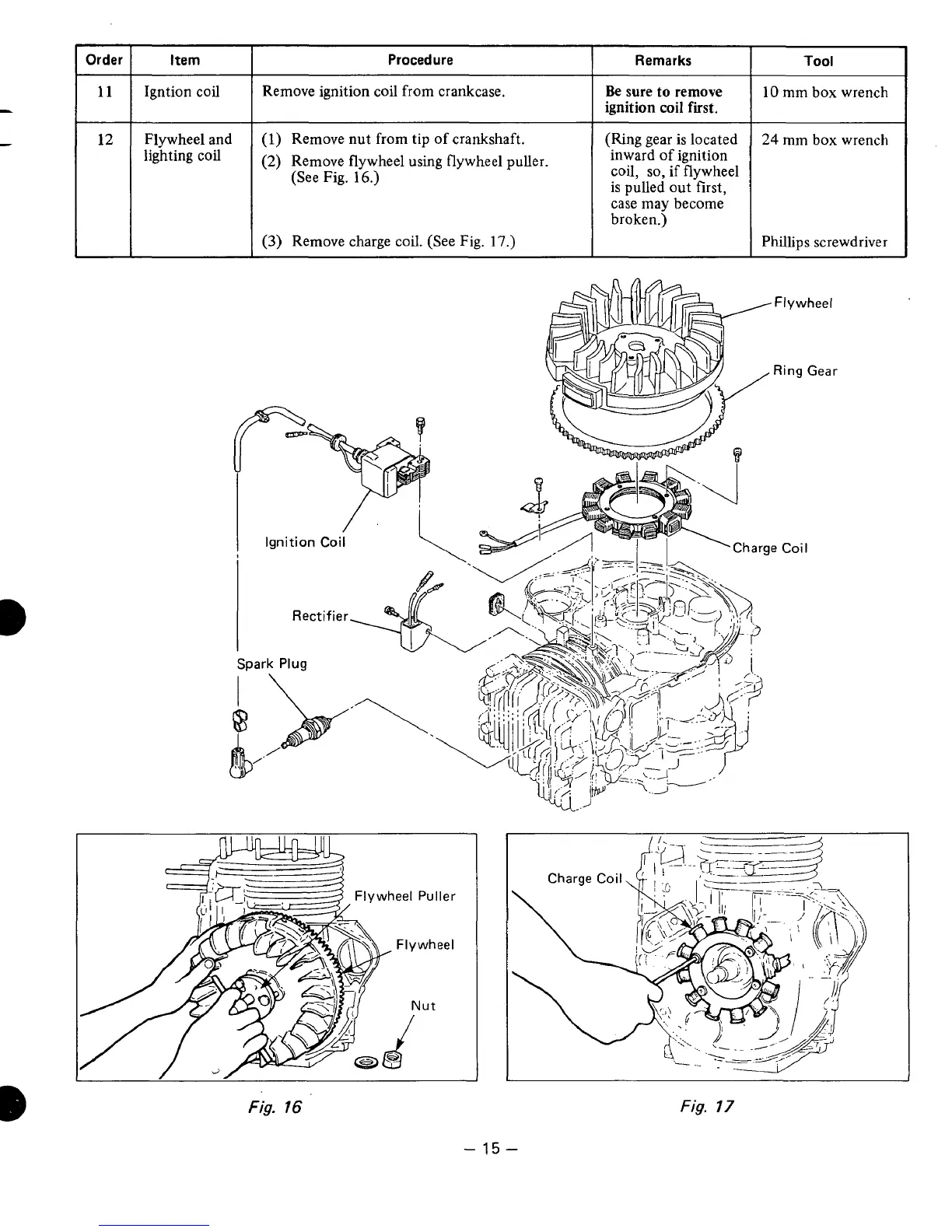

(3) Remove charge coil. (See Fig. 17.) Phillips screwdriver
Flywheel Puller
Fig. 17
Fig. 16
- 15 -
