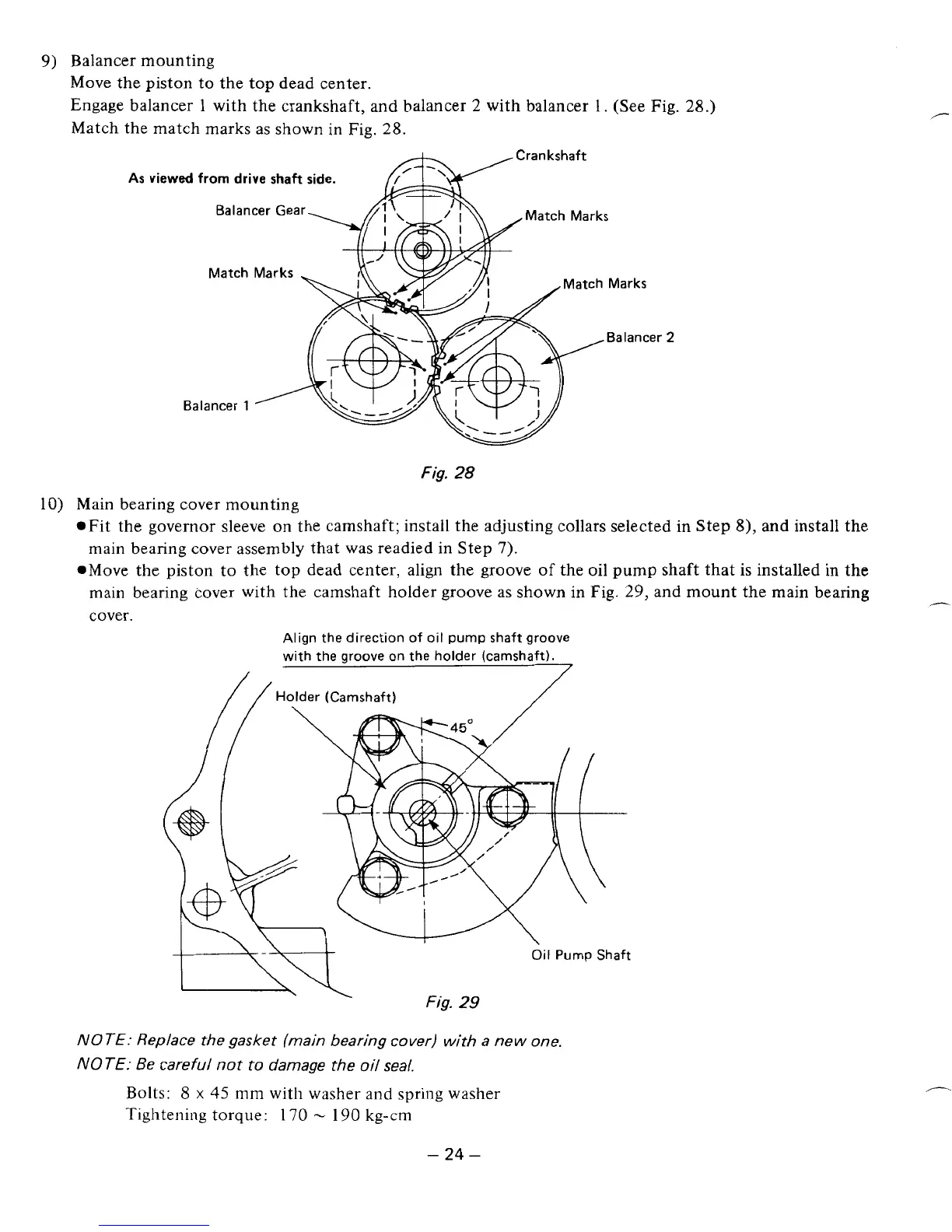

9)
Balancer mounting
Move the piston to the top dead center.
Engage balancer
1
with the crankshaft, and balancer
2
with balancer
1.
(See Fig.
28.)
Match the match marks as shown in Fig.
28.
/-
As
viewed
from
drive
shaft
side.
Balancer Gear
Match Marks
Balancer
1
Fig.
28
10) Main bearing cover mounting
.Fit the governor sleeve on the camshaft; install the adjusting collars selected in Step
8),
and install
the
main bearing cover assembly that was readied in Step
7).
.Move the piston to the top dead center, align the groove
of
the
oil
pump shaft that
is
installed in
the
main bearing cover with the camshaft holder groove as shown in Fig.
29,
and mount the main bearing
cover.
,"--
Align the direction of
oil
pump
shaft groove
with the groove on the holder (camshaft).
NOTE: Replace the
gasket
(main bearing cover) with a new one.
NOTE:
Be
careful
not
to
damage the oil seal.
Bolts:
8
x
45
mm with washer and spring washer
Tightening torque:
170
-
190
kg-cm
-
24
-
