8)
Side clearance measuring
Adjust the side clearances of the crankshaft and camshaft with the adjusting collars. Measure
A,
B,
D,
and
E
shown in
Fig.
27,
and select adjusting collars
so
that the side clearances
of
both
the crankshaft
and camshaft will be
0
to
0.25
mm.
NOTE:
C
indicates gasket thickness. Calculate
it
as
0.25
mrn.
NOTE:
Three kinds
of
adjusting collars-
1.05
mm,
1.2
rnrn,
and
1.35
mrn
thick-are available
for
both
the crankshaft and camshaft.
T:
Thickness
of
the
adjusting
collar
T
=
E
-
D
+
(0
-
0.25)
T
=
B
-
A
+
(0
-
0.25)

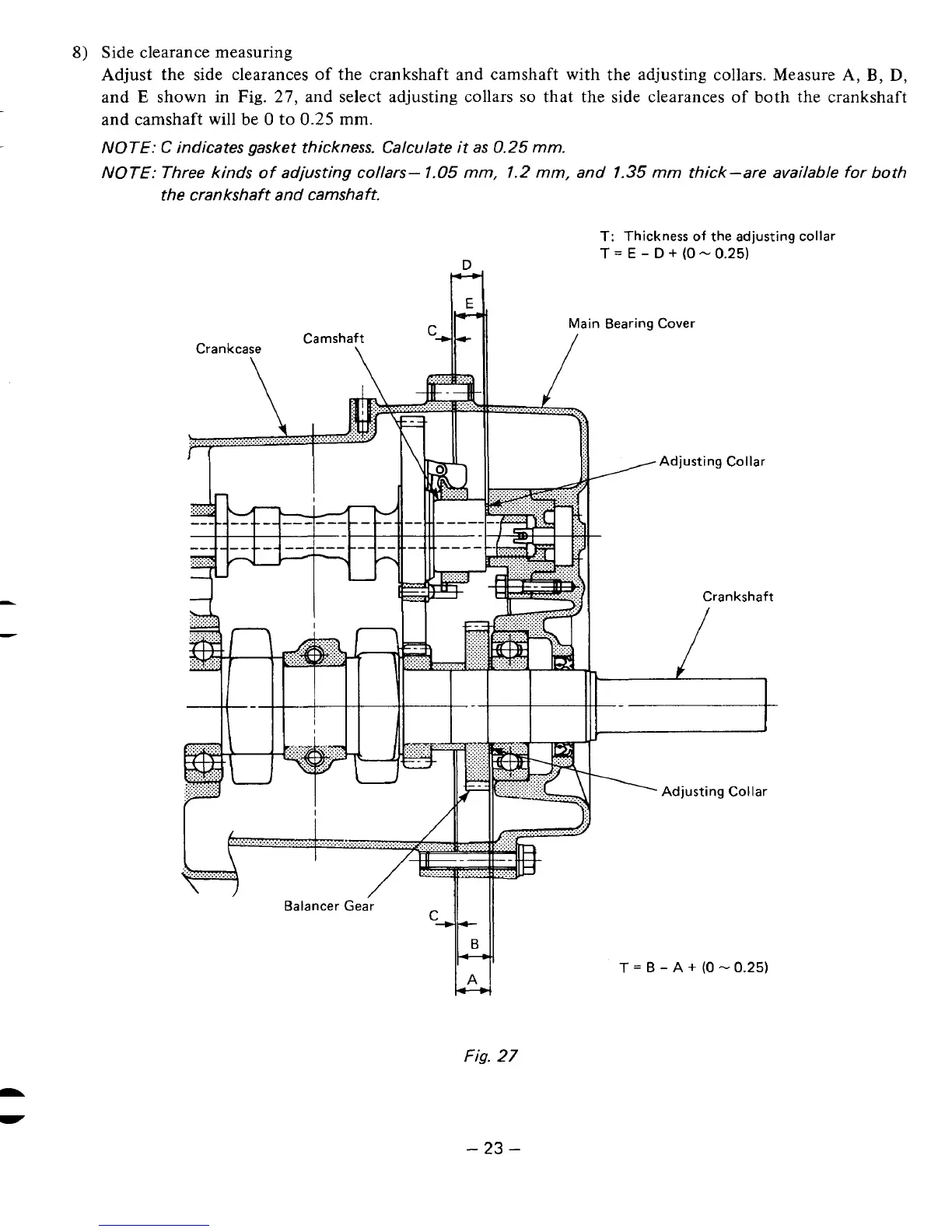

Fig.
27
-
