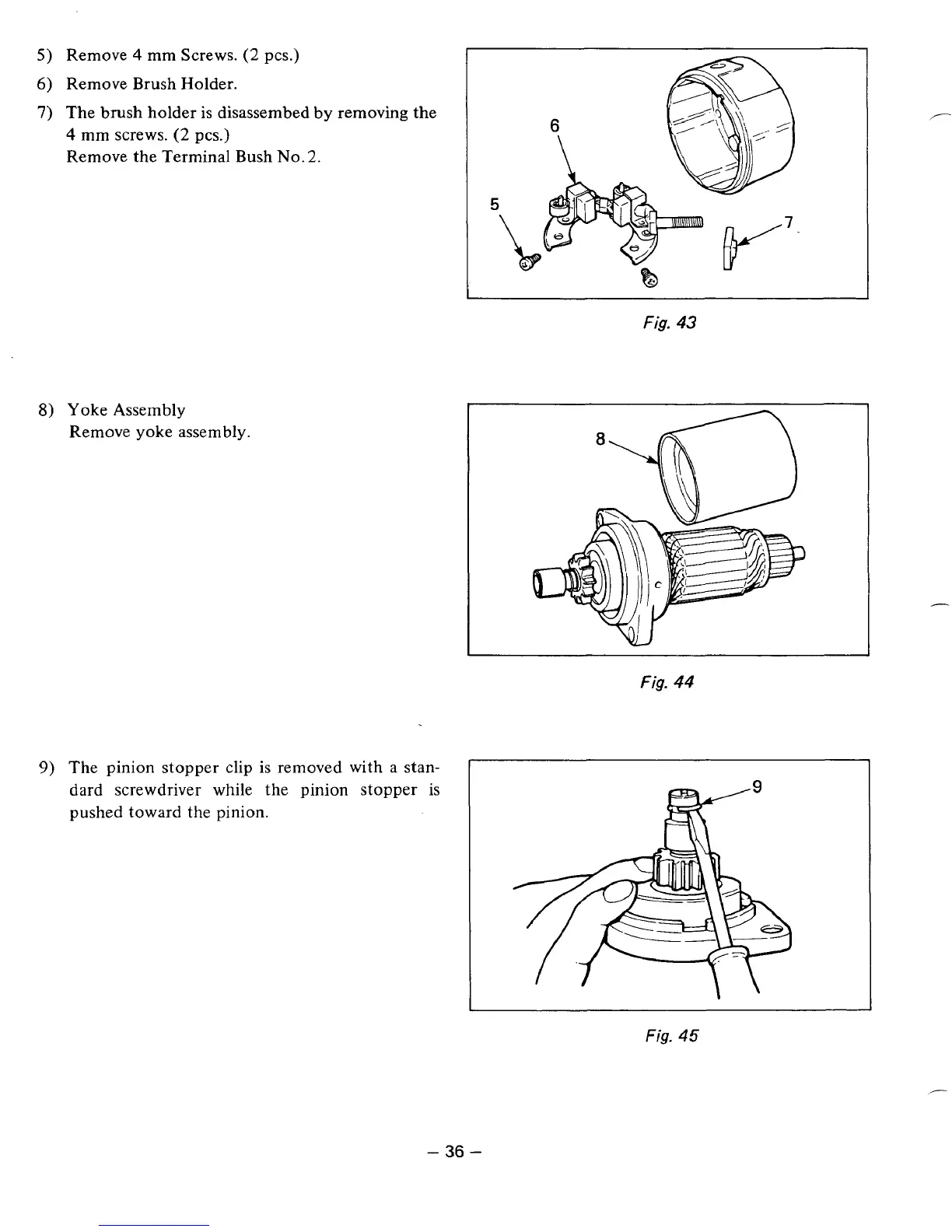

Remove 4 mm Screws. (2 pcs.)
Remove Brush Holder.
The brush holder
is disassembed by removing the
4 mm screws. (2 pcs.)
Remove the Terminal Bush No. 2.
I
Fig. 43
8) Yoke Assembly
Remove yoke assembly.
Fig. 44
9) The pinion stopper clip is removed with a stan-
dard screwdriver while the pinion stopper
is
pushed toward the pinion.
A "\ \"I
1
Fig. 45
- 36 -
