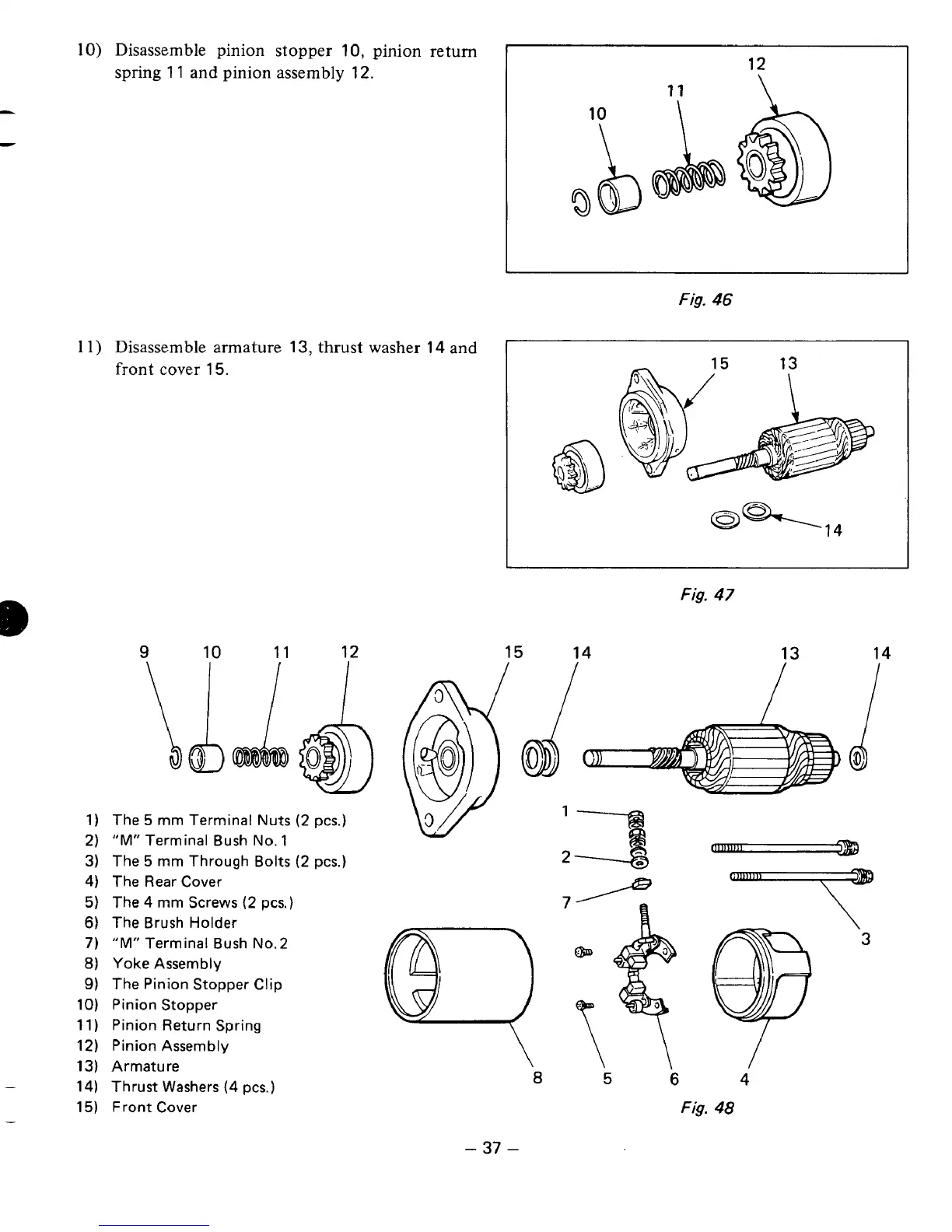

10) Disassemble pinion stopper 10, pinion return
spring 1 1 and pinion assembly 12.
12
10
Fig. 46
11) Disassemble armature 13, thrust washer 14 and
front cover
1 5.
Fig. 47
1) The 5 mm Terminal Nuts (2 pcs.)
2) "M" Terminal Bush No. 1
3) The 5 mm Through Bolts (2 pcs.)
4) The Rear Cover
5) The 4 mm Screws (2 pcs.)
6) The Brush Holder
7) "M" Terminal Bush No.2
8) Yoke Assembly
9) The Pinion Stopper Clip
IO) Pinion Stopper
11) Pinion Return Spring
12) Pinion Assembly
13) Armature
14) Thrust Washers (4 pcs.)
15) Front Cover Fig. 48
a 5 6 4
- 37 -
