Robin FL-H7500 - Page 13

12
  

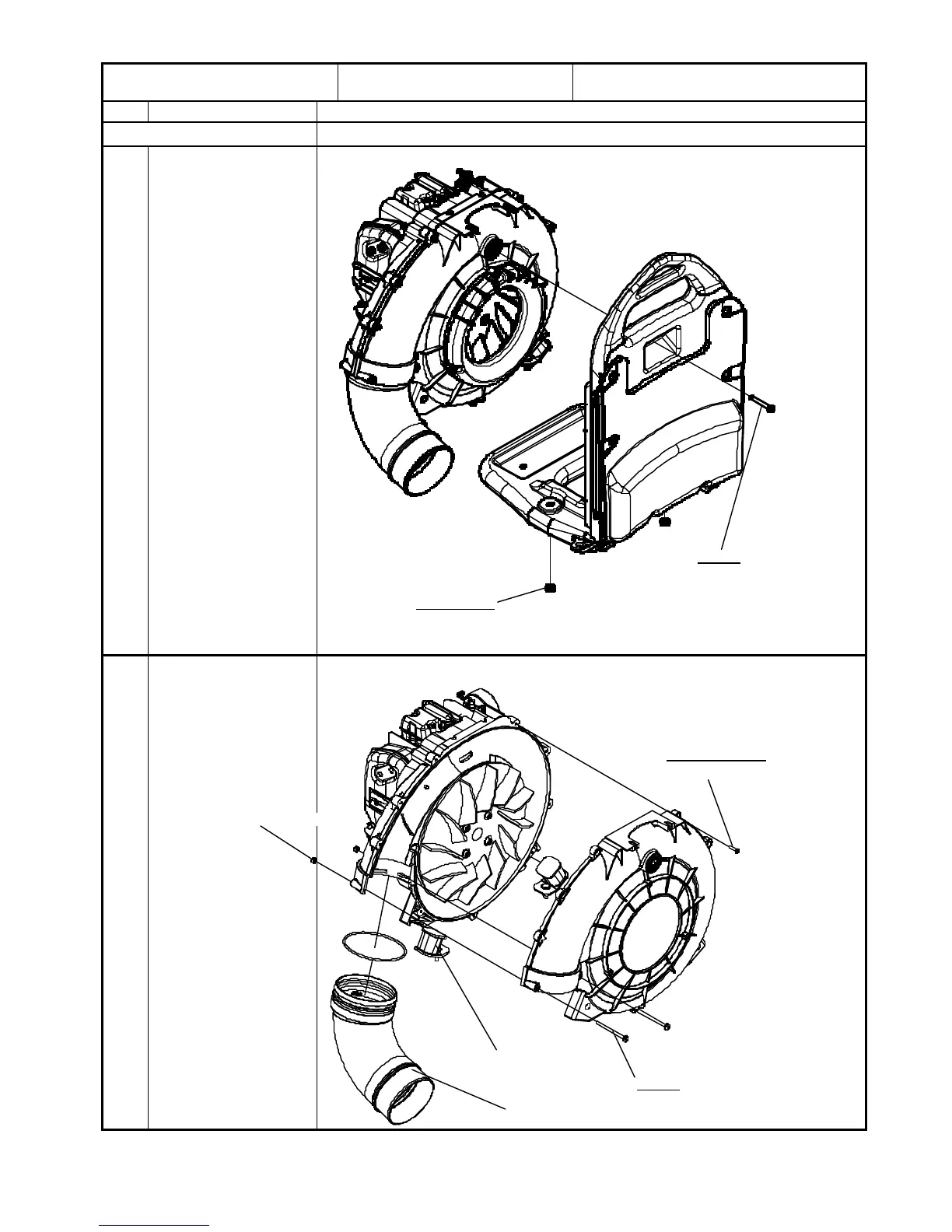

NO. Partname DisassemblingInstructions
 
8
FRAME

(1) RemovetheFRAME.

9
CASE1,VOLUTE
DAMPER2
ELBOW
O-RING
(1) RemovetheCASE1,VOLUTE. NOTICE : Becarefulnottoloosethenuts.

ELBOW
NUTM5BLACK
DAMPER2
TAPPINGSCREW
5*16(9PCS)
SCREW
M5*65W,SW (2PCS)
SCREW
M5*16W,SW 
MEC(2PCS)
FRANGENUT
M6（2PCS）
