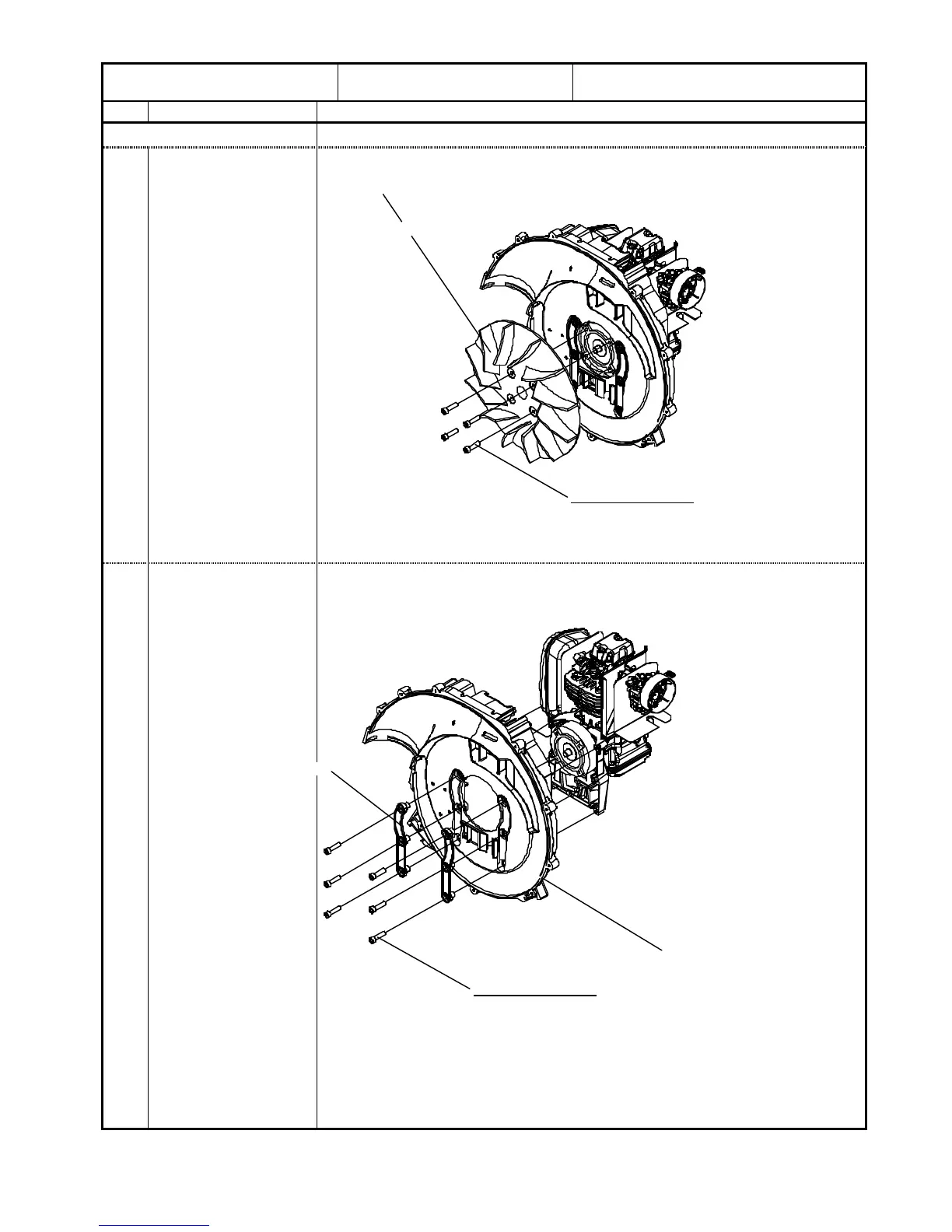

NO. Partname DisassemblingInstructions
 
10
IMPELLER

(1) RemovetheIMPELLER.
11
ENGINE
 〜CASE2,VOLUTE

(1) RemovetheENGINE.


SOCKETHEADBOLT
M6*30W,SW(6PCS)
BASE

CASE2,VOLUTE
IMPELLER
SOCKETHEADBOLT
M6*40W,SW(4PCS)
