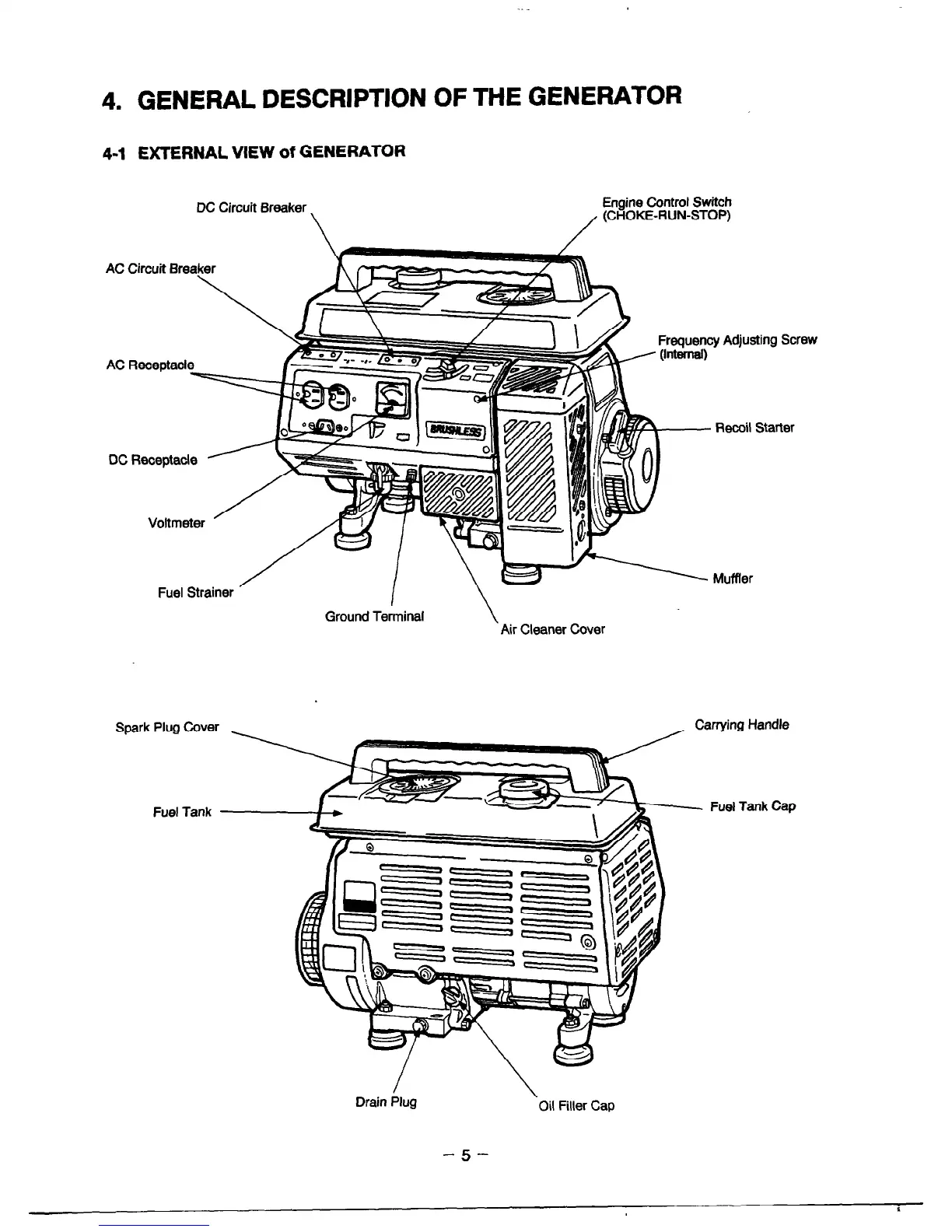

4. GENERAL DESCRIPTION OF THE GENERATOR
4-1 EXTERNAL VIEW of GENERATOR
DC Circuit Breaker
Engine Control Switch
(CHOKE-RUN-STOP)
AC Receptacle
Ground Terminal
Air Cleaner Cover
Spark Plug
Cover
Fuel
Tank
/
Drain Plug
\-
Oil Filler Cap
-5-
Carrying Handle
- Fuel Tank Cap
