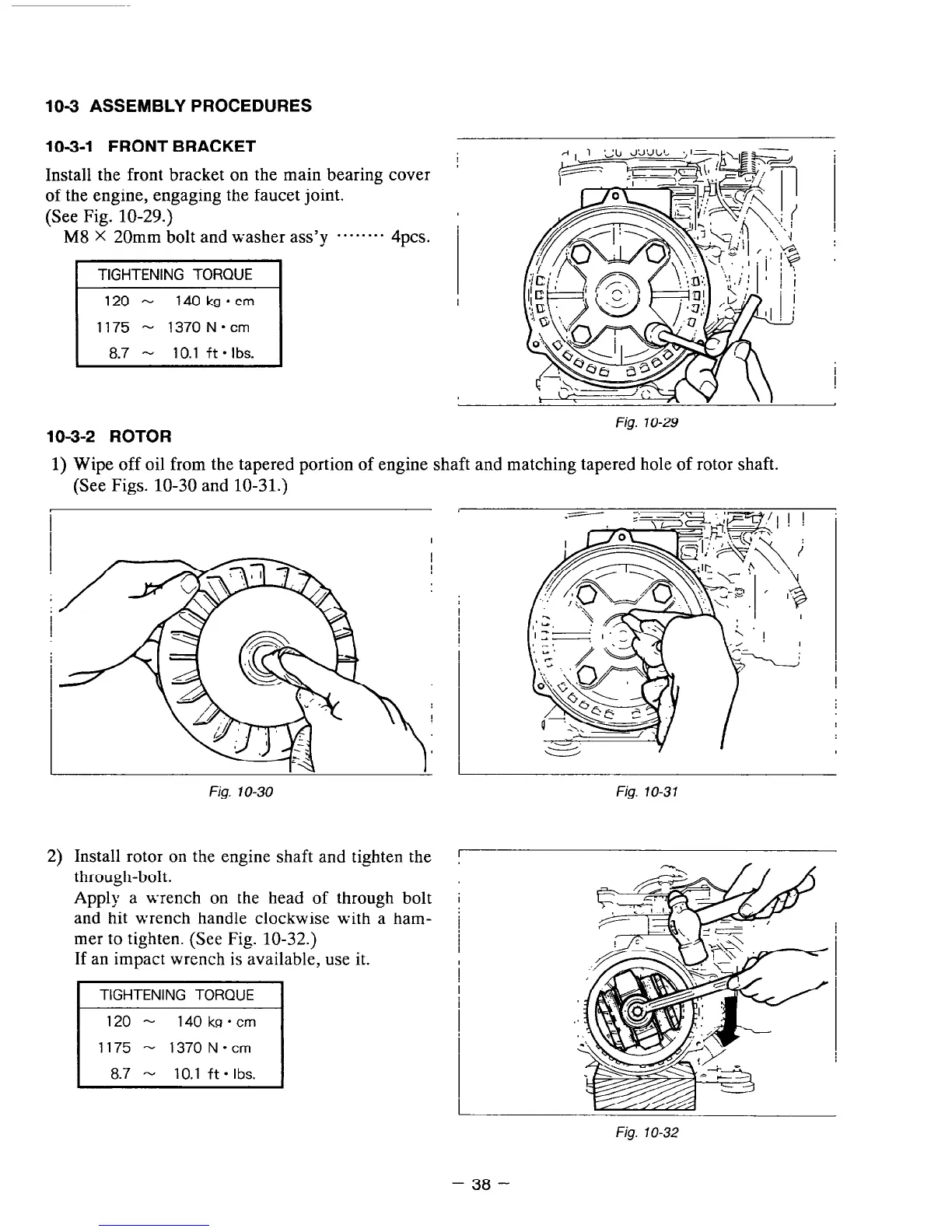

10-3 ASSEMBLY PROCEDURES
10-3-l FRONT BRACKET
Install the front bracket on the main bearing cover
of the engine, engaging the faucet joint.
(See Fig. 10-29.)
M8 X 20mm bolt and washer ass’y .*-*.... 4pcs.
10-3-2 ROTOR
Fig. 70-29
1) Wipe off oil from the tapered portion of engine shaft and matching tapered hole of rotor shaft.
(See Figs. lo-30 and 10-31.)
Fig. lo-30
Fig. 10-31
2) Install rotor on the engine shaft and tighten the
I
through-bolt.
Apply a wrench on the head of through bolt
i
and hit wrench handle clockwise with a ham-
;
mer to tighten. (See Fig. 10-32.)
If an impact wrench is available, use it.
I
I
I
Fig. 10-32
- 38 -
