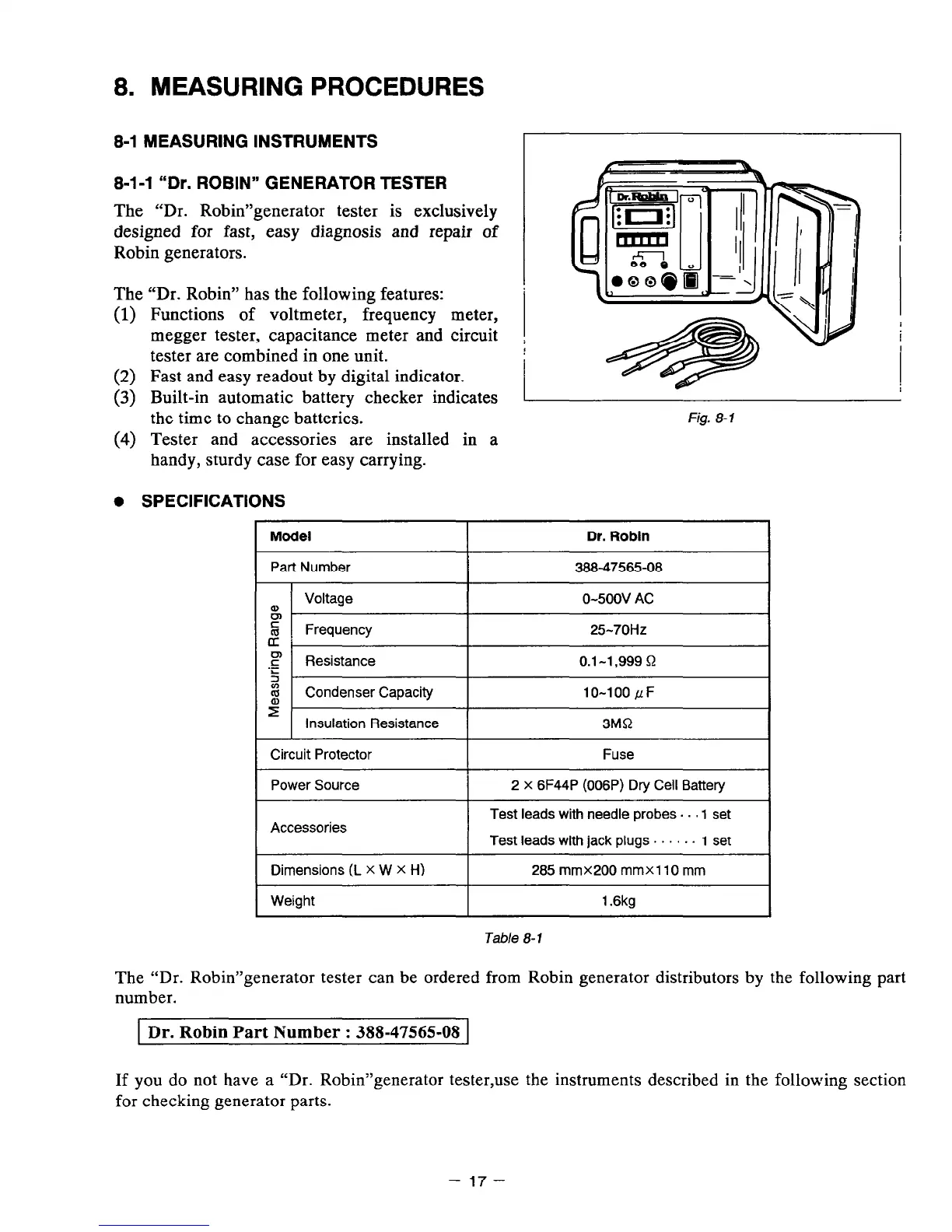

8. MEASURING PROCEDURES
8-1 MEASURING INSTRUMENTS
8-l -1 “Dr. ROBIN” GENERATOR TESTER
The “Dr. Robin”generator tester is exclusively
designed for fast, easy diagnosis and repair of
Robin generators.
The “Dr. Robin” has the following features:
(1) Functions of voltmeter, frequency meter,
megger tester, capacitance meter and circuit
tester are combined in one unit.
(2) Fast and easy readout by digital indicator.
(3) Built-in automatic battery checker indicates
the time to change batteries.
(4) Tester and accessories are installed in a
handy, sturdy case for easy carrying.
Fig. 8-1
l SPECIFICATIONS
Model
Part Number
Voltage
i!l
2 : Frequency
P Resistance
‘C
2
9
Condenser Capacity
2
Insulation Resistance
Circuit Protector
Power Source
Accessories
Dimensions (L X W X H)
Weight
Dr. Robin
388-47565-08
0-500V AC
25-70Hz
0.1-l ,999 0
lo-100 ,YF
3MQ
Fuse
2 x 6F44P (006P) Dry Cell Battery
Test leads with needle probes . . . 1 set
Test leads with jack plugs . . . . . . 1 set
285 mmx200 mmxll0 mm
1.6kg
Table 8-l
The “Dr. Robin”generator tester can be ordered from Robin generator distributors by the following part
number.
Dr. Robin Part Number : 388-47565-08
If you do not have a “Dr. Robin’generator tester,use the instruments described in the following section
for checking generator parts.
- 17-
