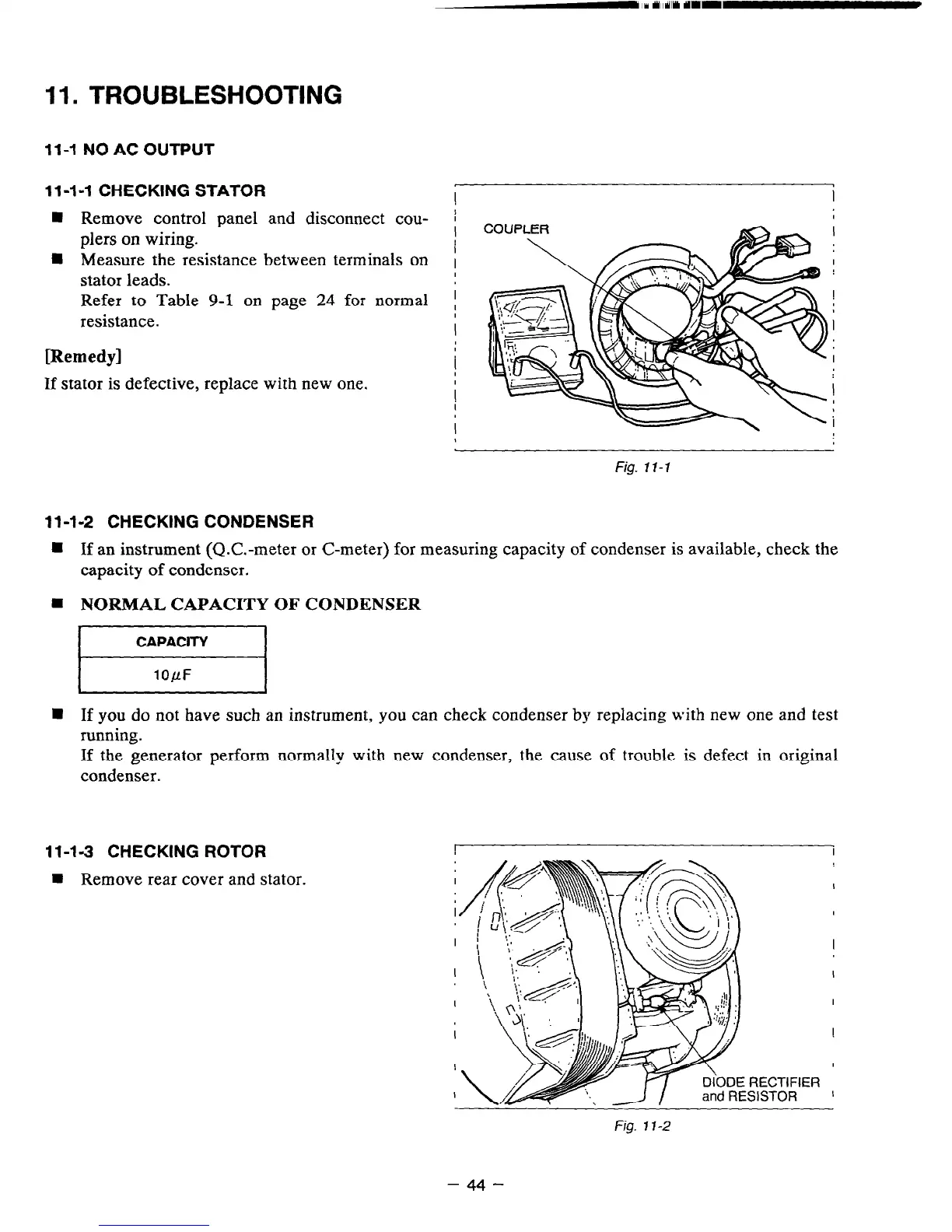

11. TROUBLESHOOTING
II-I NO AC OUTPUT
II-I -1 CHECKING STATOR
n
Remove control panel and disconnect cou-
plers on wiring.
n
Measure the resistance between terminals on
stator leads.
Refer to Table 9-l on page 24 for normal
resistance.
IRemedy
If stator is defective, replace with new one.
I
I
I
Fig. 17-1
11-I-2 CHECKING CONDENSER
n
If an instrument (Q.C.-meter or C-meter) for measuring capacity of condenser is available, check the
capacity of condenser.
n
NORMAL CAPACITY OF CONDENSER
n
If you do not have such an instrument, you can check condenser by replacing with new one and test
running.
If the generator perform normally with new condenser, the cause of trouble is defect in original
condenser.
1 l-l-3 CHECKING ROTOR
n
Remove rear
cover
and stator.
I
I
I
DIODE RECTIFIER
and RESISTOR !
Fig. 7 l-2
- 44 -
