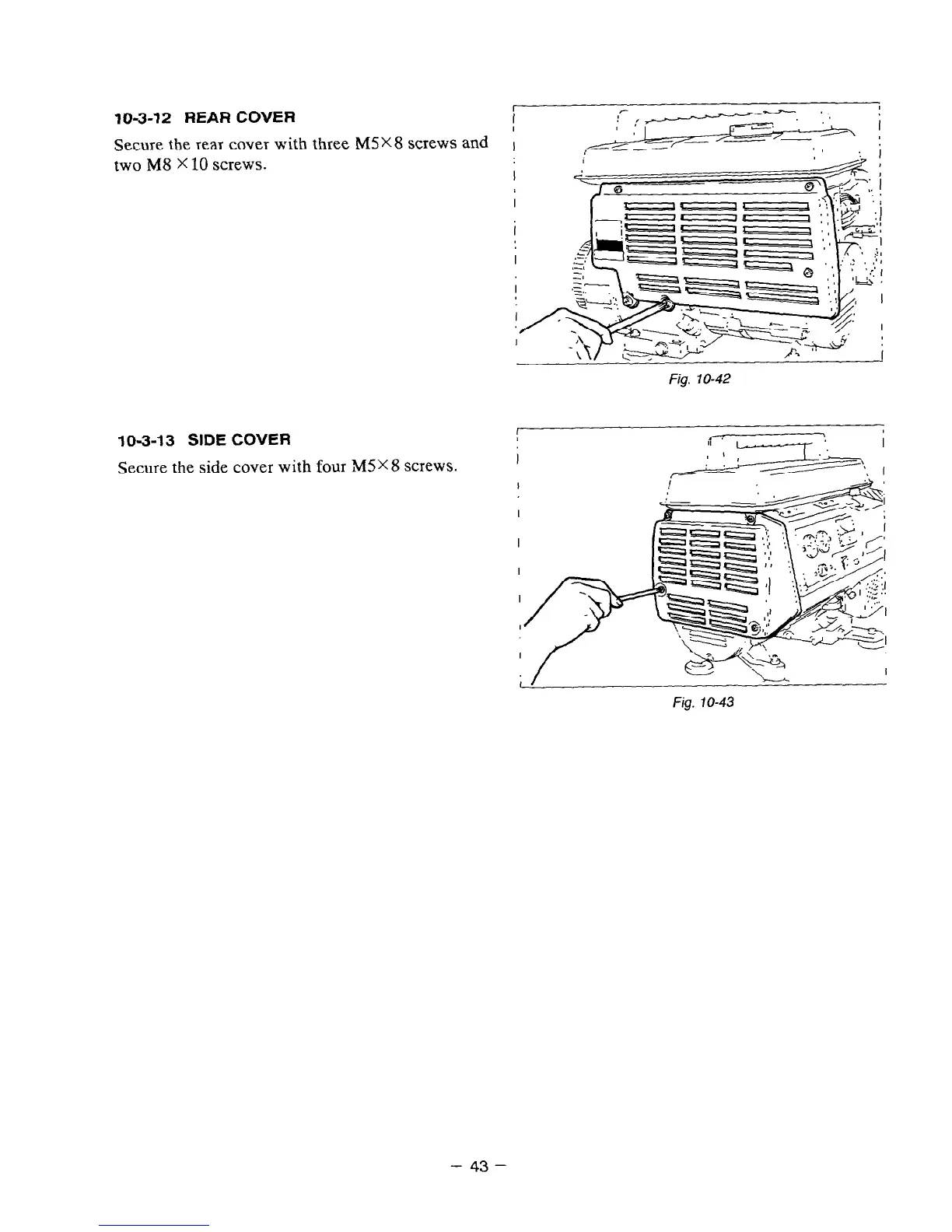

10-3-12 REAR COVER
r
I
I
Secure the reaT cover with three M5X8 screws and !
two M8 X 10 screws.
I
--
Fig. lo-42
10-3-13 SIDE COVER
I
r’
II
L-----r :.
I
Secure the side cover with four M5X 8 screws.
I
Fig. IO-43
