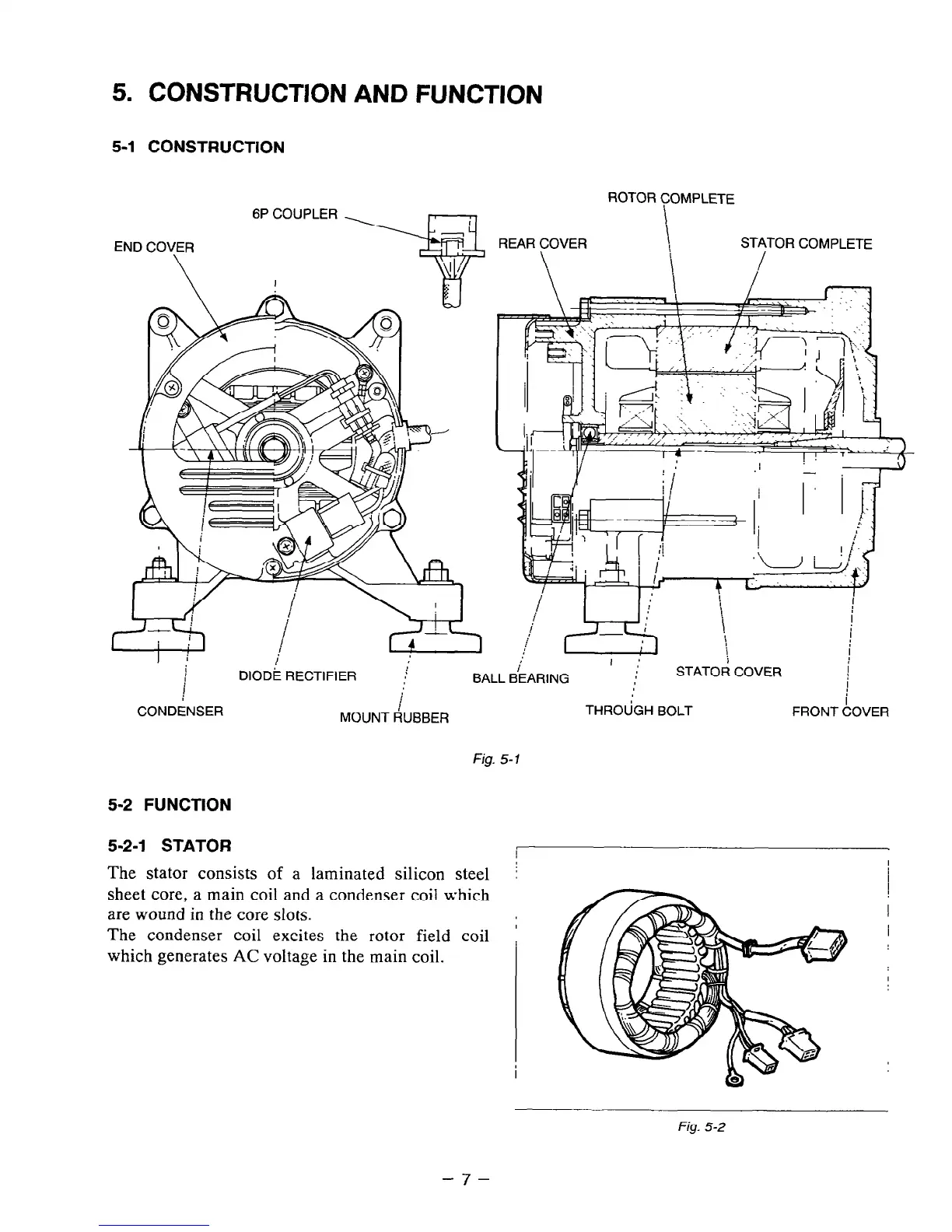

5. CONSTRUCTION AND FUNCTION
5-1 CONSTRUCTION
ROTOR COMPLETE
END COVER
\
tip Co”PLER y- REAR YOVER
\ STATOR COMPLETE
,
,
BALL BLARING
’ ,
i
DlODi RECTIFIER :
STATOR COVER
I
;
I
CONDiNSER
MOUNT &BBER
THROtiGH BOLT
FRONT ~&OVER
Fig. 5-7
5-2 FUNCTION
5-2-i STATOR
The stator consists of a laminated silicon steel
sheet core, a main coil and a condenser coil which
are wound in the core slots.
The condenser coil excites the rotor field coil
which generates AC voltage in the main coil.
I
I
I
I
I
Fig. 5-2
-7-

Robin R1210 Brushless Specifications

General

Brand	Robin
Model	R1210 Brushless
Category	Portable Generator
Language	English
