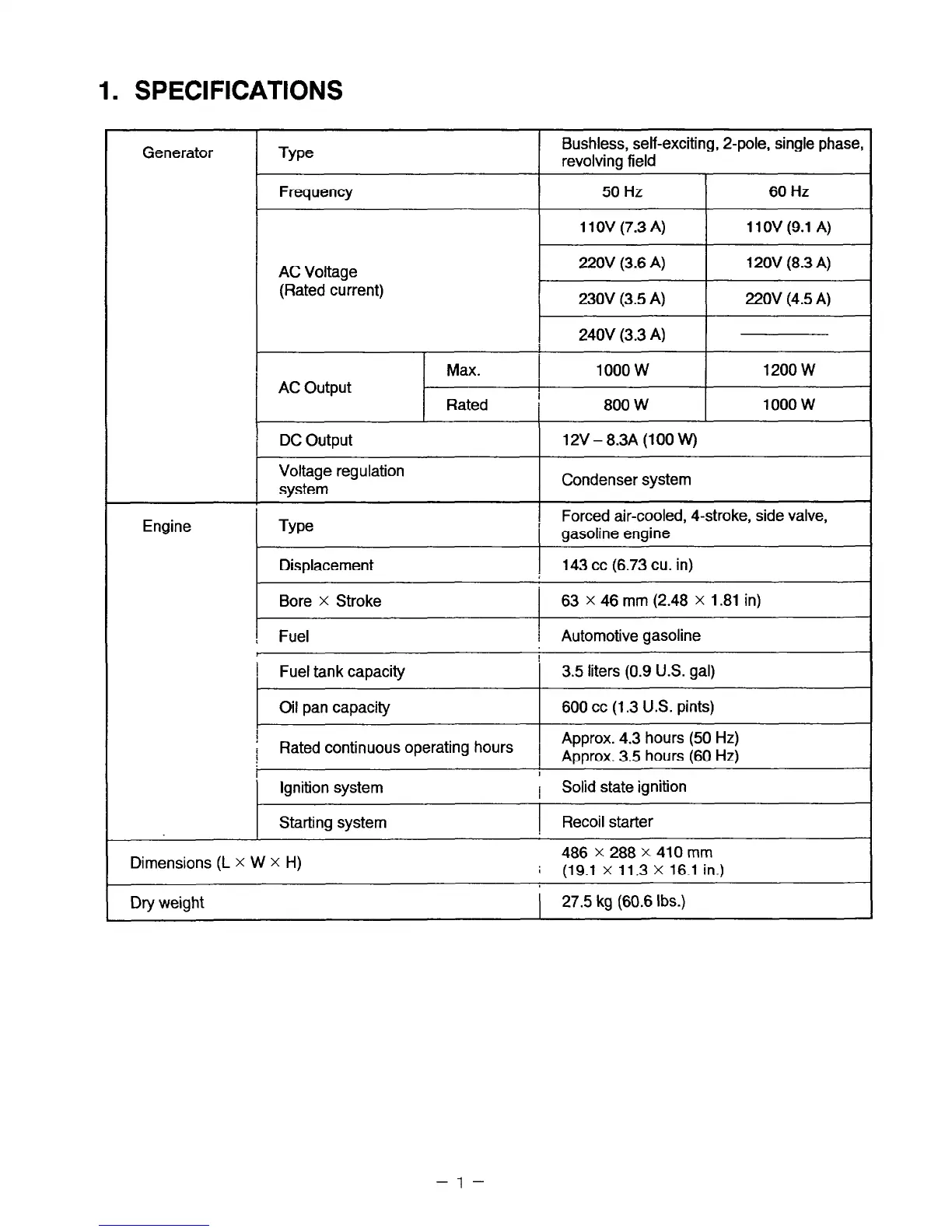

1. SPECIFICATIONS
Generator
Type
Frequency
AC Voltage
(Rated current)
Bushless, self-exciting, 2-pole, single phase,
revolving field
50 Hz
60 Hz
11 OV (7.3 A)
11OV (9.1 A)
220V (3.6 A)
12OV (8.3 A)
230V (3.5 A) 220V (4.5 A)
240V (3.3 A)
Engine
/ AC Output
Max. 1000 w
1200 w
Rated :
800 W
1000 w
/ DC Output
12V-8.3A(lOOW)
Voltage regulation
system
Condenser system
Type
Forced air-cooled, 4-stroke, side valve,
’ gasoline engine
Displacement
, 143 cc (6.73 cu. in)
Bore
x
Stroke
63 x 46 mm (2.48
x
1.81 in)
I Fuel
I Automotive gasoline
! Fuel tank capacity
3.5 liters (0.9 U.S. gal)
Oil pan capacity
600 cc (1.3 U.S. pints)
Rated continuous operating hours
Dimensions (L X W X H)
Dry weight
486 x 288 x 410 mm
; (19.1 x 11.3 X 16.1 in.)
27.5 kg (60.6 Ibs.)
-5-
