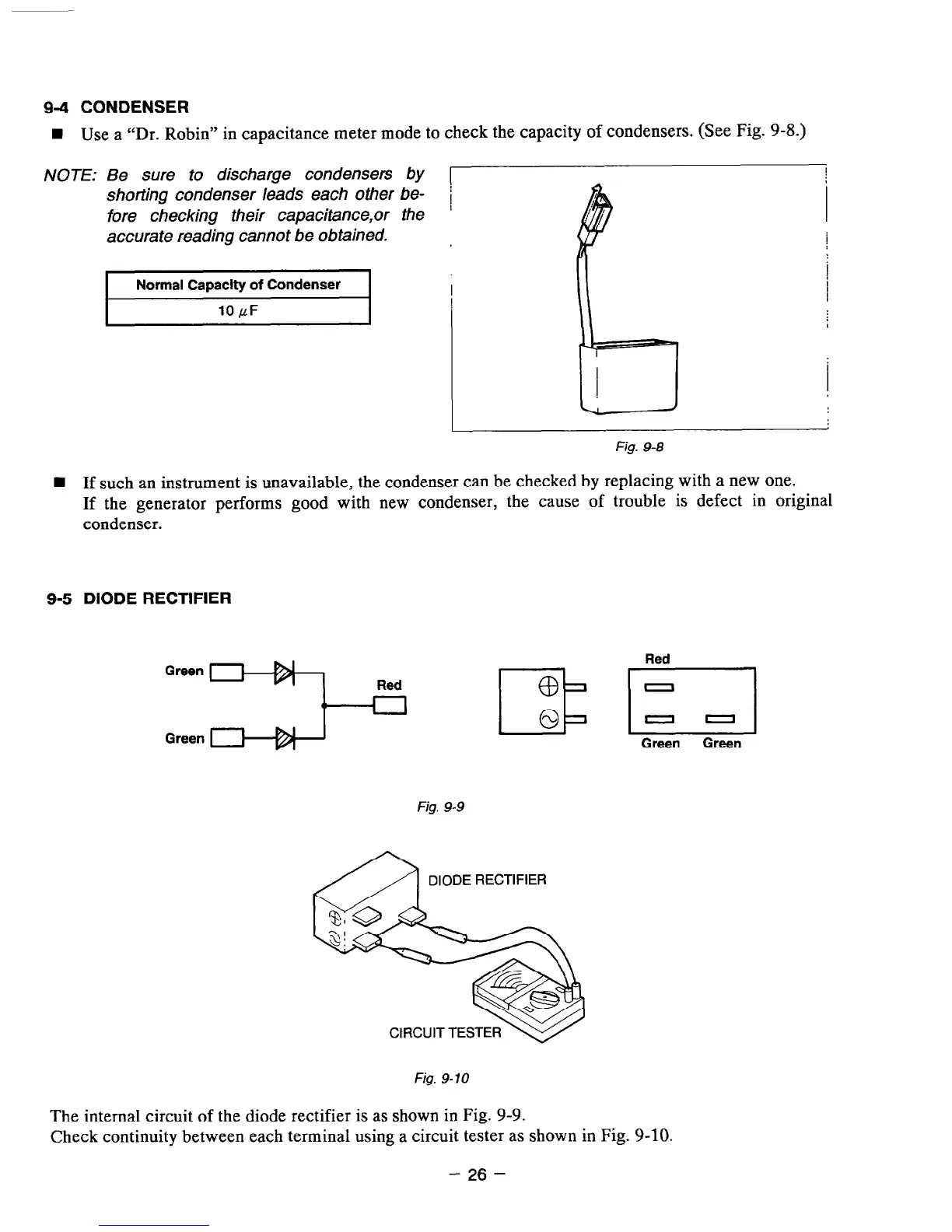

9-4 CONDENSER
H Use a “Dr. Robin” in capacitance meter mode to check the capacity of condensers. (See Fig. 9-8.)
NOTE: Be sure to discharge condensers by
shorting condenser leads each other be-
fore checking their capacitance,or the
accurate reading cannot be obtained.
L
Fig. 9-8
n
If such an instrument is unavailable, the condenser can be checked by replacing with a new one.
If the generator performs good with new condenser,
the cause of trouble is defect in original
condenser.
9-5 DIODE RECTIFIER
Green
Red
Green
Red
Green Green
Fig. 9-9
DIODE RECTIFIER
CIRCUIT TESTE
Fig. 9-10
The internal circuit of the diode rectifier is as shown in Fig. 9-9.
Check continuity between each terminal using a circuit tester as shown in Fig. 9-10.
- 26 -
