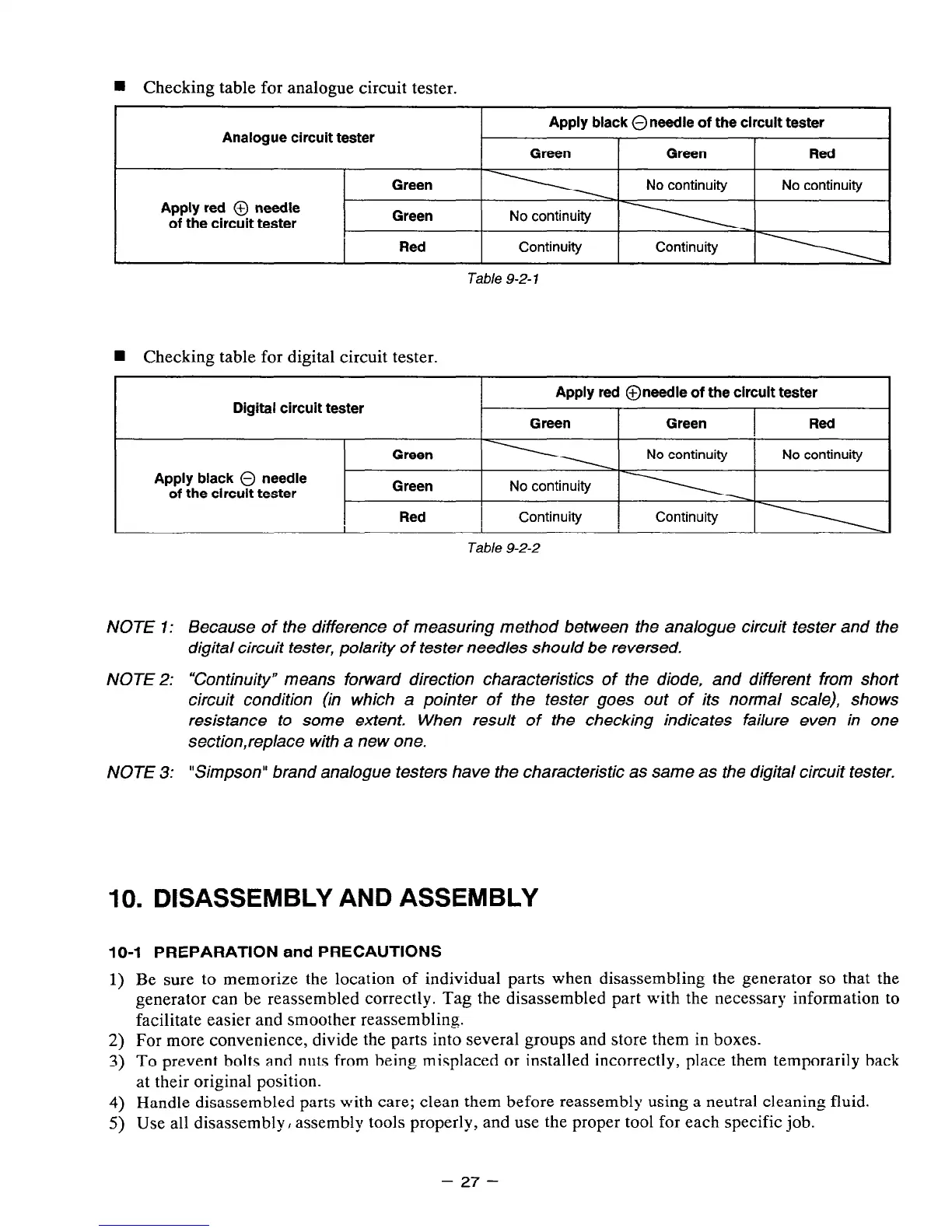

w Checking table for analogue circuit tester.
Apply black 0 needle of the circuit tester
Analogue circuit tester
Green Green
Red
Apply red @ needle
of the circuit tester
Green
Green
Red
No continuity
Table 9-2- 1
n
Checking table for digital circuit tester.
Apply red @needle of the circuit tester
Digital circuit tester
Green
Green Red
Green
Apply black @ needle
of the circuit tester
Green
Red
NOTE I:
Because of the difference of measuring method between the analogue circuit tester and the
digital circuit tester, polarity of tester needles should be reversed.
NOTE 2:
“Continuity” means forward direction characteristics of the diode, and different from short
circuit condition (in which a pointer of the tester goes out of its normal scale), shows
resistance to some extent. When result of the checking indicates failure even in one
section,replace with a new one.
NOTE 3:
“Simpson” brand analogue testers have the characteristic as same as the digital circuit tester.
Table 9-2-2
10.
DISASSEMBLY AND ASSEMBLY
1 O-l PREPARATION and PRECAUTIONS
1) Be sure to memorize the locarion of individual parts when disassembling the generator so that the
generator can be reassembled correctly. Tag the disassembled part with the necessary information to
facilitate easier and smoother reassembling.
2) For more convenience, divide the parts into several groups and store them in boxes.
3) To prevent bolts and nuts from being misplaced or installed incorrectly, place them temporarily back
at their original position.
4) Handle disassembled parts with care; clean them before reassembly using a neutral cleaning fluid.
5) Use all disassembly, assembly tools properly, and use the proper tool for each specific job.
- 27 -
