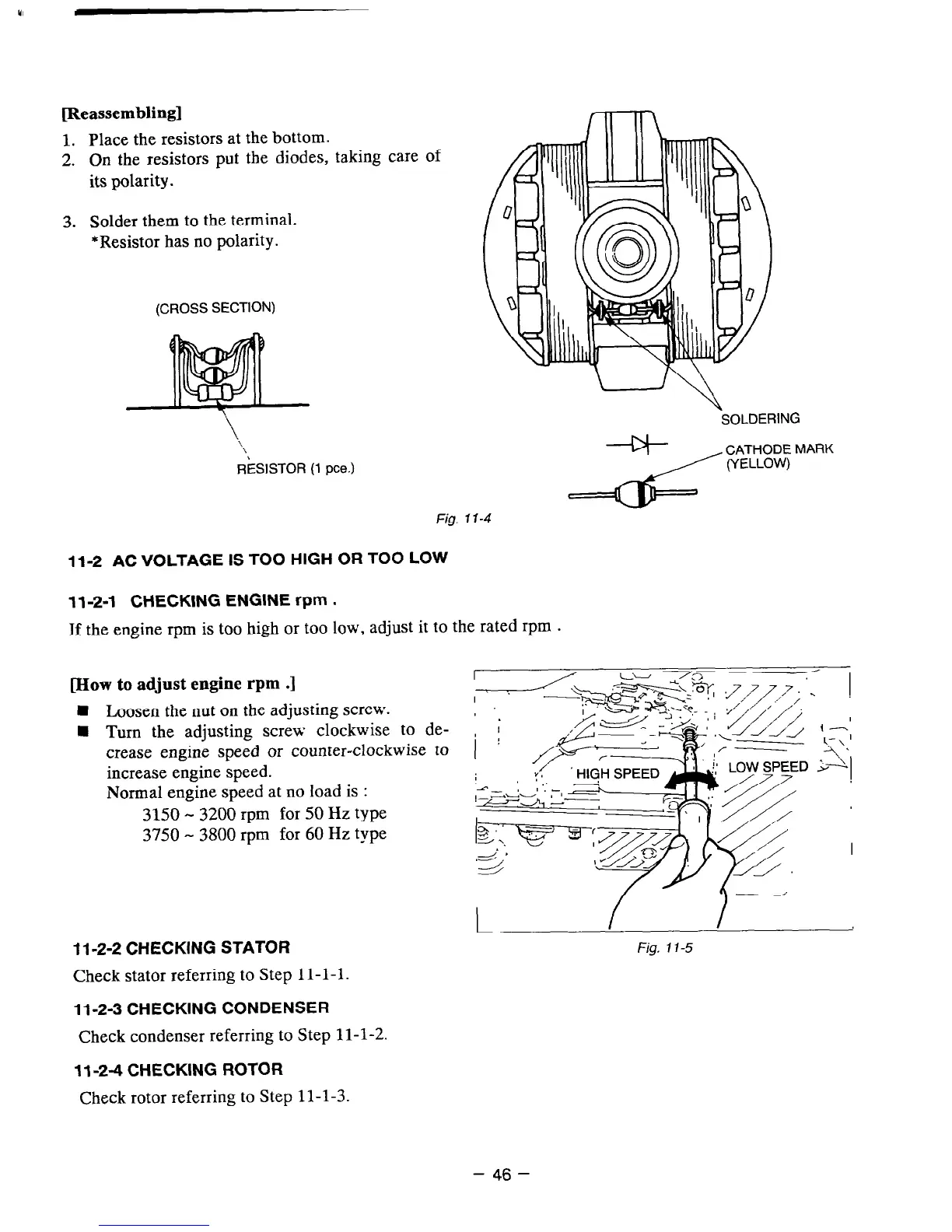

(Reassembling]
1. Place the resistors at the bottom.
2. On the resistors put the diodes, taking care of
its polarity.
3. Solder them to the terminal.
*Resistor has no polarity.
(CROSS SECTION)
RlklSTOR (1 pee.)
SOLDERING
Fig. II-4
11-2 AC VOLTAGE IS TOO HIGH OR TOO LOW
11-2-1 CHECKING ENGINE rpm .
If the engine rpm is too high or too low, adjust it to the rated rpm .
mow to adjust engine rpm .]
n
Loosen the nut on the adjusting screw.
n
Turn the adjusting screw clockwise to de-
crease engine speed or counter-clockwise to
increase engine speed.
Normal engine speed at no load is :
3150 - 3200 rpm for 50 Hz type
3750 - 3800 rpm for 60 Hz type
1 l-2-2 CHECKING STATOR
Check stator referring to Step 11-1-1.
1 l-2-3 CHECKING CONDENSER
Check condenser referring to Step 11-1-2.
11-2-4 CHECKING ROTOR
Check rotor referring to Step 11-1-3.
Fig. 1 l-5
- 46 -
