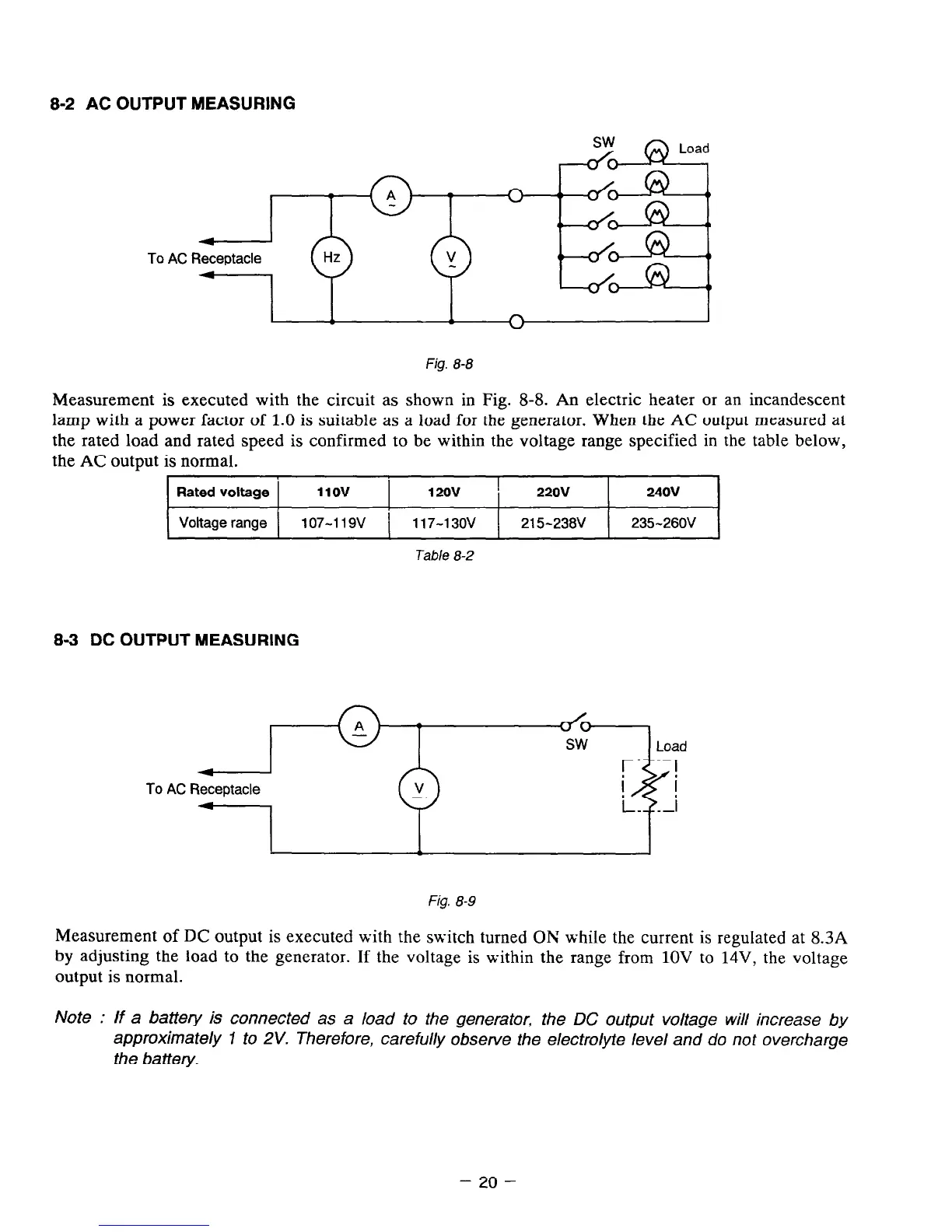

8-2 AC OUTPUT MEASURING
To
AC
Fig. 8-8
Measurement is executed with the circuit as shown in Fig. 8-8. An electric heater or an incandescent
lamp with a power factor of 1.0 is suitable as a load for the generator. When the AC output measured at
the rated load and rated speed is confirmed to be within the voltage range specified in the table below,
the AC output is normal.
Rated voltage 1lOV
120v ! 220v
240V
Voltage range 1
107-119v
i
117-130V ( 215-236V 235-260V
Table 8-2
8-3 DC OUTPUT MEASURING
4
To AC Receptacle
1
Load
Fig. 8-9
Measurement of DC output is executed with the swirch turned OK while the current is regulated at 8.3A
by adjusting the load to the generator. If the voltage is within the range from 1OV to 14V, the voltage
output is normal.
Note : If a battery is connected as a load to the generator, the DC output voltage will increase by
approximately I to 2V. Therefore, carefully observe the electrolyte level and do not overcharge
the battery.
