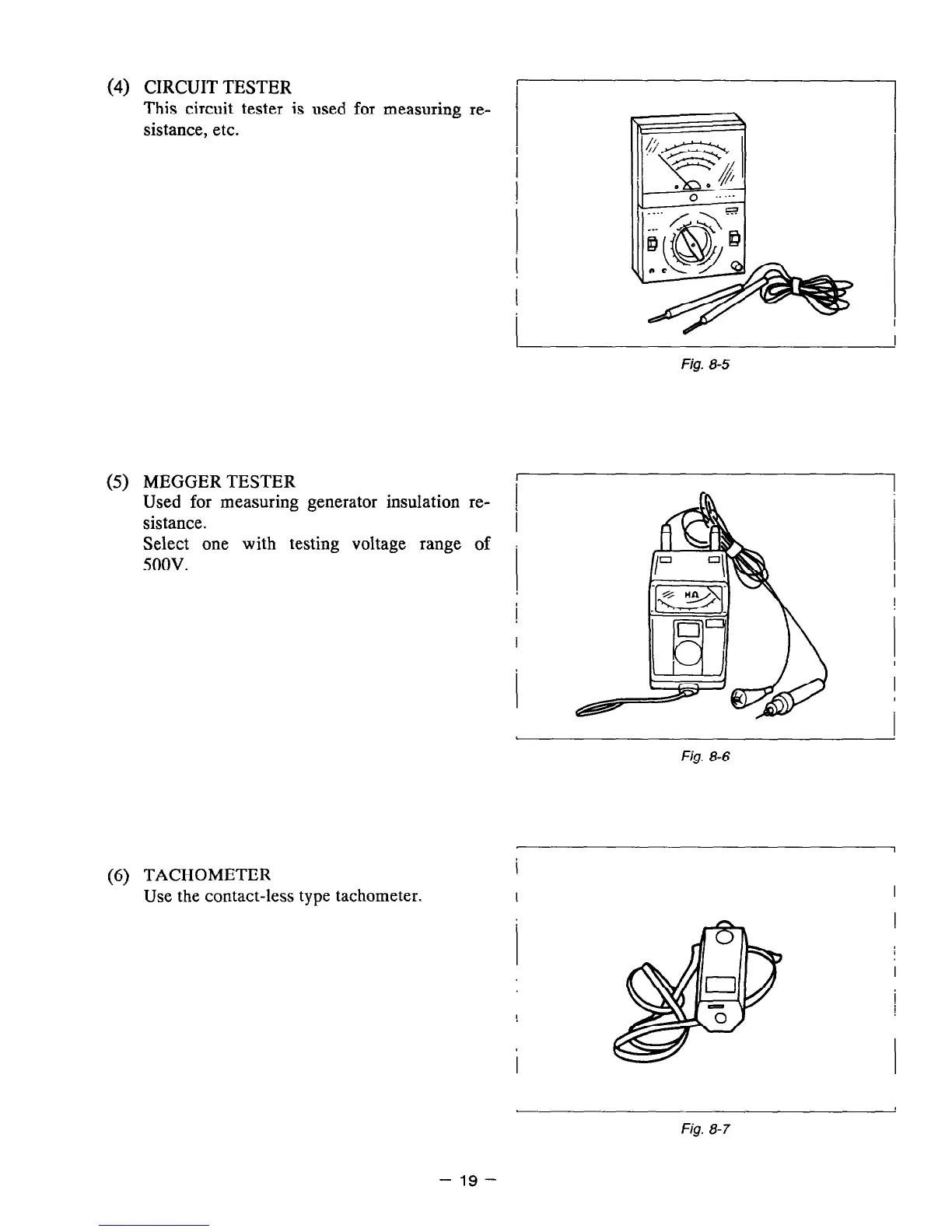

(4) CIRCUIT TESTER
I
(5)
This circuit tester is used for measuring re-
!
sistance, etc.
MEGGER TESTER
Used for measuring generator insulation
sistance.
Select one with testing voltage range
5oov.
(6) TACHOMETER
Use the contact-less type tachometer.
re-
of
Fig. 8-5
I
1
Fig, 8-6
Fig. 8-7
- 19 -
