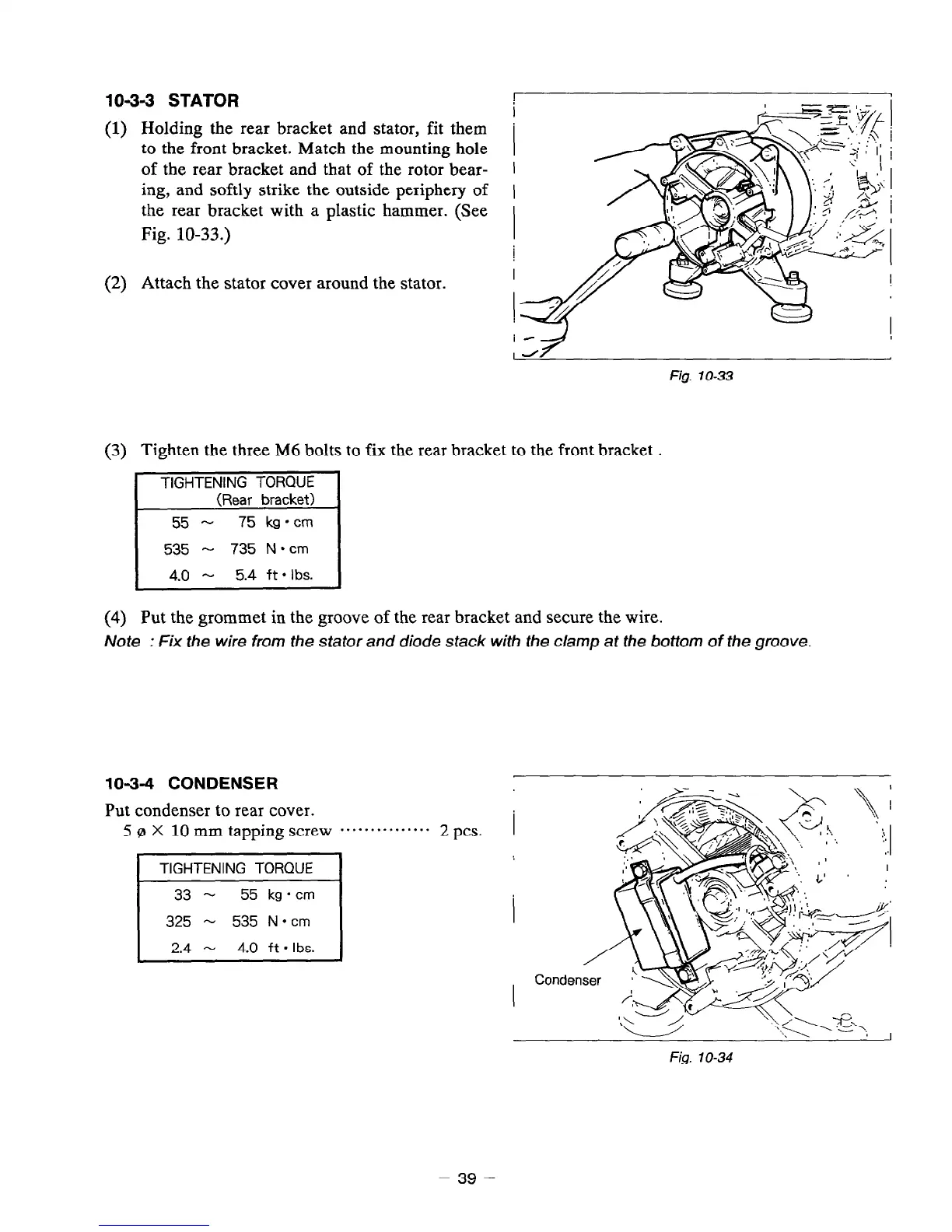

10-3-3 STATOR
(1) Holding the rear bracket and stator, fit them
to the front bracket. Match the mounting hole
of the rear bracket and that of the rotor bear-
ing, and softly strike the outside periphery of
the rear bracket with a plastic hammer. (See
Fig. 10-33.)
(2) Attach the stator cover around the stator.
Fig. lo-33
(3)
(4)
Tighten the three M6 bolts to fix the rear bracket to the front bracket .
TIGHTENING TORQUE
(Rear bracket)
55 -
75 kg-cm
535 -
735
N *cm
4.0 -
5.4
ft
l
Ibs.
Put the grommet in the groove of the rear bracket and secure the wire.
Note : Fix the wire from the stator and diode stack with the clamp at the bottom of the groove.
10-3-4 CONDENSER
Put condenser to rear cover.
5 o X 10
mm
tapping screw ...*..*-....*.- 2 PCS.
Condenser S
Fig. 1 O-34
- 39 -
