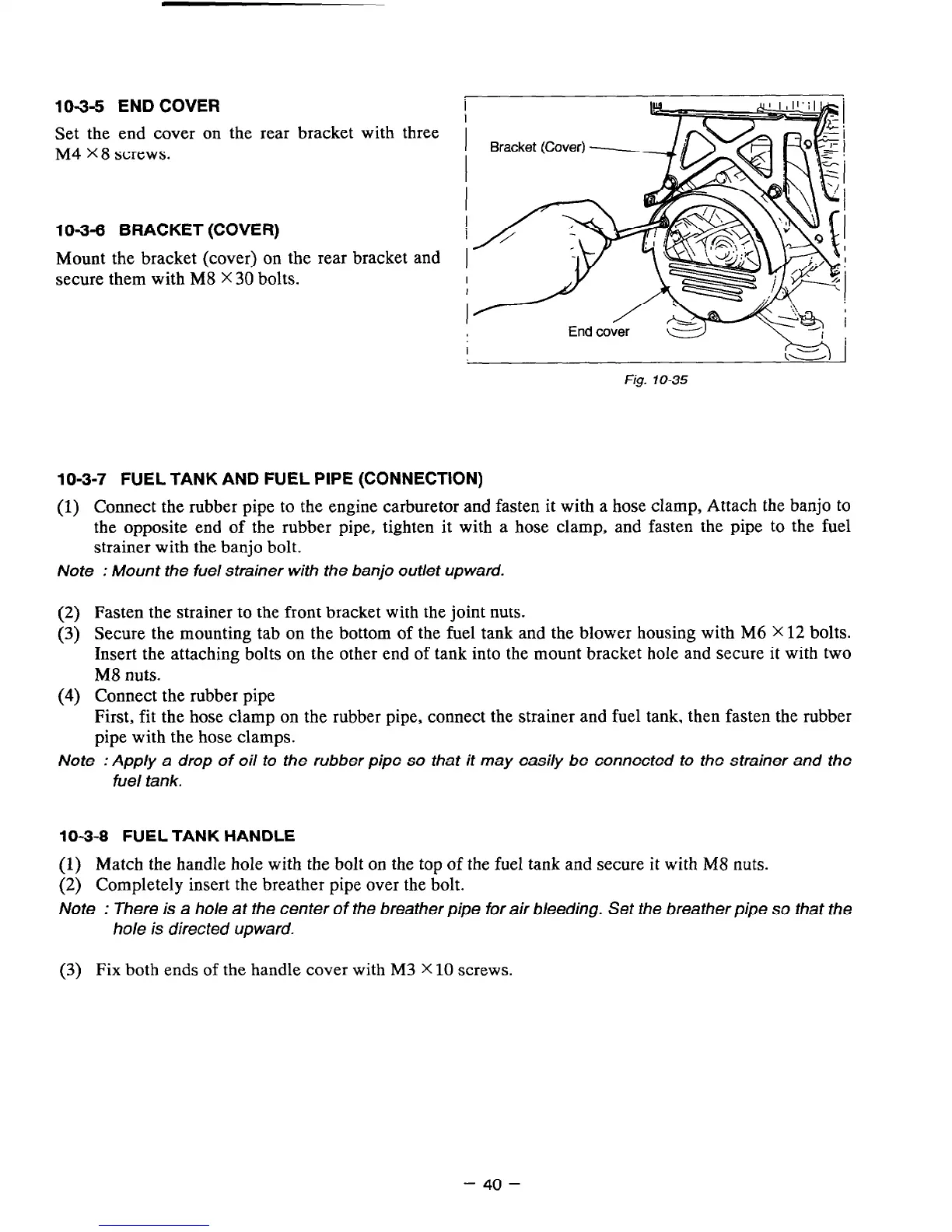

10-3-S END COVER
Set the end cover on the rear bracket with three
M4 X 8 screws.
10-3-6 BRACKET (COVER)
Mount the bracket (cover) on the rear bracket and
secure them with M8 X 30 bolts.
1 AlIz-
End cover a
\ i!
I
lCd/
Fig. 10-35
10-3-7 FUEL TANK AND FUEL PIPE (CONNECTION)
(1) Connect the rubber pipe to the engine carburetor and fasten it with a hose clamp, Attach the banjo to
the opposite end of the rubber pipe, tighten it with a hose clamp, and fasten the pipe to the fuel
strainer with the banjo bolt.
Note : Mount the fuel strainer with the banjo outlet upward.
(2) Fasten the strainer to the front bracket with the joint nuts.
(3) Secure the mounting tab on the bottom of the fuel tank and the blower housing with M6 X 12 bolts.
Insert the attaching bolts on the other end of tank into the mount bracket hole and secure it with two
M8 nuts.
(4) Connect the rubber pipe
First, fit the hose clamp on the rubber pipe, connect the strainer and fuel tank, then fasten the rubber
pipe with the hose clamps.
Note : Apply a drop of oil to the rubber pipe so that it may easi/y be connected to the strainer and the
fuel tank.
10-3-8 FUEL TANK HANDLE
(1) Match the handle hole with the bolt on the top of the fuel tank and secure it with M8 nuts.
(2) Completely insert the breather pipe over the bolt.
Note : There is a hole at the center of the breather pipe for air bleeding. Set the breather pipe so that the
hole is directed upward.
(3) Fix both ends of the handle cover with M3 X 10 screws.
