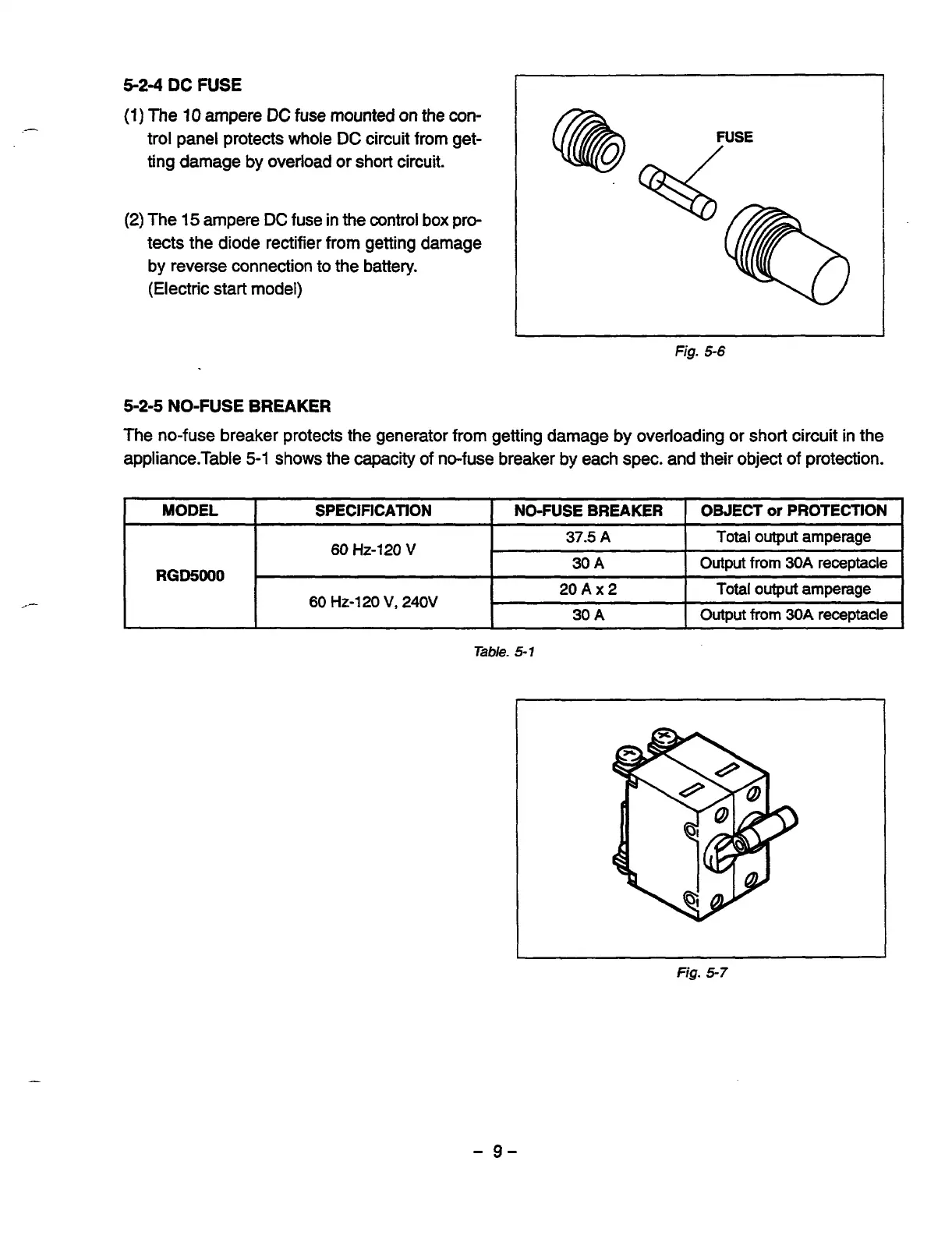

5-24
DC
FUSE
(1)
The
10
ampere
DC
fuse mounted on the con-
trol panel protects whole
DC
circuit from get-
ting damage by overload or short circuit.
(2)
The 15 ampere
DC
fuse in the control box pro-
tects the diode rectifier from getting damage
by reverse connection to the battery.
(Electric start model)
5-2-5
NO-FUSE
BREAKER
L
Fig.
5-6
The
no-fuse breaker protects the generator from getting damage by overloading or short circuit in the
appliance.Table 5-1 shows the capacity
of
no-fuse breaker by each spec. and their object
of
protection.
/-
MODEL
OBJECT
or
PROTECTION
NO-FUSE
BREAKER
SPECIFICATION
60
HZ-120
V
37.5
A
Total
output
amperage
RGD5000
30
A
Output
from
30A
receptacle
20Ax2
Total
output
amperage
60
HZ-120
V,
240V
30
A
Output
from
3OA
receptacle
Table.
5-1
Fig.
5-7
-
9-
