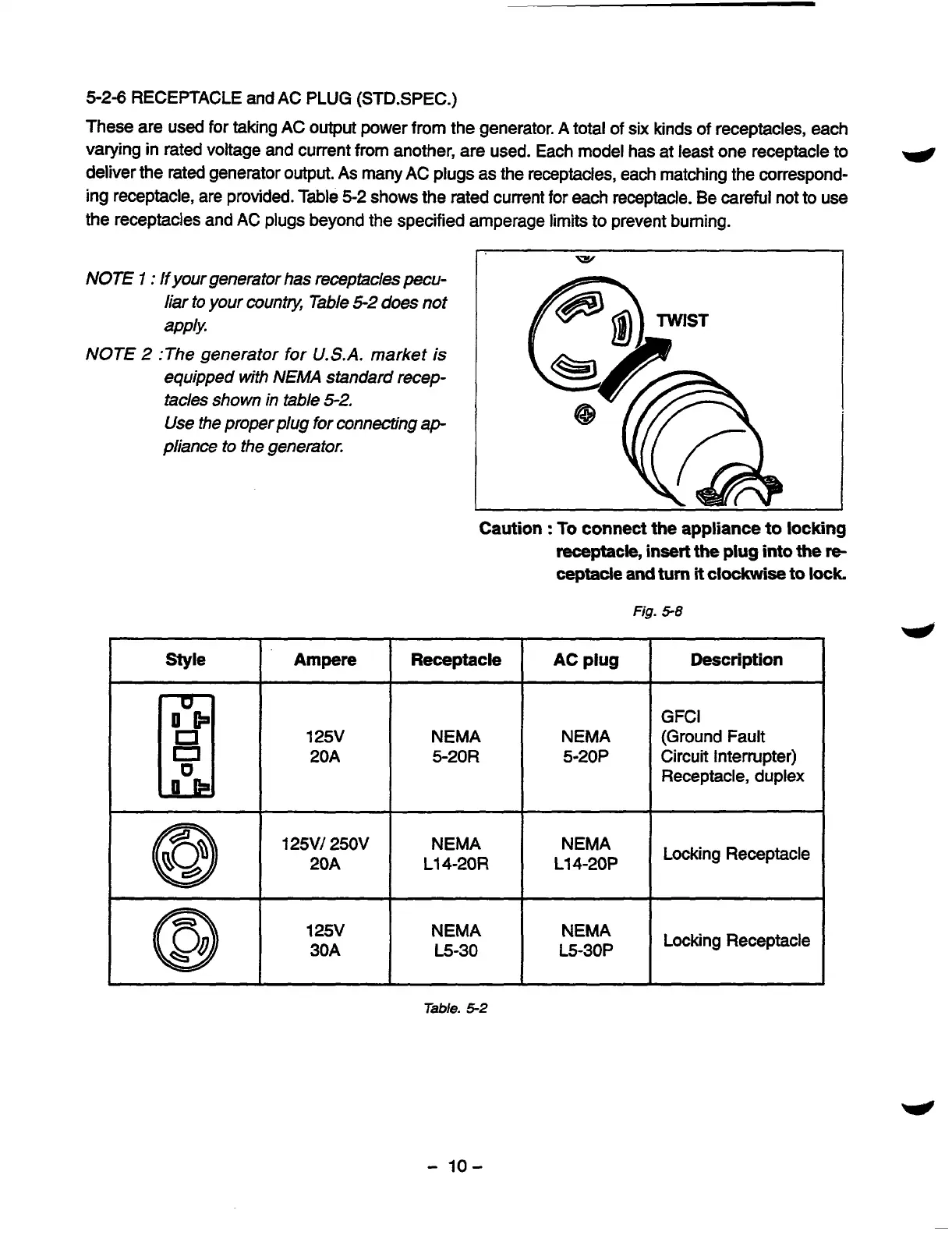

5-2-6
RECEPTACLE
and
AC
PLUG
(STD.SPEC.)
These are
used
for taking
AC
output
power from the generator.
A
total
of
six kinds
of
receptacles, each
varying in rated voltage and current from another, are used. Each model has at least one receptacle to
deliver the rated generator
output.
As
many
AC
plugs
as
the receptacles, each matching the correspond-
ing receptacle, are provided. Table 5-2 shows the rated current for each receptacle. Be careful not to use
the receptacles and
AC
plugs beyond the specified amperage limits to prevent burning.
w
NOTE
1
:
If your generator has receptacles pecu-
liar to your country, Table
5-2
does
not
apply.
NOTE
2
:The generator for
U.S.A.
market is
equipped
with
NEMA
standard recep-
tacles shown in table
5-2.
Use
the
proper
plug
for connecting
ap-
pliance to the generafoE
I'
W
Caution
:
To
connect the appliance
to
locking
receptacle,
insert the
plug
into
the
re
ceptacle
and
turn
it
clockwise
to
lock
Fig.
5-8
style
Description
AC
plug
Receptacle
Ampere
El
30A
@
20A
@
20A
GFCI
125V
(Ground Fault
NEMA
NEMA
5-20R Circuit Interrupter)
5-20P
Receptacle, duplex
125V/ 250V
NEMA
L14-20R
L14-20P
NEMA
Locking Receptacle
125V
NEMA
E-30
L5-30P
NEMA
Locking Receptacle
Table.
5-2
-
10-
