Robin RGD500 User Manual

Description I Remarks
Neasssrytoal
7

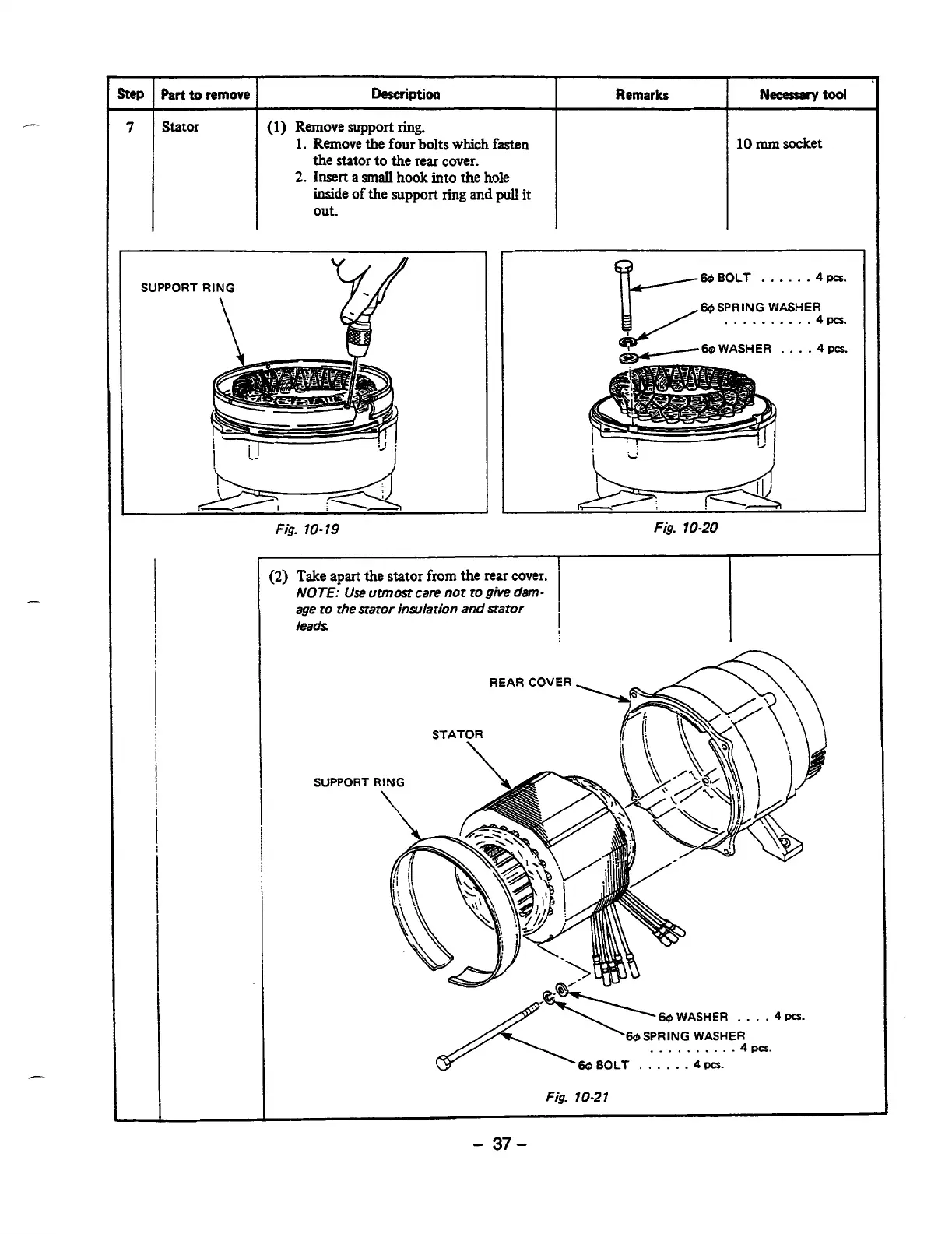

Stator
(1) Remove support ring.
1. Remove the four bolts which fasten
2. Insert a small hook into the hole
the stator to the rear cover.
inside of the support ring and pull it
out.
I
10 mm socket
@BOLT ...... 4pa.
.........
&SPRING WASHER
..%pes.
60 WASHER .... 4 pa.
Fig. 10-20
I I
(2) Take apart the stator from the rear cover. ’
NOTE: Use utmost care not to give dam- I
age to the stator insulation and stator I
leads I
SUPPORT
.........
‘@SPRING WASHER
.4 pes.
60 BOLT ...... 4 pcs.
Fig. 10-2 7
- 37-
