Robinsons Regent - Page 16

16

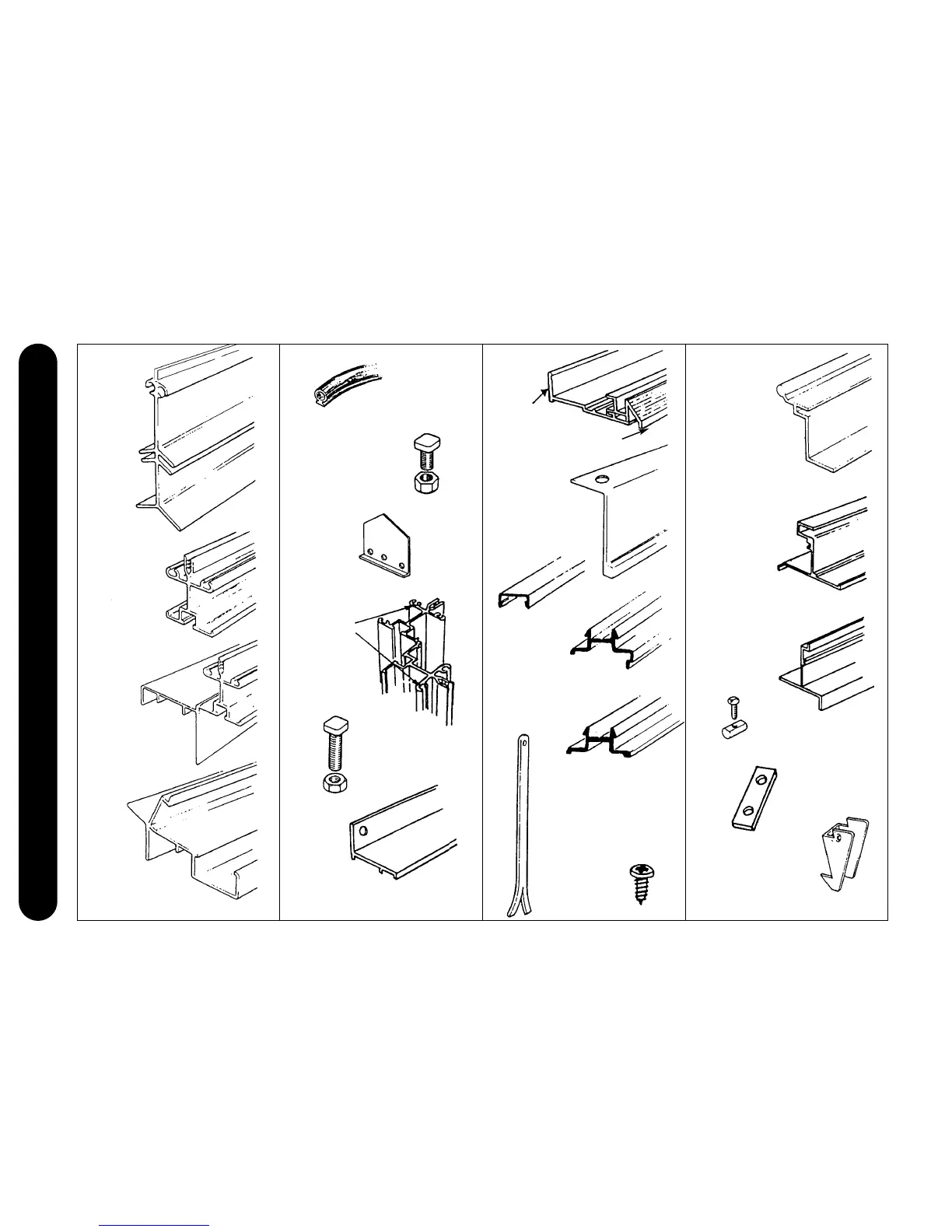

IDENTIFICATION CHART
1. Ridge
member
R118
5. PVC glazing strip
D231
11. Door and
plain end gable
base rail R174
18.Vent hinge
D866
19.Vent side
D863
20.Vent cill
D862
21.Vent stop D220
Screw FS6060
22.Slam rail cleat and
base rail joint plate
D114
23.Vent closure
D205
12.Plain end purlin
member R005
13.Bar cap cover
R317
14.Corner bar
capping R318
15.Standard bar
capping R316
16.Base anchor D106
17.No 8 x 12mm
self tapping
Pozidrive
screws
FS6017
Door guide (door end only)
D860 S/D, D861 D/D
6. Short square headed
bolt F5002
nut F5006
7. Apex
gusset
plate
D111
8. Corner
glazing bar
D048
9. Long square
headed bolt F5003
nut F5006
10.Side base rail
R125
inside
grooves
2. Glazing bar
R112
3. Roof end
glazing bar
R120
4. Eaves gutter
R128
I.D. Chart
