Robitronic Expert LD 80 - 6.3 Fast Charging Lithium Battery

-
34
-
‘> 3 seconds’
START
ENTER
SELECT
STOP
‘> 3 seconds’
START
ENTER
SELECT
STOP
‘> 3 seconds’
START
ENTER
SELECT
STOP

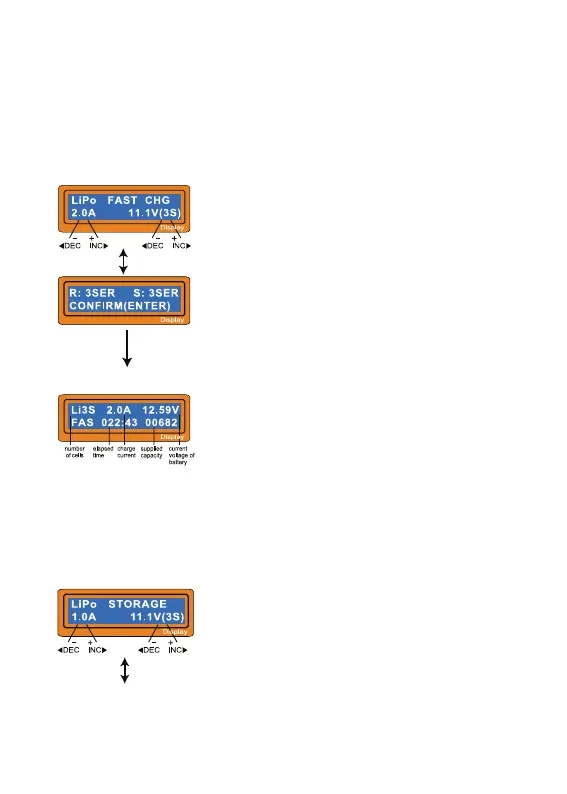

You can set up the current and the voltage of the
battery pack to be charged. The current will be used
for charge or discharge the battery to reach the
'storage' level of voltage.
6.4 'STORAGE' control Lithium battery
This is for charging or discharging Lithium battery not to be used for the time
being. The program will determine to charge or discharge the battery to the
certain voltage depending on the voltage of the battery at its initial stage. They
are different from the type of the battery, 3.70V for Lilo, 3.80V for LiPo, 3.85V for
LiHv and 3.3V for LiFe per cell. If the voltage of battery at its initial stage is over
the voltage level to storage, the program will start to discharge.
You can set up the charging current and the voltage
of the battery pack being charged. As you press
START/ENTER button the voltage confirmation will
be displayed. And then, if you confirm the voltage
and current, press START/ENTER button again to
start charging.
This shows the number of cells you set up and the
processor detects. ' R: ' shows the number of cells
found by the charger and ' S:' is the number of cells
selected by you at the previous screen. If both
numbers are identical you can start charging by
press START/ENTER button. If not, press
SELECT/STOP button to go back to previous
screen. Then carefully check the number of cells of
the battery pack to charge again.
This shows the present state of 'FAST' charging. To
stop charging arbitrary, press SELECT/STOP key
once.
6.3 'FAST' charging Lithium battery
The charging current is getting smaller as the process goes to the near end term
of Lithium battery charging. To finish charging process earlier, this program
eliminate certain term of CV process. Actually, the charging current will goes to
1/5 from the initial value to end the process while the normal chaging goes to 1/10
during CV term. The charging capacity may be a bit smaller than normal charging
but the process time will be reduced.
