Chapter 2-8
Robomow RL555, RL855, RL2000

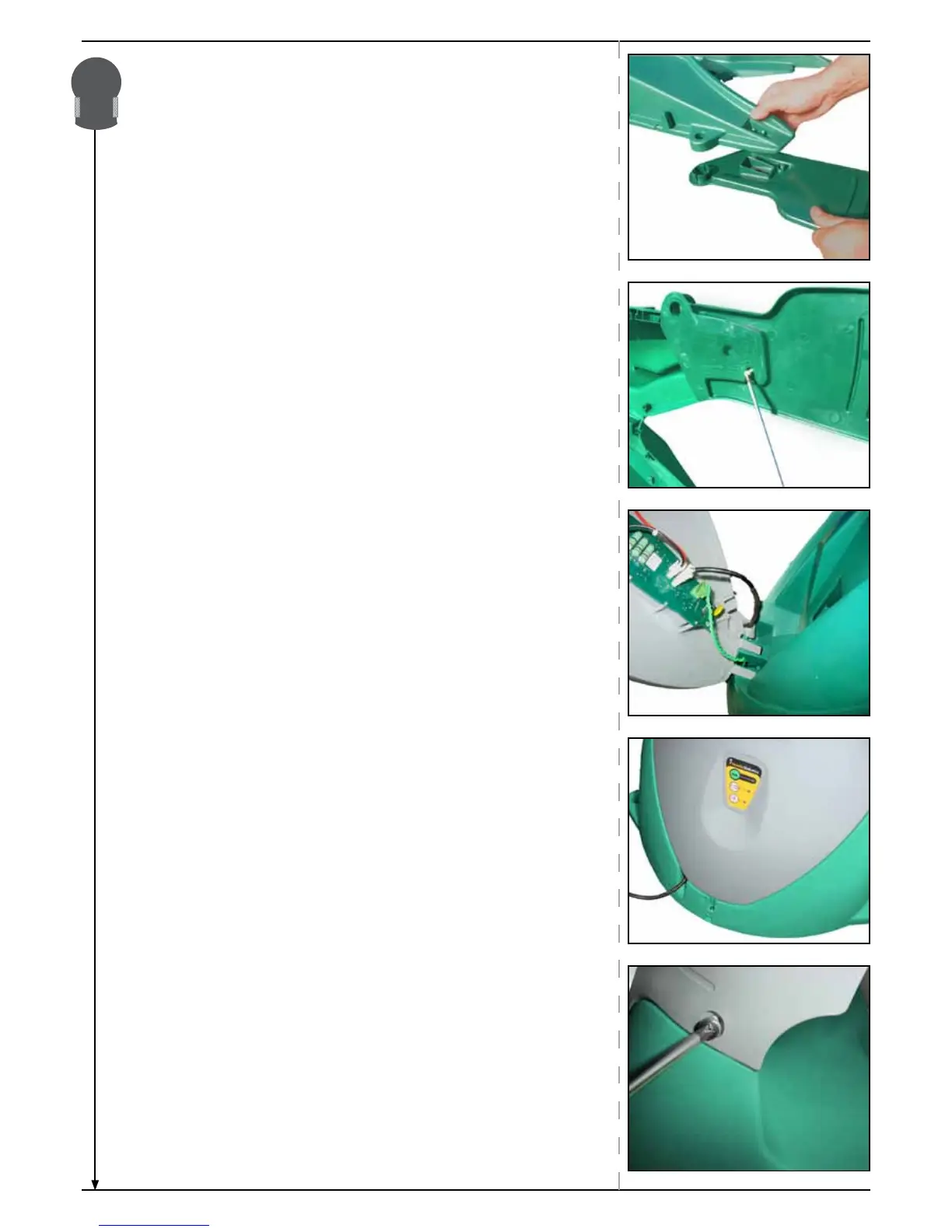

P Drive Wheel Supports to Base:
Align each Drive Wheel Supports with the Station base.
Push the base down until it snaps into place.
Flip them and drive the screw into the hole in each Drive Wheel
Support.
Tighten lightly with a Phillips screwdriver.
Base Station Cover and base:
P Align the two tabs on the lower part of the cover with the
matching openings in the lower section of the base front.
P Push the cover’s tabs carefully into the openings.
P At the same time, attach connectors of Perimeter Wire and Power
Extension Cord onto the Base Station Board
.
P Pivot the cover towards the base.
Verify that power supply cable extends through the notch in the base.
P Screw the top section of the cover, to each side of the Base Assembly.
Use the two supplied screws.
Tighten lightly with a Phillips screwdriver.
Carefully, spread the length of the power supply extension cord.
Start at Base Station leading to the main power supply.
