Chapter 3-3
Preparing Robomow
3.3 Setting The Cutting Height And Ground Clearance
Caution! Always remove the Power Pack before lifting mower off
the ground or making any adjustments.
3.3.1 Setting cutting height
Low cut blades: 26 – 63 mm (1 – 2.5 inches)
Low cut using small wheels (not available in US): 20 – 57 mm (0.75 – 2.25 inch)
High cut blades (US customers): 38 – 89 mm (1.5 – 3.5 inch)
) Turn the front wheel hub clockwise (for lower cut) or
counterclockwise (for higher cut).
Each click represents 6 mm (1/4 inch) of cutting height.
This raises or lowers the front wheel.
Warning
Severe injury hazard!
Never lift the mower or attempt to adjust the cutting height during
operation. Blades are very sharp. They can cause severe cuts or
lacerations.
When working around or near the blades always wear heavy gloves.
3.3.2 Setting rear ground clearance
P Pull the height adjustment tab located in the Power Pack compartment.
P Slide the tab to its upper position – for low ground clearance. Slide the
tab down – for high level of ground clearance.
P If your Robomow has small wheels (not available in the US) the tab has
an additional lower position.
It is recommended to set for maximum clearance – tab near base of Power
Pack compartment.
For European lawns and for lawns where grass is cut extremely low, less than 5
cm (2 inches): Setting to minimum level may work best.

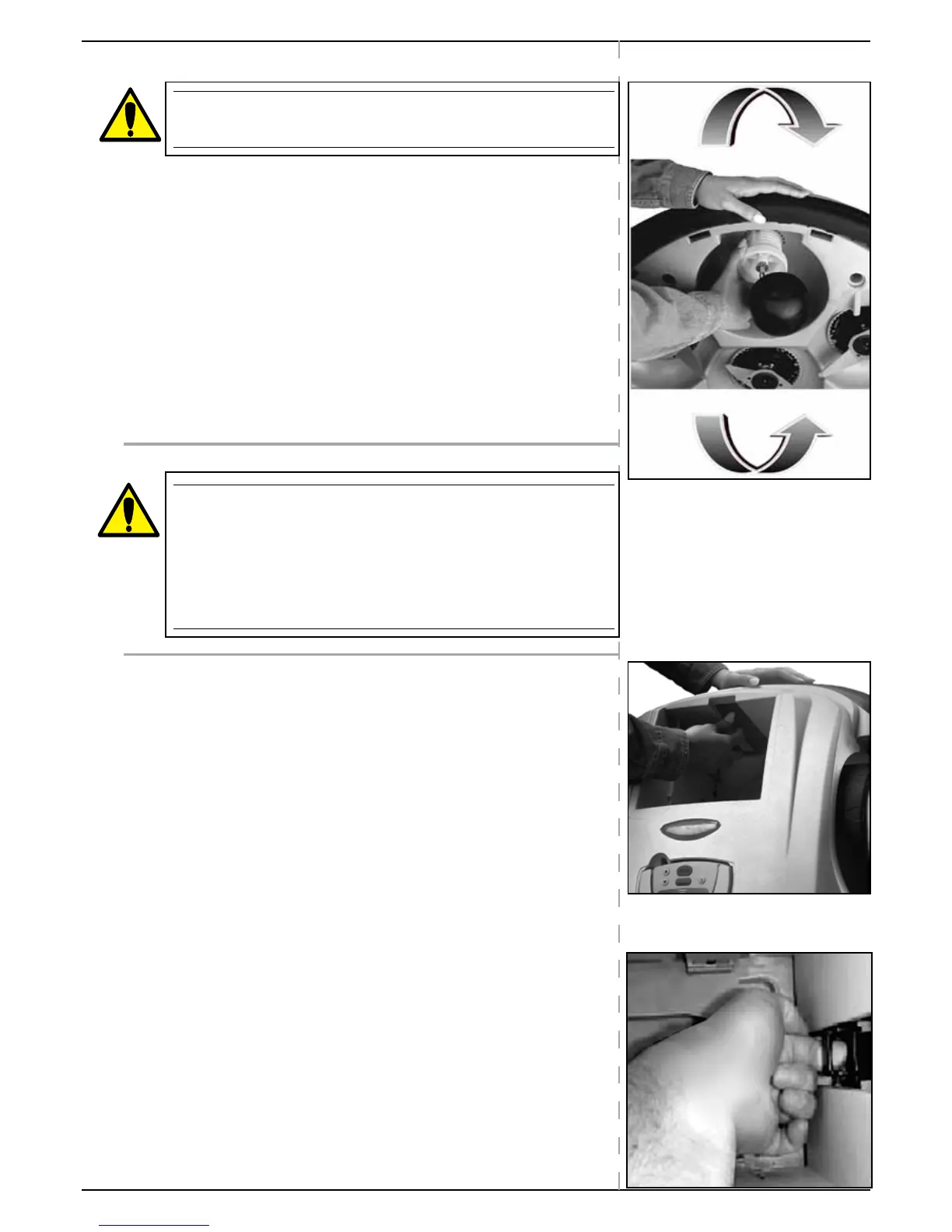

Rear ground height adjustment is located
in the Power Pack compartment.
To adjust ground clearance, pull out on
tab as shown and slide tab up or down.
Clockwise for lower cut
Counterclockwise for higher cut
