4 Unboxing & Installation
4.1 Standard Package
The table below lists the contents of a standard RS-Helios-16P package from the factory.
Table 3 Standard Factory Package of the RS-Helios-16P
No.
Contents
SPEC/QTY
1
LiDAR
RS-Helios-16P*1
2
Interface Box
3M *1
3
Power Adapter
DC12Vx3.34A/40W *1
4
Power Cable
1.2M *1
5
Ethernet Cable
1.5M *1
6
Screw Pack
M3X8 *4, M3X12 *4
Note: There might be variants of the sensor and accessories that you are going to purchase or interested in, please
confirm the details with RoboSense Sales.
4.2 Sensor Mounting

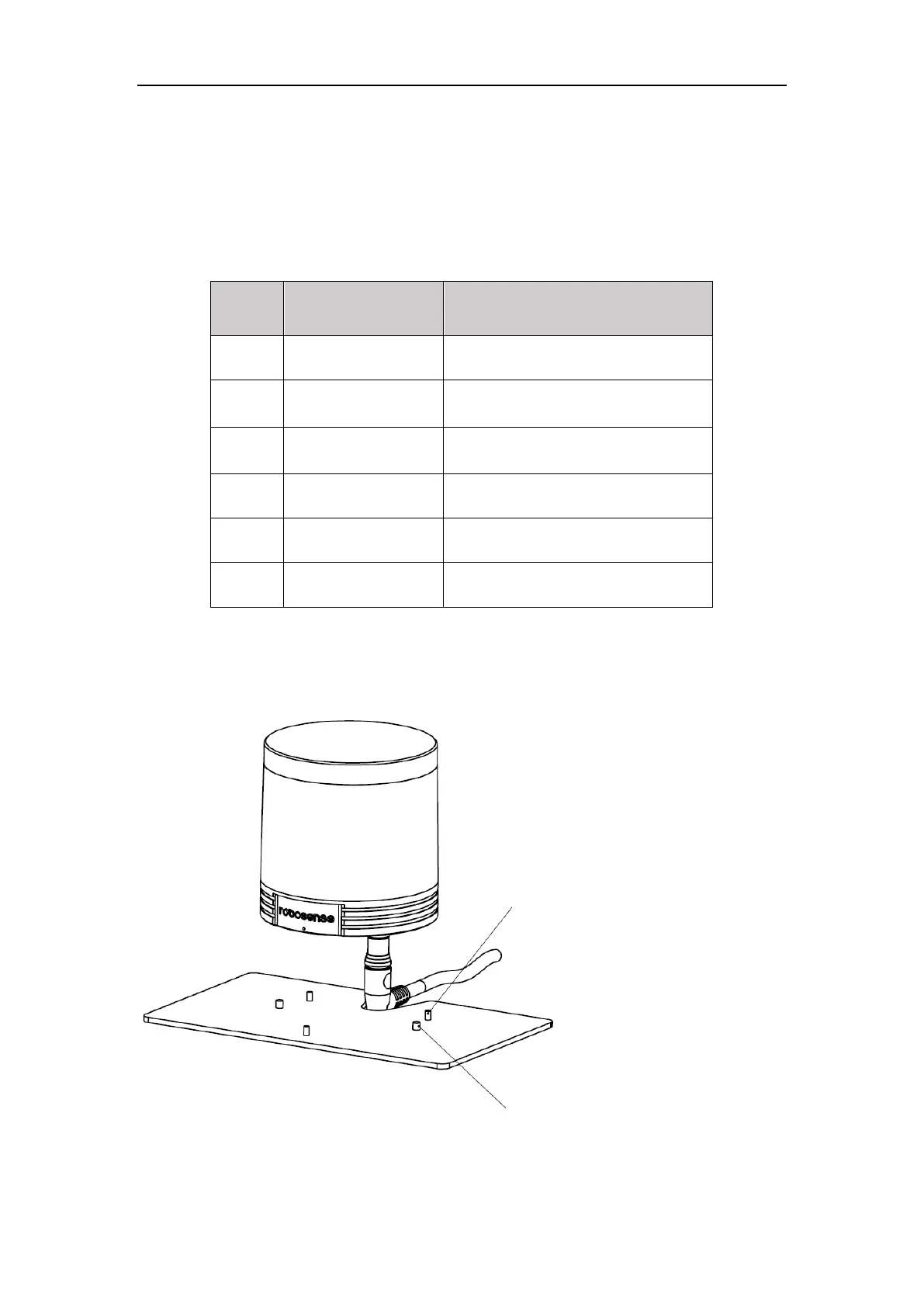

Figure 4 LiDAR Mounting Details
3xM3 Screws, 4-5mm above mounting surface;
13±1kgf.cm recommended tightening torque
2xΦ4 locating pins, 4-5mm above mounting surface
