Robotiq Hand-E Gripper Instruction Manual

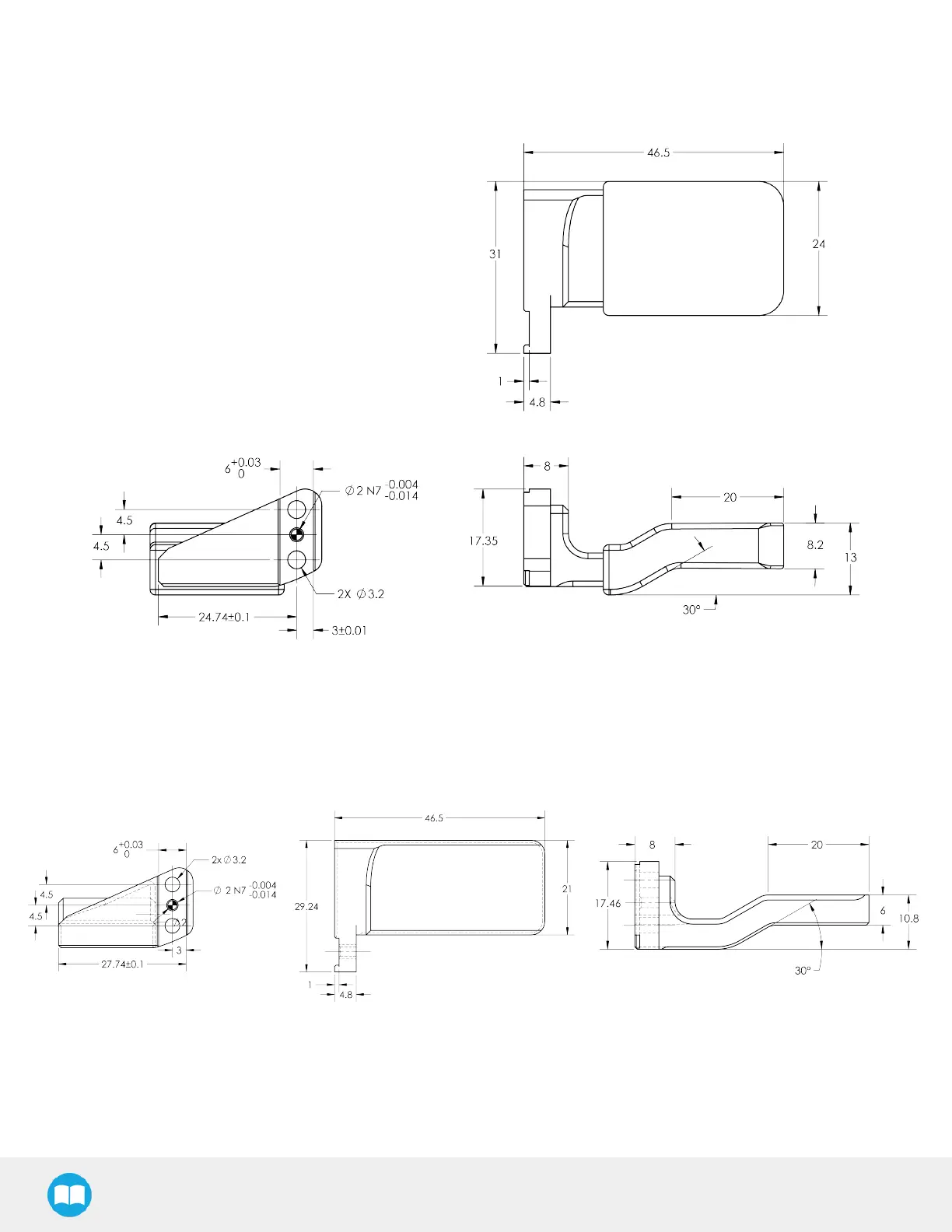

Flat Rubber (NBR)Overmolded Fingers
The figure below represents flat rubber (NBR) overmolded fingers (HND-FIN-MLD-KIT). For details, see the Spare Parts, Kits and
Accessories section. This finger allows a 50 mm stroke.
Fig. 5-6: Flat NBRovermolded finger.
Flat Aluminum Finger
The figure below represents a flat aluminum finger (HND-FIN-ALU-KIT). For more details, refer to the Spare Parts, Kits and
Accessories section. This finger allows a 50 mm stroke.
Fig. 5-7: Flat aluminum finger.
