ROBOTIQ HAND-E - 1.1. Gripper nomenclature

Robotiq Hand-E Gripper Instruction Manual
The user can install fingers directly on the racks, or fasten fingertips to fingertip holders, which are in turn installed on the racks.
Refer to the Installing the Gripper on the Robot section for more information on how to integrate custom fingers and fingertips to
Hand-E.

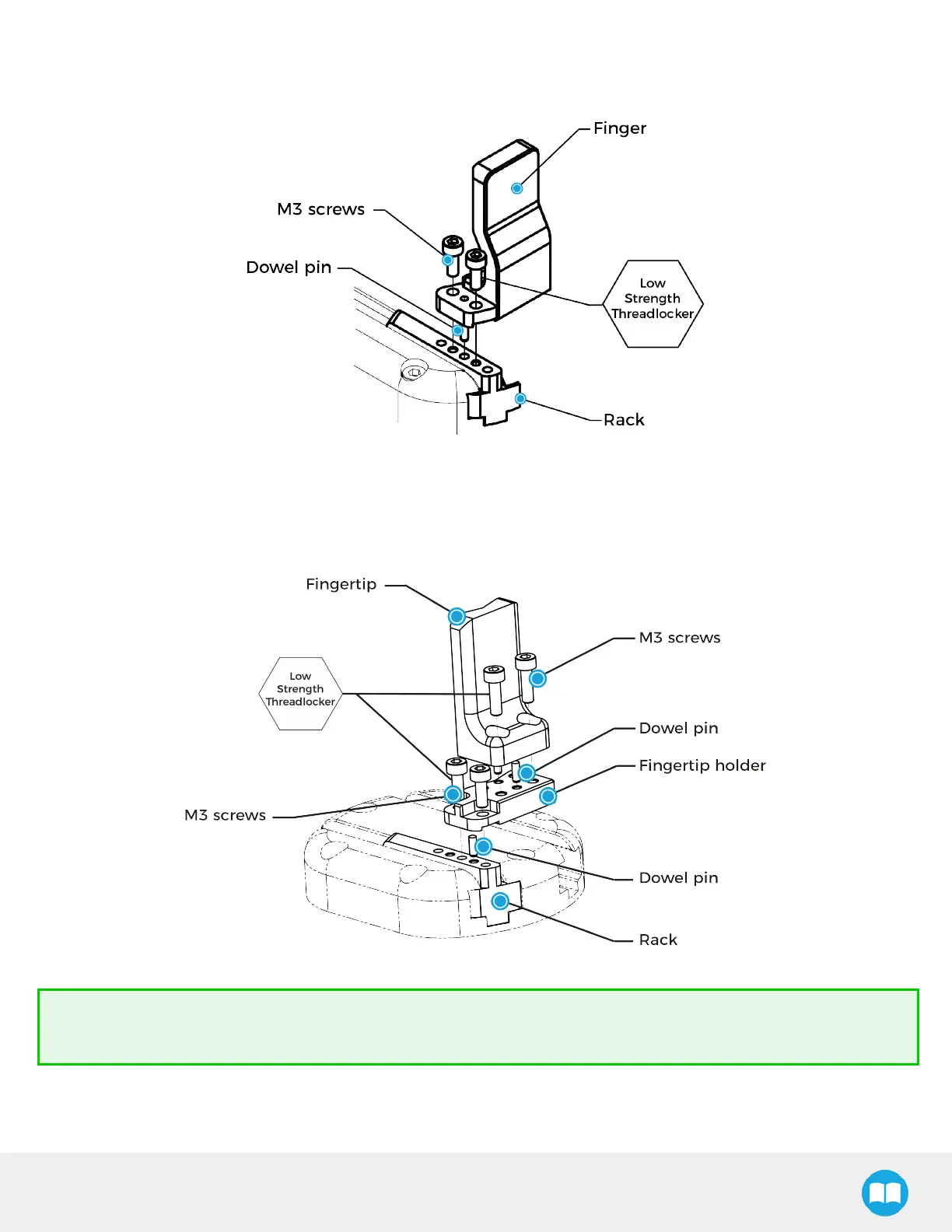

Fig. 1-2: Mounting a finger on a rack.
When ordered as a kit (please refer to the Scope of Delivery section), a fingertip starting kit is included (please refer to the Spare
Parts, Kits and Accessories section). These fingertips should be mounted onto fingertip holders.
Fig. 1-3: Mounting a fingertip on a fingertip holder (example).
Tip
You can customize fingers and fingertips. Mount custom fingers on racks, and fingertips on fingertip holders.
