Rockchip RK3566 EVB2 - Functional Modules Layout; Power on, power off and Standby

RK3566 EVB2 User Guide
Copyright 2021 @ Rockchip Electronics Co., Ltd. 4
Functions
Usable or not
UART
（
3 Port
）
YES
JTAG Interface
YES
System Key
YES
1.3.4 Functional Modules Layout
EVB functional interfaces layout are showed as follows：

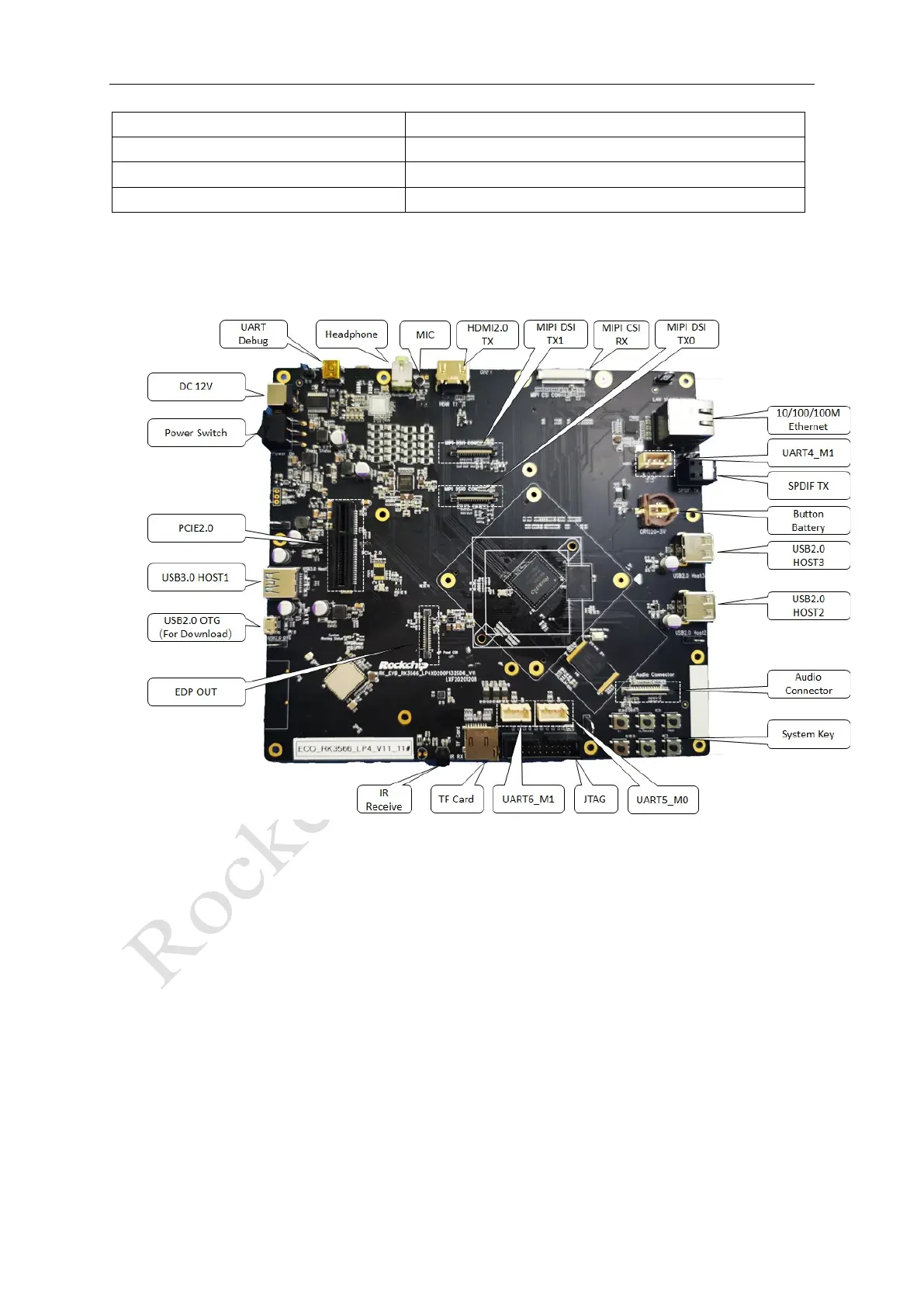

Figure 1-3 EVB TOP Surface
