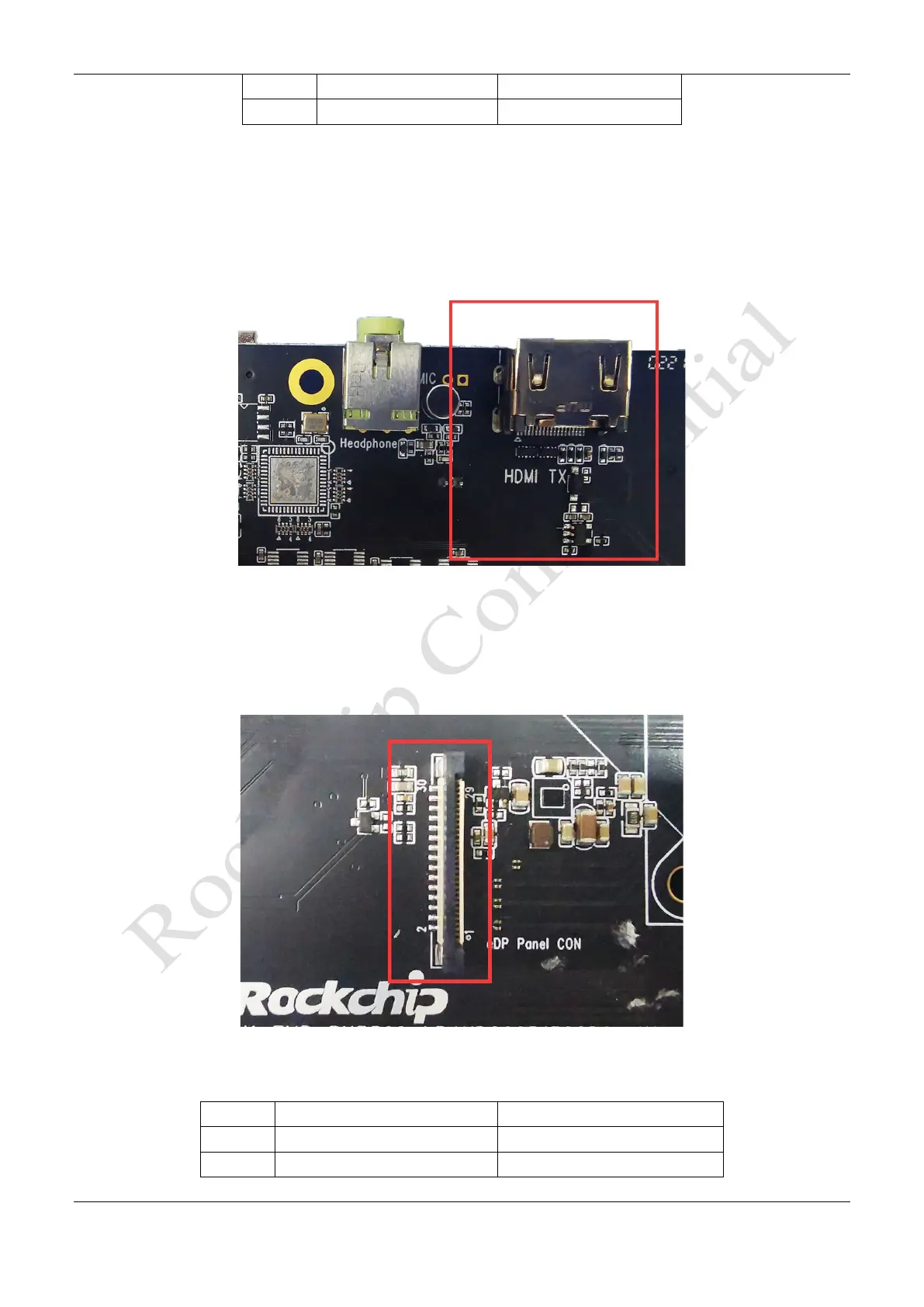

3.14 HDMI Output Interface
The development board supports HDMI output with HDMI2.0 protocol, supports up to 4K@60Hz, and HDMI A type
output interface.
Figure 3-15 HDMI Output Interface
3.15 eDP Output Interface
The eDP output interface uses a vertical connector with a pitch of 1mm.
Figure 3-16 eDP Video Output Interface
The signal sequence of the eDP video output interface is as follows:
Table 3-4 eDP Video Signal Definition
