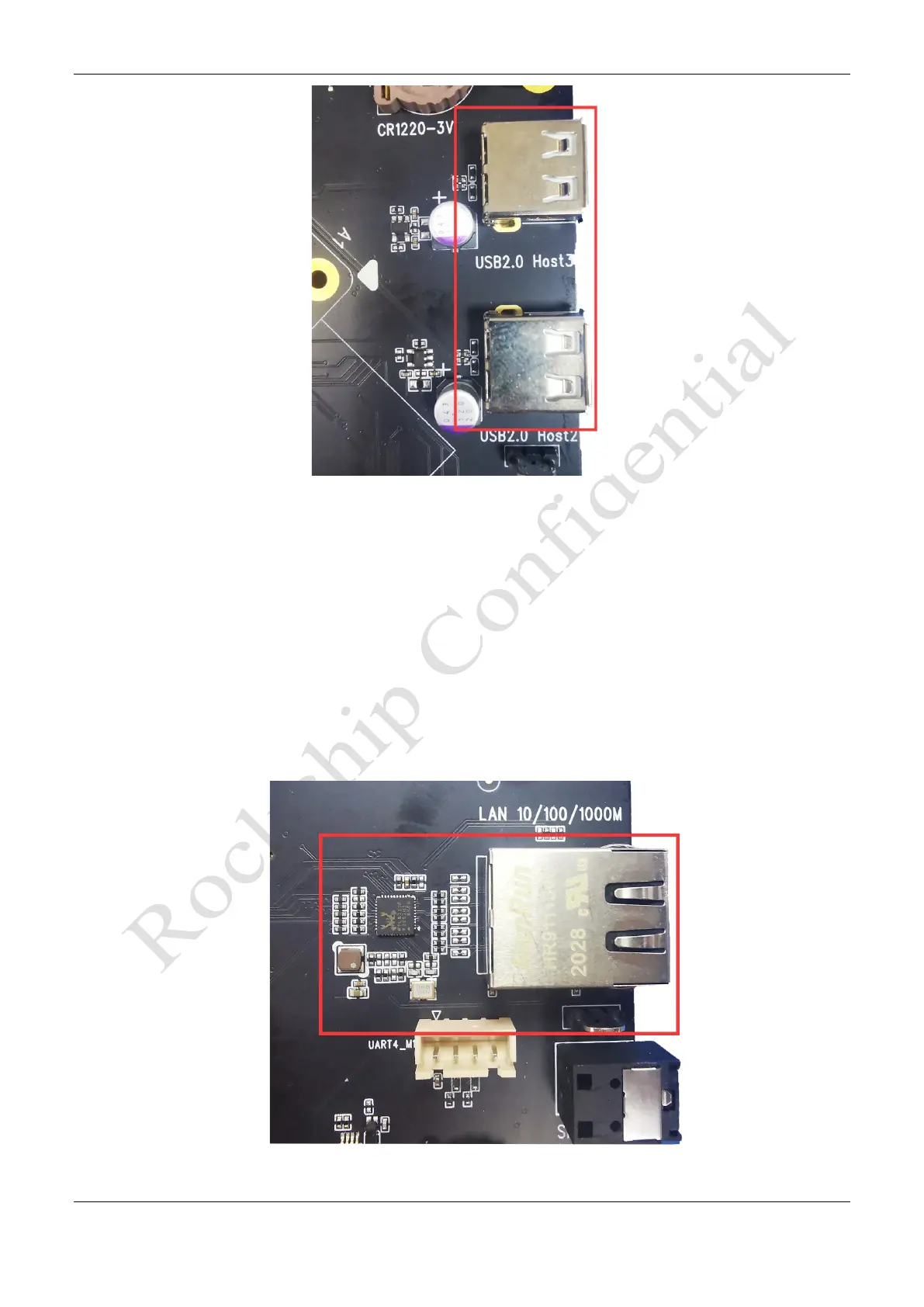

Figure 3-24 USB2.0 HOST2/3 Interface
3.19 Ethernet Interface
The development board supports one RJ45 interfaces and provide Gigabit Ethernet connections. Use the Gigabit
Ethernet MAC integrated inside RK3566 and are connected to an external PHY chip with the model of RTL8211F-
CG, and the features are as follows:
⚫ Compatible with IEEE802.3 standard, support full-duplex and half-duplex operation, support cross detection
and self-adaptation.
⚫ Support 10/100/1000M data rate.
⚫ The interface uses RJ45 interface units with isolation transformer and indicator light
Figure 3-25 RJ45 Interface
