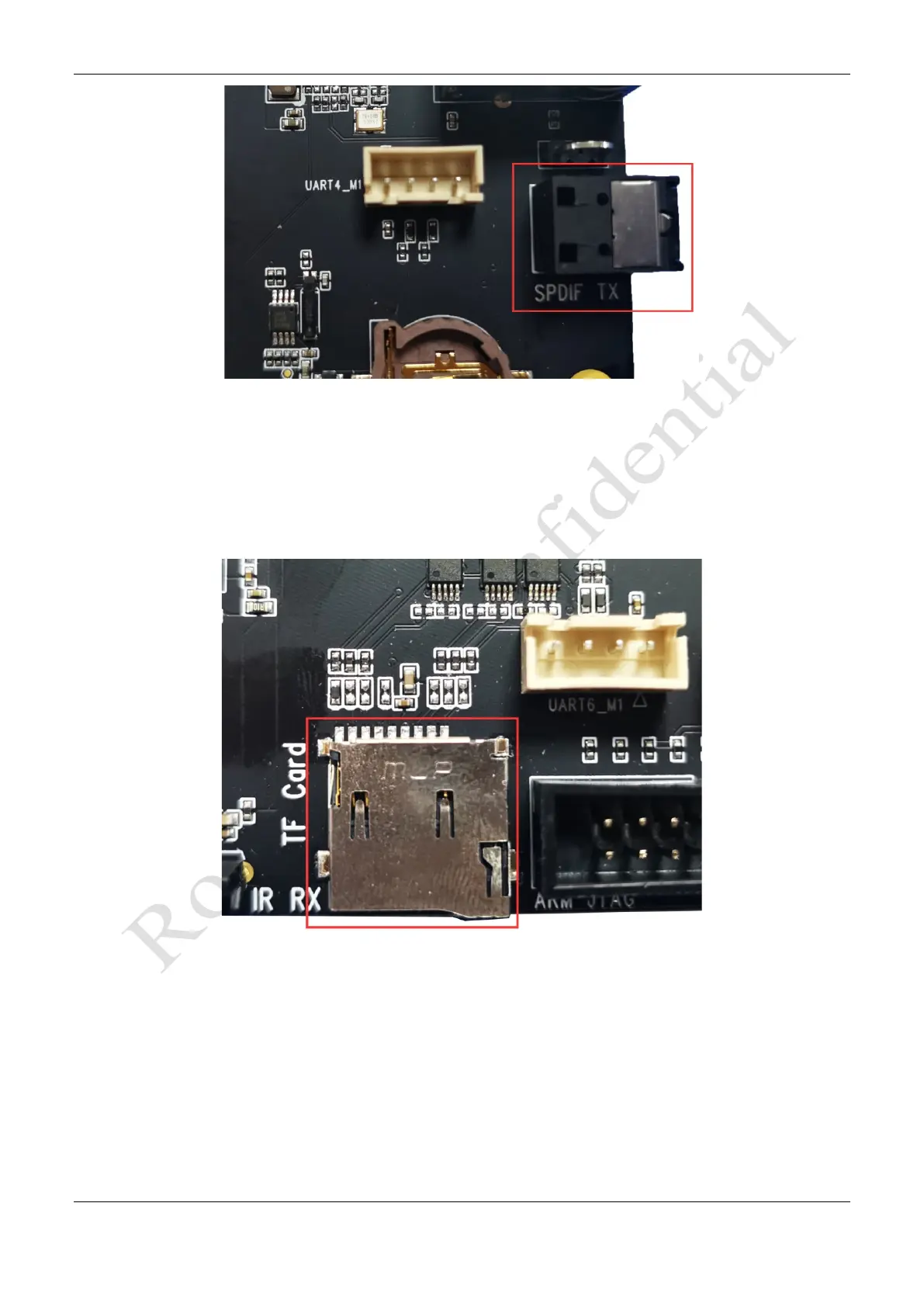

Figure 3-11 SPDIF Audio Interface
3.11 TF Card Interface
TF Card is SDMMC0 interface, which is used to extend the system memory, the data bus width is 4bits, and supports
SDMMC3.0 protocol.
Figure 3-12 TF Card Interface
3.12 MIPI Input Interface
The MIPI video input interface connected a horizontal connector with a pitch of 0.5mm.
