RK3566 EVB2 User Guide
Copyright 2021 @ Rockchip Electronics Co., Ltd. 14

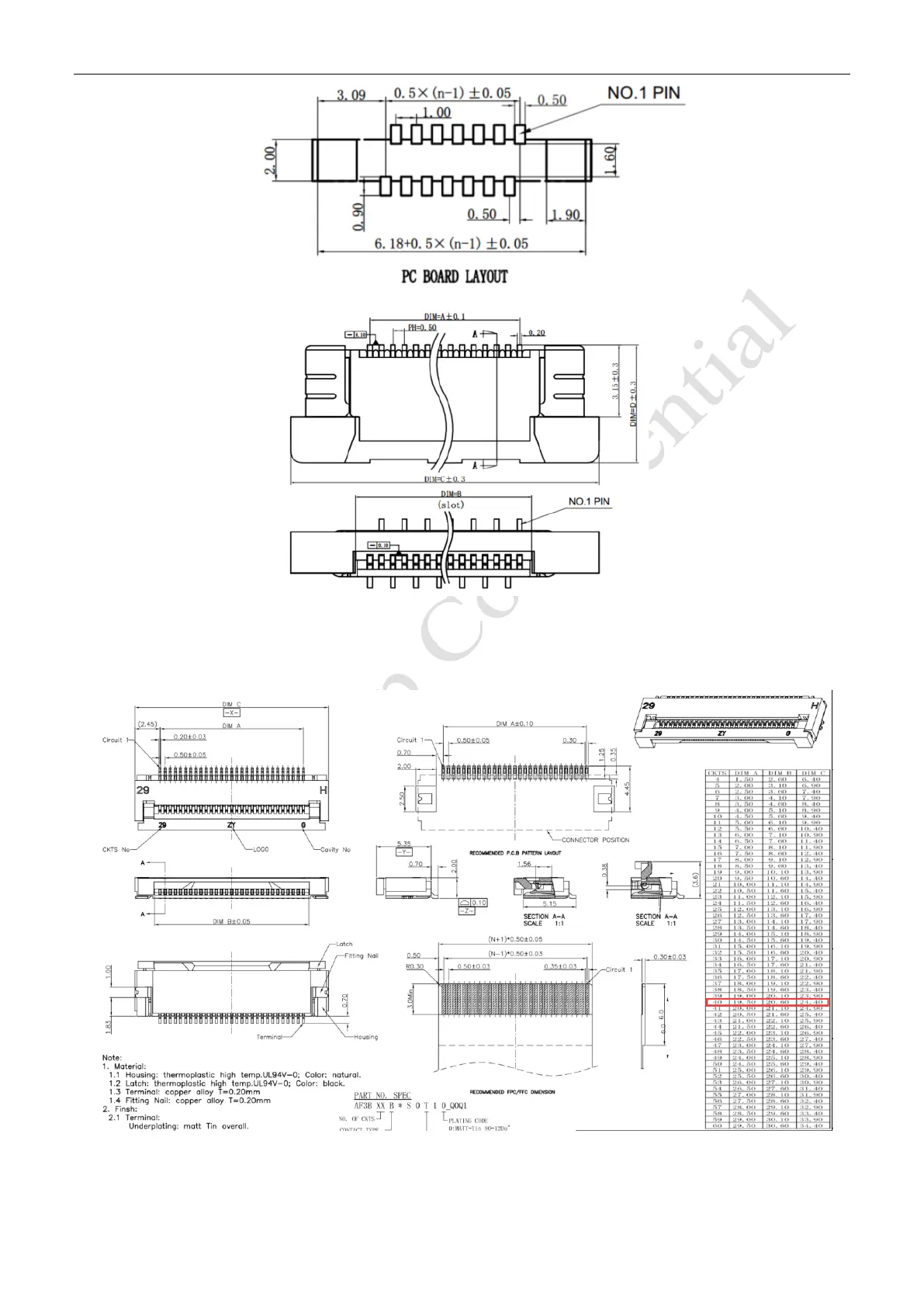

Figure 2-3Vertical Double Row 30 PIN PCB Package with 1mm Pitch
J4700 is a flip 40 PIN FPC Connectors, with 0.2mm pins and 0.5mm pitch (corresponding to FPC cable pitch 0.5mm,
40pin), the dimensions are as follows:
Figure 2-4 Flip and 0.5mm Pitch and 40 PIN FPC PCB Package
To Next Page
