100 Rockwell Automation Publication 1766-UM001O-EN-P - September 2021
Chapter 5 LCD and Keypad

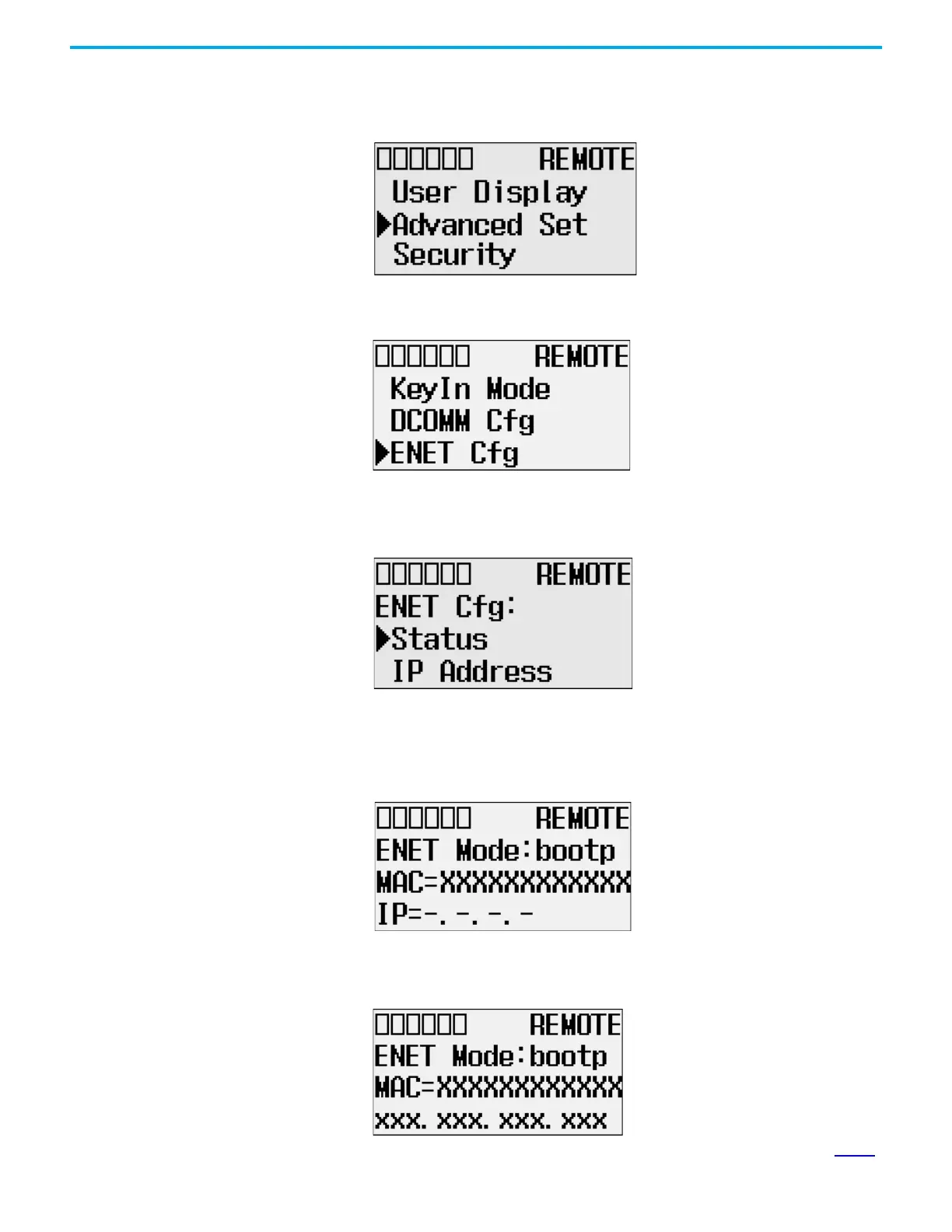

1. On the Main Menu screen, select Advanced Set by using the Up and
Down keys on the LCD keypad, as shown. If the menu items does not
display on the Main Menu screen as shown, scroll down the screen by
pressing the Down key.
Note: The Security menu is available in firmware revision 21.000 or later.
2. Press OK on the LCD keypad. The Advanced Set Menu screen displays, as
shown.
3. If ENET Cfg is selected, press OK. Otherwise, select ENET Cfg using the
Up and Down keys, and then press OK.
4. The Ethernet Configuration screen displays. Press OK on the LCD Status
menu.
5. When an IP address is not yet assigned to your controller, only the MAC
address that is assigned to your controller, represented as
XXXXXXXXXXXX below, displays. A MAC address is a 12-digit
hexadecimal number. Your controller ships with a unique MAC address
assigned in the factory. You can identify the MAC address of your
controller by opening the expansion module cover on your controller.
6. When an IP address is assigned to your controller, both the MAC and IP
addresses of your controller display. In this example, the MAC address is
represented as XXXXXXXXXXXX. The IP address is represented as
xxx.xxx.xxx.xxx, where each xxx is a decimal number between 0…255.
7. Press ESC to return to the Advanced Set Menu screen, as shown in step 2
.
