236 Rockwell Automation Publication 1766-UM001O-EN-P - September 2021
Appendix F MicroLogix 1400 Distributed Network Protocol

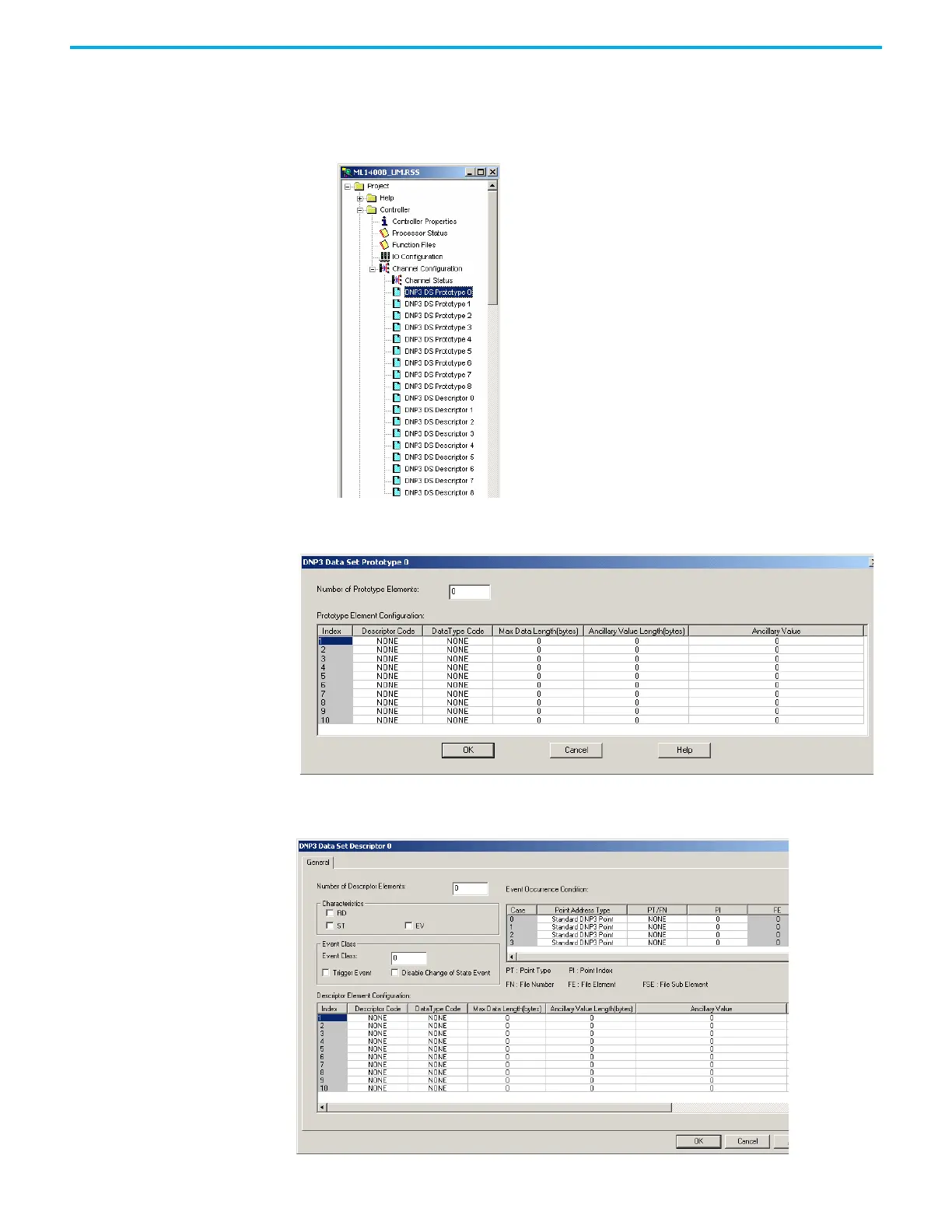

Once the Data-Set Prototypes and Descriptors are configured in the DNP3
Slave Application Layer Configuration of RSLogix 500/RSLogix Micro
software, you can see the DNP3 DS Prototype X and DNP3 DS Descriptor X
trees under the Channel Configuration of RSLogix 500/RSLogix Micro
software, where X is the element numbers of each Prototype or Descriptor.
For DNP3 DS Prototype X, you can configure the controller to construct the
Data-Set Prototype objects.
For DNP3 DS Descriptor X, you can configure the controller to construct the
Data-Set Descriptor objects.
